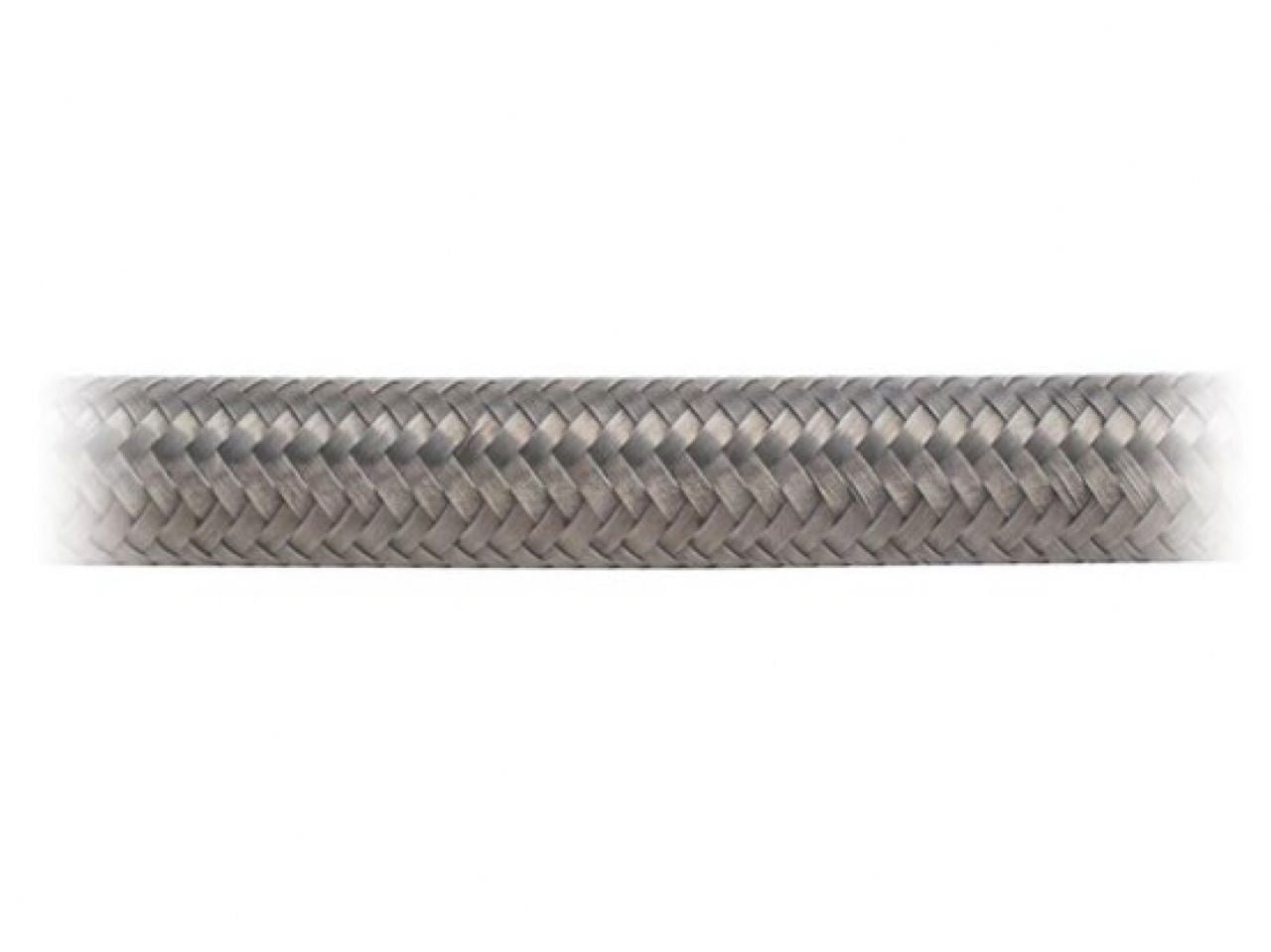

Earl's 10 FT. -12 Auto-Flex
A high quality stainless steel braided hose at a price competitive with the imports. Earl's AUTO-FLEX stainless steel braid-protected synthetic rubber hose is manufactured to our specifications in the U.S.A. Earl's AUTO-FLEX hose features a recommended temperature range and maximum operating pressure equal to our racing premium quality Perform-O-Flex hose...at a much better price. A partial coverage textile inner braid is imbedded in the liner during manufacture. The hose is finished with a full coverage stainless steel braid which is bonded to the reinforced liner. The liner is known as H.T.E ( not to be confused with PTFE ) and it is the highest quality of synthetic neoprene liner on the market. Continuous use temperature rating is - 40 to + 350 degrees F. Auto-Flex hose is intended for use with Swivel-Seal, Auto-Fit and Auto-Crimp hose ends only. No other Earl's hose ends are intended for use with Auto-Flex hose. The use of other manufacturers hose ends is also not recommended with this hose as it does not work with lower quality import fittings. PSI rating is determined by many factors including hose end in use and assembly method.
Features:
- Clean and Fast Flowing
- Textile Braid In Hose Liner
- Made in the USA
- Competitive Price
- Protects Synthetic Rubber Hose
- Stainless Braid
Specs
Compatible Hose Ends: Auto-Crimp,Auto-Fit,Econ-O-Fit,Swivel-Seal
Fluid Type: Automatic Transmission Fluid,Coolant,Diesel,E85,Methanol/Alcohol,Oil,Pump Gas,Race Gas
Hose Length: 10 Feet
Hose Outer Material: STAINLESS STEEL
Hose Size:12 AN
I.D. to O.D. Concentricity Range: .020"
Inside Diameter: .665" TO .721"
Max Vacuum: 27 in Hg
Max Working PSI: 500 PSI
Min. Bend Radius: 4.5"
Outside Diameter: .915" TO .961"
Product Type: Hose
Submersible in Fuel: No
Temperature Range: -40° to 350° F
Earl's 10 FT. -12 Auto-Flex
Sale price$139.95 USD
