Earl's 10 FT. -4 AUTO-FLEX

SKU: 05YKY | MPN:  310004ERL
Sale price$89.31 USD
Sold out

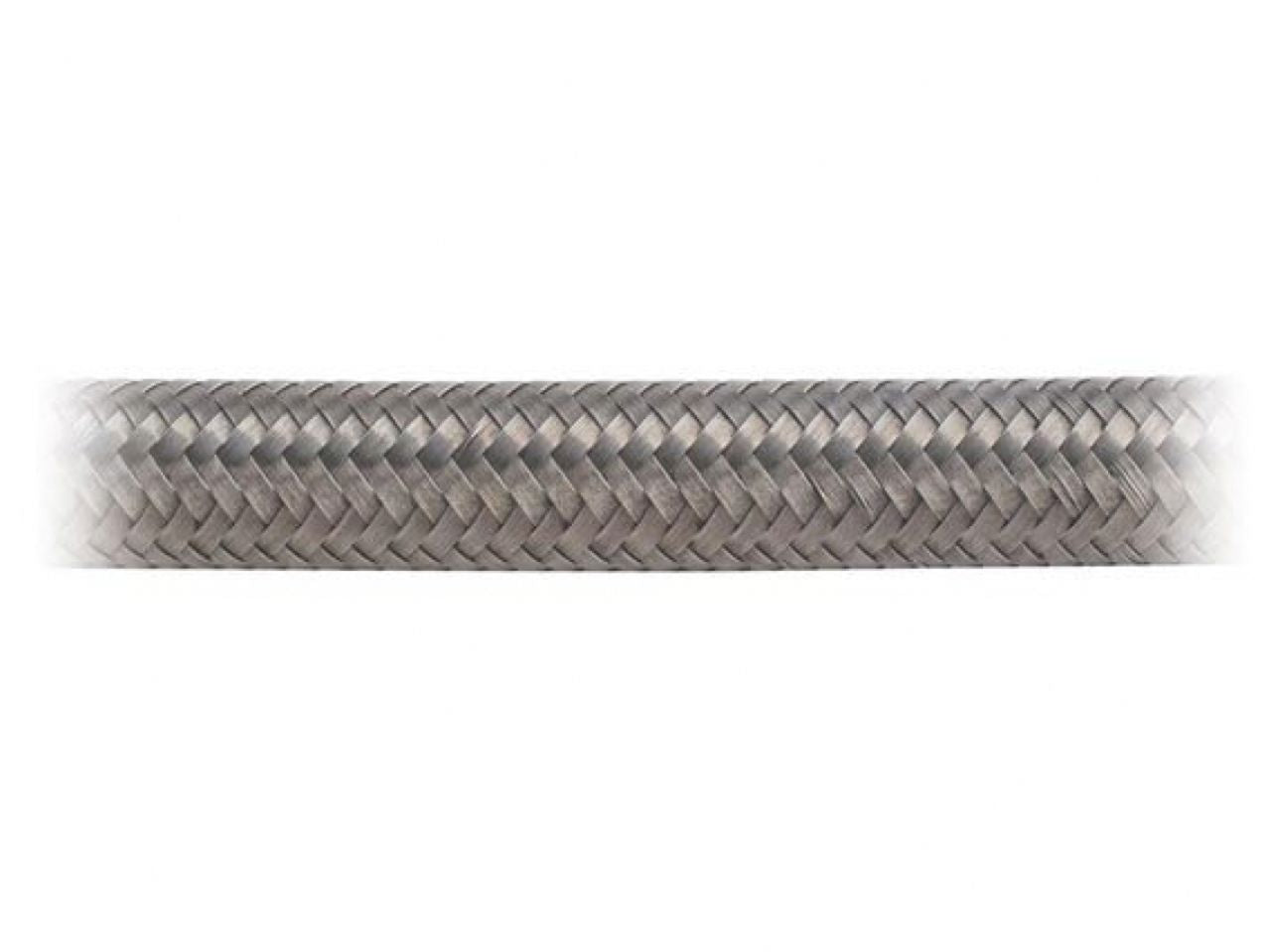

EARLS AUTO-FLEX HOSE - SIZE 4 - 10 FT. LENGTH

Tough Stainless Steel Wire Braid-Protected Synthetic Rubber Hose. Easy to Cut and Assemble. Accepts Swivel-Seal, Auto Fit & Auto-Crimp Hose Ends.

A high quality stainless steel braided hose at a price competitive with the imports. Earl's AUTO-FLEX stainless steel braid-protected synthetic rubber hose is manufactured to our specifications in the U.S.A. Earl's AUTO-FLEX hose features a recommended temperature range and maximum operating pressure equal to our racing premium quality Perform-O-Flex hose...at a much better price. A partial coverage textile inner braid is imbedded in the liner during manufacture. The hose is finished with a full coverage stainless steel braid which is bonded to the reinforced liner. The liner is known as H.T.E ( not to be confused with PTFE ) and it is the highest quality of synthetic neoprene liner on the market. Continuous use temperature rating is - 40 to + 350 degrees F. Auto-Flex hose is intended for use with Swivel-Seal, Auto-Fit and Auto-Crimp hose ends only. No other Earl's hose ends are intended for use with Auto-Flex hose. The use of other manufacturers hose ends is also not recommended with this hose as it does not work with lower quality import fittings. PSI rating is determined by many factors including hose end in use and assembly method.

Features:

  • Textile Braid In Hose Liner
  • Clean and Fast Flowing
  • Made in the USA
  • Competitive Price
  • Protects Synthetic Rubber Hose
  • Stainless Braid

SPECS:

Brand: Earls
Compatible Hose Ends: Auto-Crimp
Auto-Fit
Econ-O-Fit
Swivel-Seal
Fluid Type: Automatic Transmission Fluid
Coolant
Diesel
E85
Methanol/Alcohol
Oil
Pump Gas
Race Gas
Hose Length: 10 Feet
Hose Outer Material: STAINLESS STEEL
Hose Size: 4 AN
I.D. to O.D. Concentricity Range: .020"
Inside Diameter: .204" TO .244"
Max Vacuum: 27 in Hg
Max Working PSI: 1500 PSI
Min. Bend Radius: 2"
Outside Diameter: .418" TO .461"
Product Type: Hose
Submersible in Fuel No
Temperature Range -40° to 350° F
