Earl's 6 FT. -10 AUTO-FLEX

SKU: 004NP | MPN:  306010ERL
Sale price$75.78 USD
Sold out

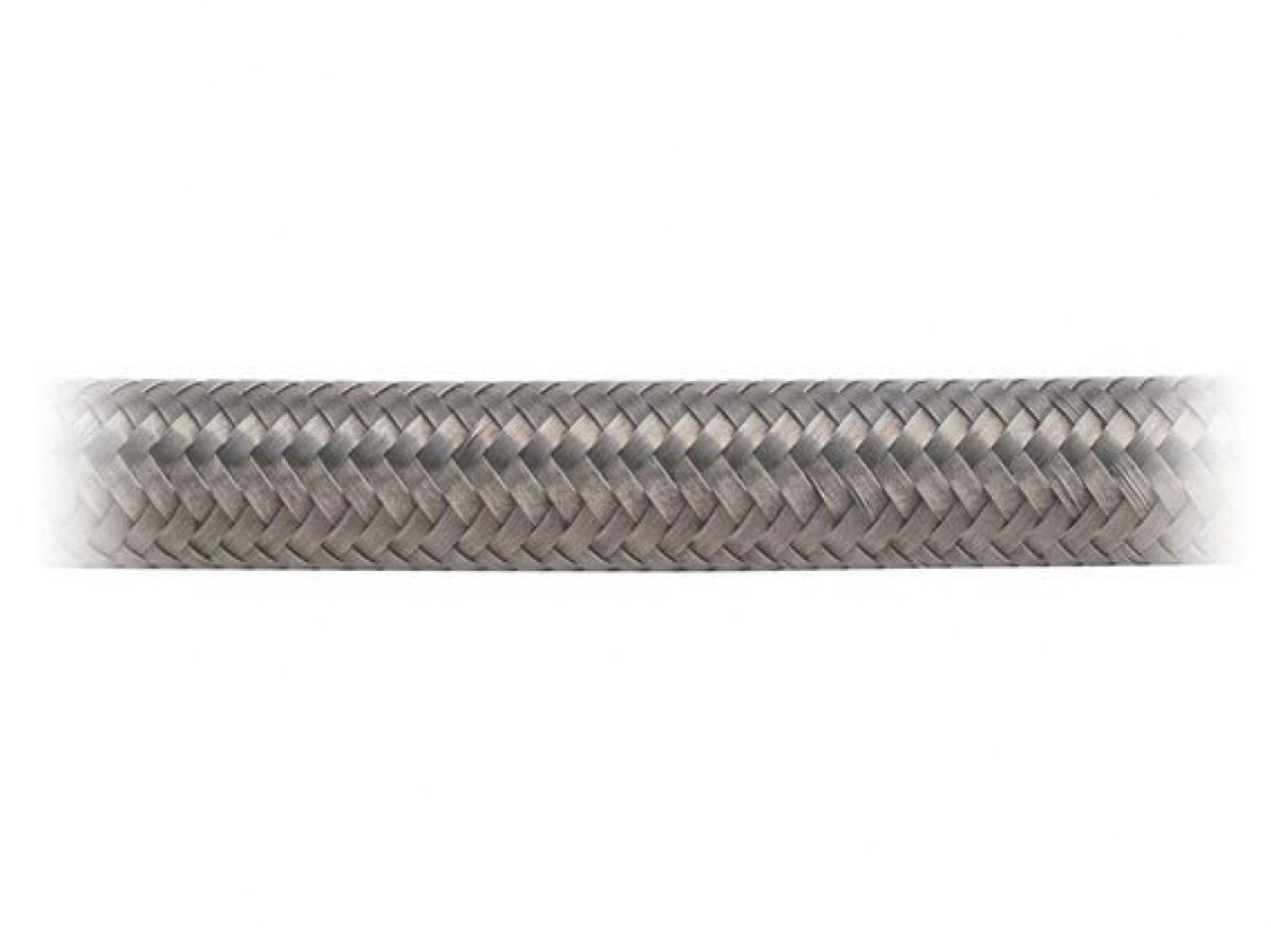

A high quality stainless steel braided hose at a price competitive with the imports. Earl's AUTO-FLEX stainless steel braid-protected synthetic rubber hose is manufactured to our specifications in the U.S.A. Earl's AUTO-FLEX hose features a recommended temperature range and maximum operating pressure equal to our racing premium quality Perform-O-Flex hose...at a much better price. A partial coverage textile inner braid is imbedded in the liner during manufacture. The hose is finished with a full coverage stainless steel braid which is bonded to the reinforced liner. The liner is known as H.T.E ( not to be confused with PTFE ) and it is the highest quality of synthetic neoprene liner on the market. Continuous use temperature rating is - 40 to + 350 degrees F. Auto-Flex hose is intended for use with Swivel-Seal, Auto-Fit and Auto-Crimp hose ends only. No other Earl's hose ends are intended for use with Auto-Flex hose. The use of other manufacturers hose ends is also not recommended with this hose as it does not work with lower quality import fittings. PSI rating is determined by many factors including hose end in use and assembly method.

Features:

  • Clean and Fast Flowing
  • Textile Braid In Hose Liner
  • Made in the USA
  • Competitive Price
  • Protects Synthetic Rubber Hose
  • Stainless Braid
    Compatible Hose Ends: Auto-Crimp
    Auto-Fit
    Econ-O-Fit
    Swivel-Seal
    Fluid Type: Automatic Transmission Fluid
    Coolant
    Diesel
    E85
    Methanol/Alcohol
    Oil
    Pump Gas
    Race Gas
    Hose Length: 6 Feet
    Hose Outer Material: STAINLESS STEEL
    Hose Size: 10 AN
    I.D. to O.D. Concentricity Range: .020"
    Inside Diameter: .539" TO .595"
    Max Vacuum: 27 in Hg
    Max Working PSI: 750 PSI
    Min. Bend Radius: 4"
    Outside Diameter: .774" TO .820"
    Product Type: Hose
    Submersible in Fuel: No
    Temperature Range: -40° to 350° F
