Earl's -4 AUTO-FLEX HOSE BULK

SKU: 002KJ | MPN:  300004ERL
Sale price$9.90 USD
Sold out

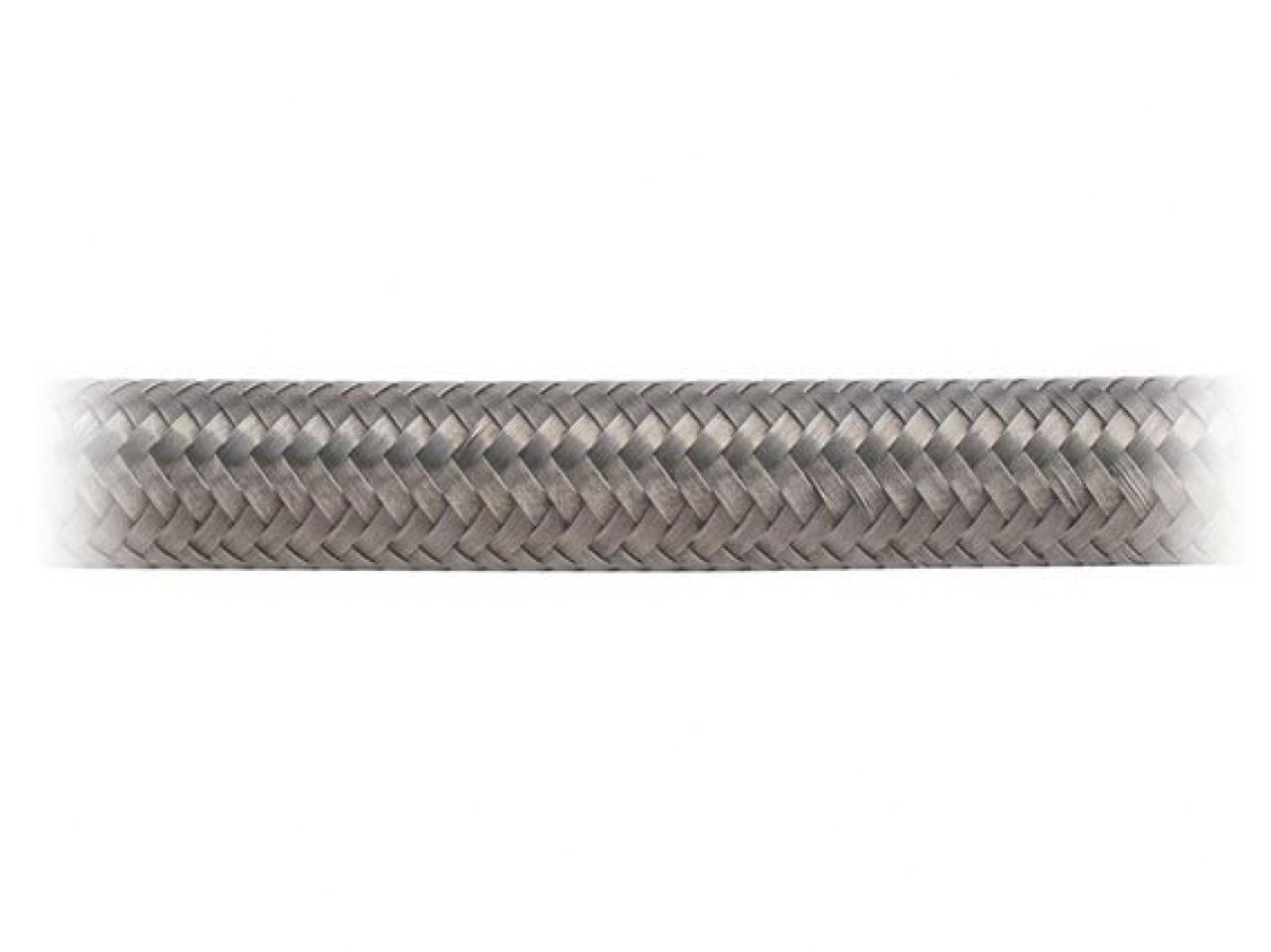

Earls Auto-Flex Hose - Size 4 - Sold by the Foot in Continuous Length Up To 50'

Tough Stainless Steel Wire Braid-Protected Synthetic Rubber Hose. Easy to Cut and Assemble. Accepts Swivel-Seal, Auto Fit & Auto-Crimp Hose Ends.

A high quality stainless steel braided hose at a price competitive with the imports. Earl's AUTO-FLEX stainless steel braid-protected synthetic rubber hose is manufactured to our specifications in the U.S.A. Earl's AUTO-FLEX hose features a recommended temperature range and maximum operating pressure equal to our racing premium quality Perform-O-Flex hose...at a much better price. A partial coverage textile inner braid is imbedded in the liner during manufacture. The hose is finished with a full coverage stainless steel braid which is bonded to the reinforced liner. The liner is known as H.T.E ( not to be confused with PTFE ) and it is the highest quality of synthetic neoprene liner on the market. Continuous use temperature rating is - 40 to + 350 degrees F. Auto-Flex hose is intended for use with Swivel-Seal, Auto-Fit and Auto-Crimp hose ends only. No other Earl's hose ends are intended for use with Auto-Flex hose. The use of other manufacturers hose ends is also not recommended with this hose as it does not work with lower quality import fittings. PSI rating is determined by many factors including hose end in use and assembly method.

Features:

  • Stainless Braid
  • Protects Synthetic Rubber Hose
  • Competitive Price
  • Made in the USA
  • Textile Braid Embedded in Hose Liner
  • Clean and Fast Flowing
  • Sold per foot

Specification

Compatible Hose Ends Auto-Crimp
  Auto-Fit
  Econ-O-Fit
  Swivel-Seal
Fluid Type Automatic Transmission Fluid
  Coolant
  Diesel
  E85
  Methanol/Alcohol
  Oil
  Pump Gas
  Race Gas
Hose Length BULK
Hose Outer Material STAINLESS STEEL
Hose Size 4 AN
I.D. to O.D. Concentricity Range .020"
Inside Diameter .204" TO .244"
Max Vacuum 27 in Hg
Max Working Pressure 1500 PSI
Max Working PSI 1500 PSI
Maximum Continuous Length 50 Feet
Min. Bend Radius 2"
Outside Diameter .418" TO .461"
Product Type Hose
Submersible in Fuel No
Temperature Range -40° to 350° F
