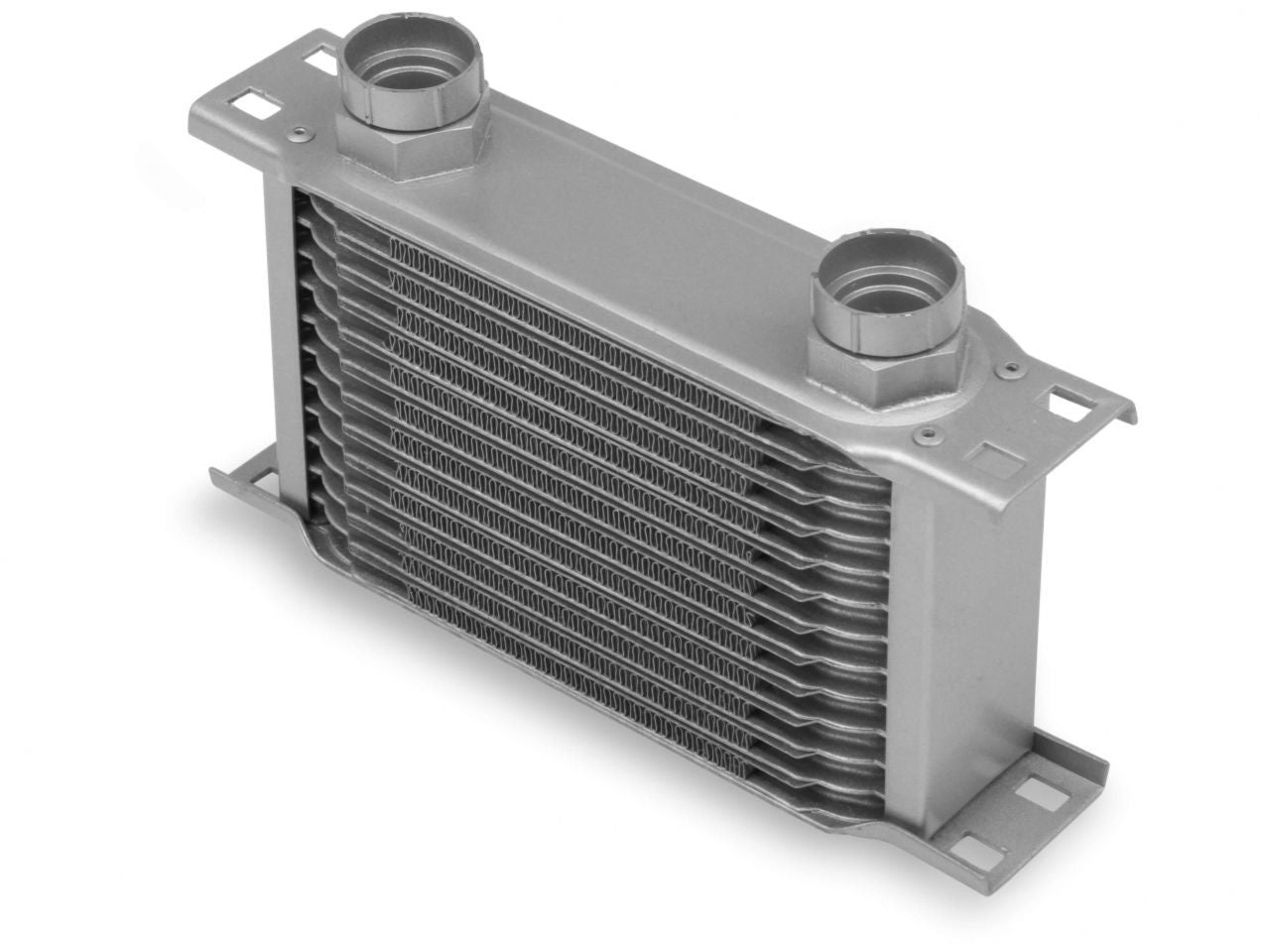

Earl's 13 Row Cooler Core Narrow Grey
13 Row Oil Cooler Core Grey
Tow vehicles, motor homes, passenger cars and even motorcycles can realize extended engine and/or transmission efficiency and life with an Earl's TEMP-A-CURE oil cooler. Racing cars have always required oil coolers. This type of cooler with its internal turbulator plates and dense air fins provides maximum liquid side and air side surface area. The large collector tanks ensure minimum flow restriction. All of this adds up to the most thermally efficient liquid-to-air heat exchanger available. Earls Oil Coolers offer more cooling per square inch than your traditional coil and fin coolers. This is the real deal, and not a toy cooler like the competition's.
Features:
- Manufactured in the U.S.A. using the latest vacuum brazing technology.
- Internal turbulator plates increase both thermal efficiency and mechanical strength resulting in the most efficient, smallest practical package.
- Manufactured in Aluminum for the fastest possible heat transfer.
- Inlet and outlet fittings O-ring female bosses -10 AN port ( 7/8-14)
- Designed for wide ranges of oils and oil flows with air speeds encountered in motorsports and highway use.
- Available in three widths, Narrow, Wide , Extra Wide.
- Every cooler is pressure checked to 175 psi.
- Engineering samples are burst tested to 350 psi.
Specifications
Application:
Differential Cooler
Power Steering Cooler
Transmission Cooler
Valve Spring Cooler
Body Width (Overall): 8.250"
Brackets Included: No
Construction: Stacked Plate - Brazed
Cooler Fittings:
585106ERL
585108ERL
585110ERL
585112ERL
Cooler Fittings Included: No
Finish: Grey
Fitting Centers: 5.125"
Height: 4.000"
Material: Aluminum
Mounting Brackets: 1302ERL
Port Size: 7/8-14 Female (-10 O-Ring Boss)
Product Line: Temp-A-Cure
Product Type: Oil Cooler
Rows: 13 Rows
Thickness: 2.000"
Width: Narrow Cooler
Width Between Tanks: 4.000"
