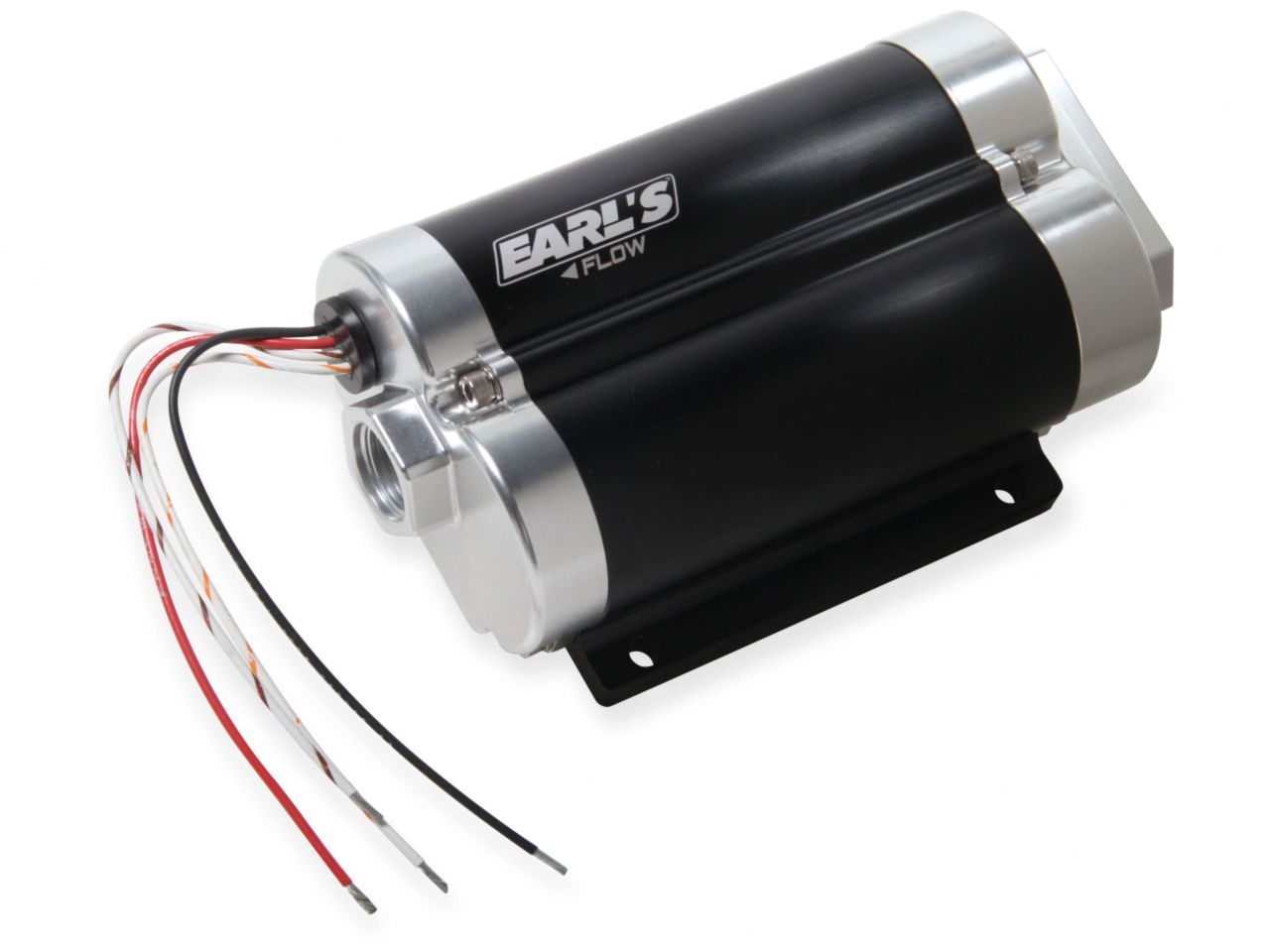

Earl's 200 GPH Dual In-Line Billet Fuel Pump (Dual Inlet)

200 GPH Dual In-Line Billet Fuel Pump (Dual Inlet)

Need to feed some serious horsepower? Have a nitrous or forced induction powerplant that also sees street duty? Earl's Dual in-line fuel pumps are the answer! The patent pending twin pump design allows you to use one pump for cruising and both pumps when you activate the nitrous switch or start building boost! By staging the second pump, you eliminate the unnecessary recirculating and heating of extra fuel which can lead to poor performance and hot fuel issues. As an added benefit for the hard core enthusiasts that run events like Hot Rod Power Tour and the Baja 1000, the extra pump offers the peace of mind that you will always finish what you start! For hard core race vehicles, both pumps can be wired for full time duty to get maximum performance and are proven with 18.5 volt compatibility at pressures up to 80 psi. At only 5.1 lbs, they weigh half a pound less than competitive 1000+ horsepower pumps yet have twice the features.

Features:

• Billet aluminum construction for durability and good looks

• 10 AN O-ring inlet/outlet for high flow and superior sealing

• Excellent for use with carbureted or EFI applications

• Fully submersible in-tank for custom applications, space savings and less plumbing

• Compatible with 12v to 18.5v systems for street or race use

• Compact (7.66” Long x 5” Wide x 2.5” Tall) for easy installation on frame rails or other tight areas

• Twin pump design allows the use of both pumps simultaneously or independently - second pump can be activated on demand for power adders such as nitrous or boost

• Patent pending dual pump technology

• Proven durability beyond 3,000 hours in race gas or diesel fuels

• Weighs only 5.1 lbs.

• Current draw at 43 PSI and 13.5 VDC is 17.2 Amps

• Not designed for use on aircraft of any type.

Specifications

Application: Universal

Emission Code: 5

Forced Induction HP@43PSI: 1400

Forced Induction HP@60PSI: 1200

Forced Induction HP@8PSI: 1600

Free Flow GPH: 200

Fuel System: Carbureted; EFI

Fuel Type: Diesel; Gasoline

GPH@43PSI: 156

GPH@60PSI: 140

GPH@8PSI: 200

Inlet Size: 2 x 10 AN O-Ring - 7/8-14 SAE

LPH@43PSI: 590

LPH@60PSI: 530

LPH@8PSI: 720

Material: Aluminum

Naturally Aspirated HP@43PSI: 1800

Naturally Aspirated HP@60PSI: 1600

Naturally Aspirated HP@8PSI: 2100

Outlet Size: 10 AN O-Ring - 7/8-14 SAE

Product Type: Fuel Pump

Pump Body Color: Black Anodized
