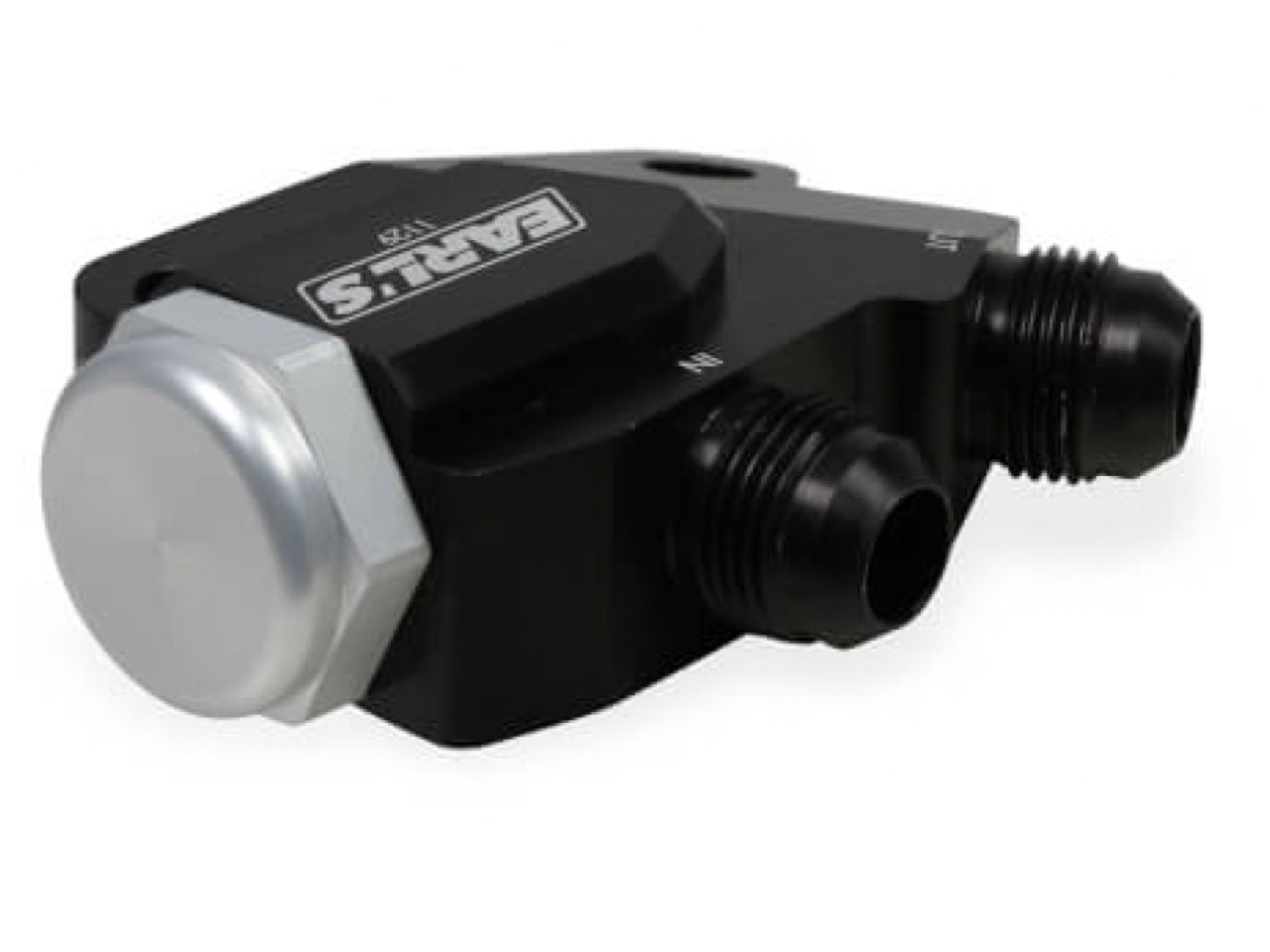

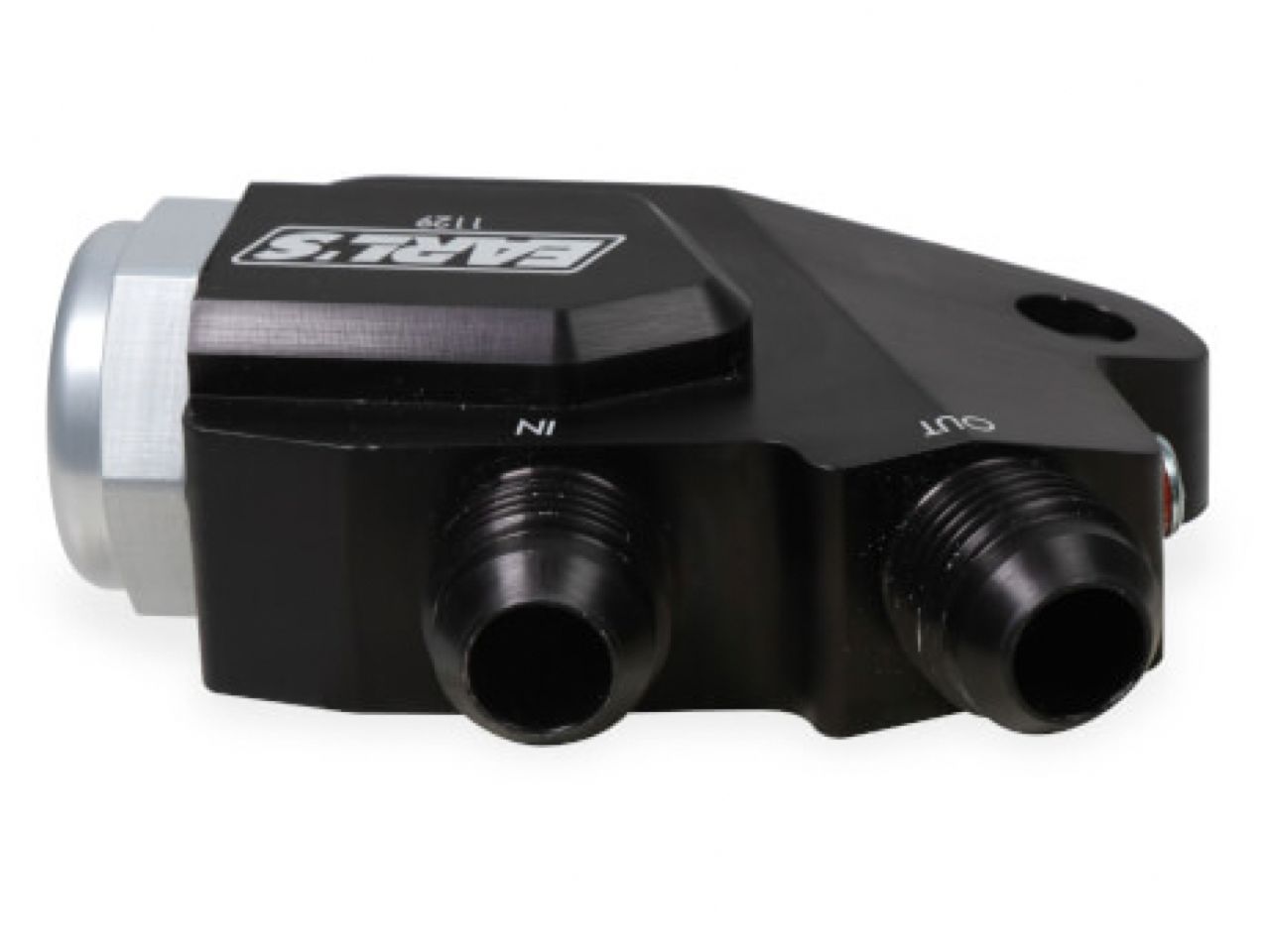

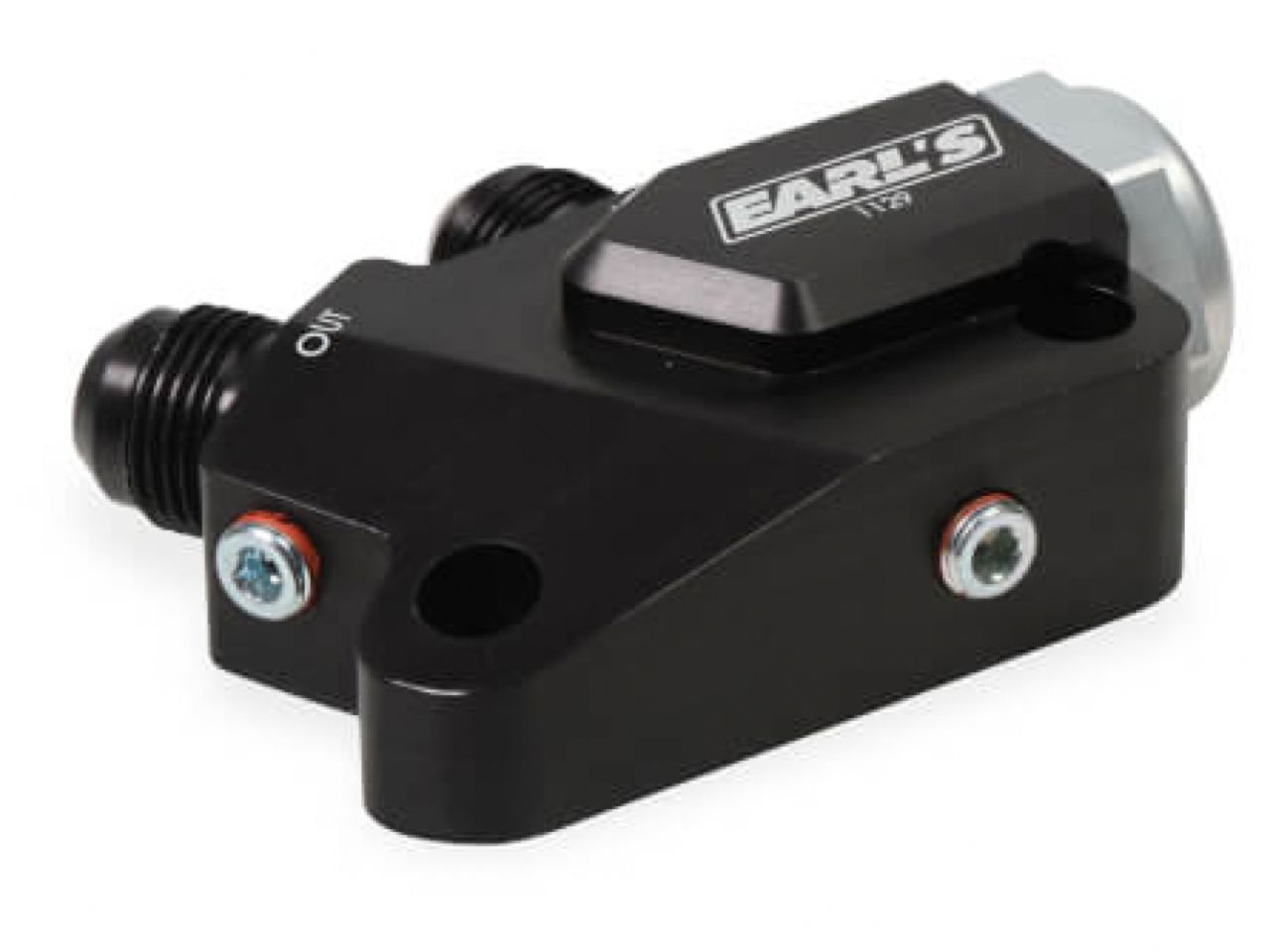

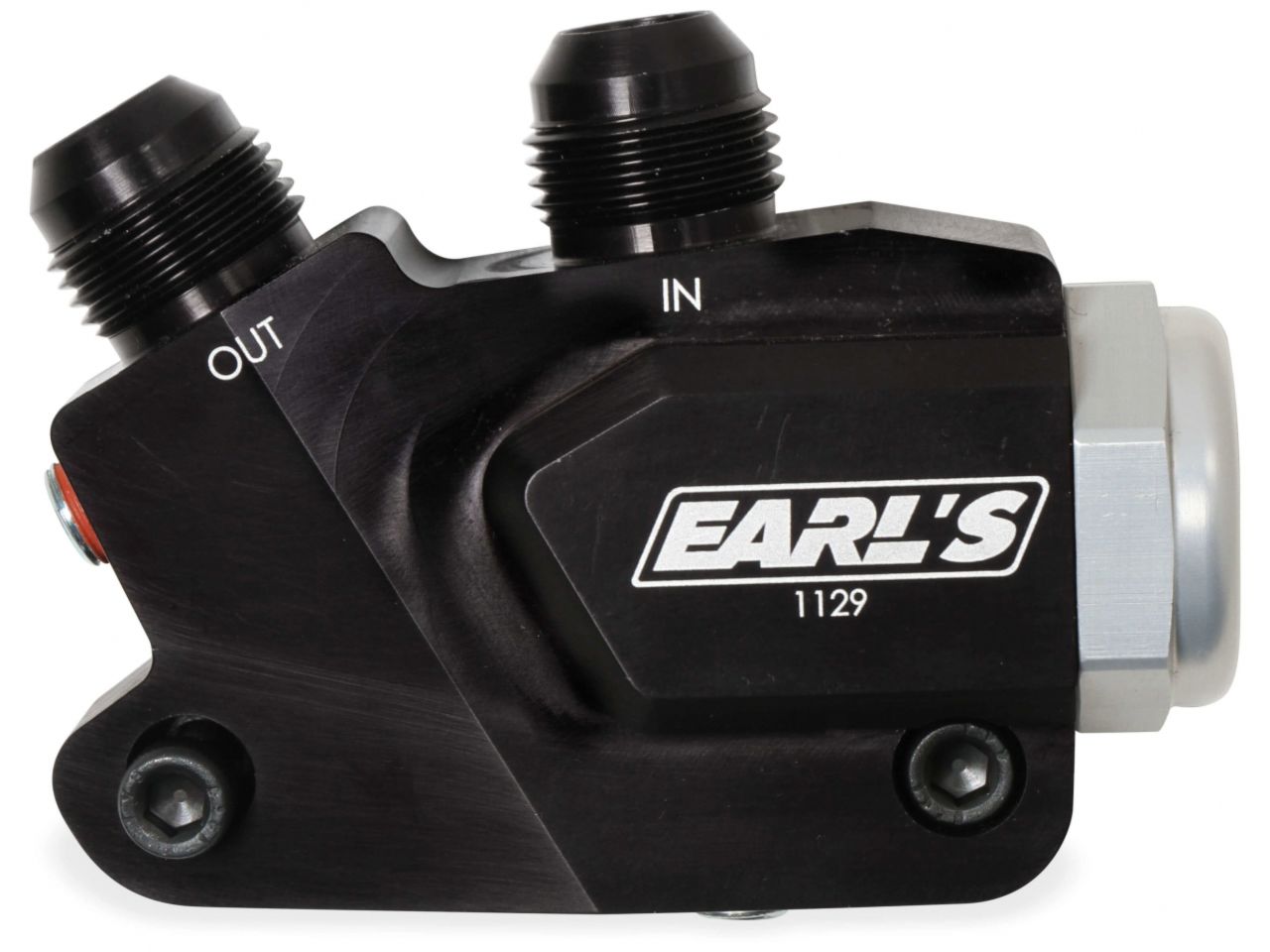

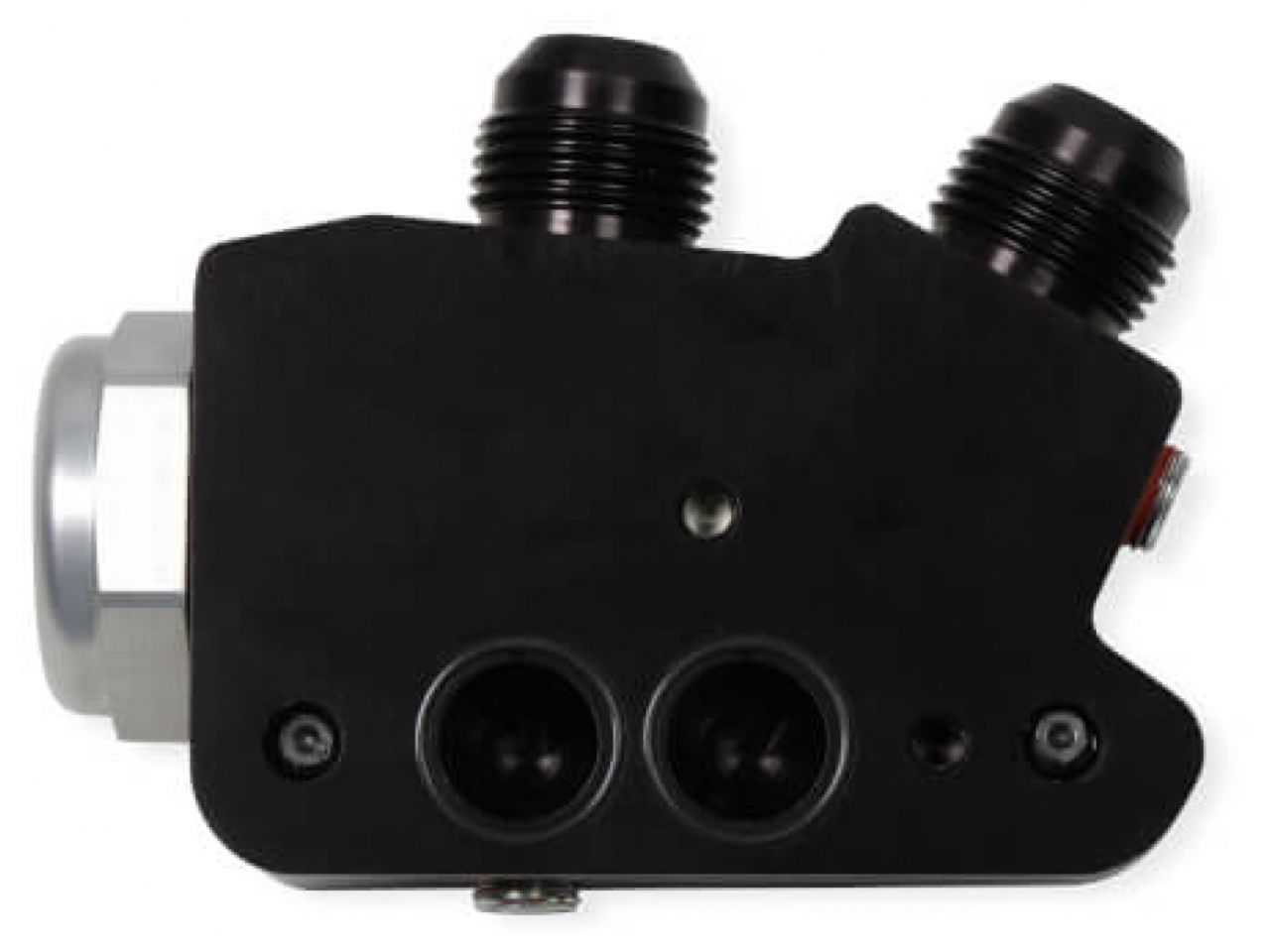

Earl's LT Side Mount Oil Cooler Adapter W/180 Degree Thermostat
Earl's billet side mount oil cooler adapters are the slick way to add an oil cooler to your GM LS or Gen-V LT engine. The slim design of these adapters clear most headers and other components and feature -10 AN male connections. These adapters are black anodized and use O-Ring seals for a leak free installation.
The Gen-V LT adapter fits the OEM Corvette, OEM Truck, and Holley 302-20, 302-22 oil pans only. The Gen-V LT Truck engines require an extra spacer plate (1127ERL) between the oil cooler adapter and the oil pan to provide clearance from the adapter to the engine block.
Choose from a standard adapter or one with a thermostat (180 degree is standard & optional 210 thermostat is available separately).
Features:
- Billet Aluminum w/ Black Anodized Finish

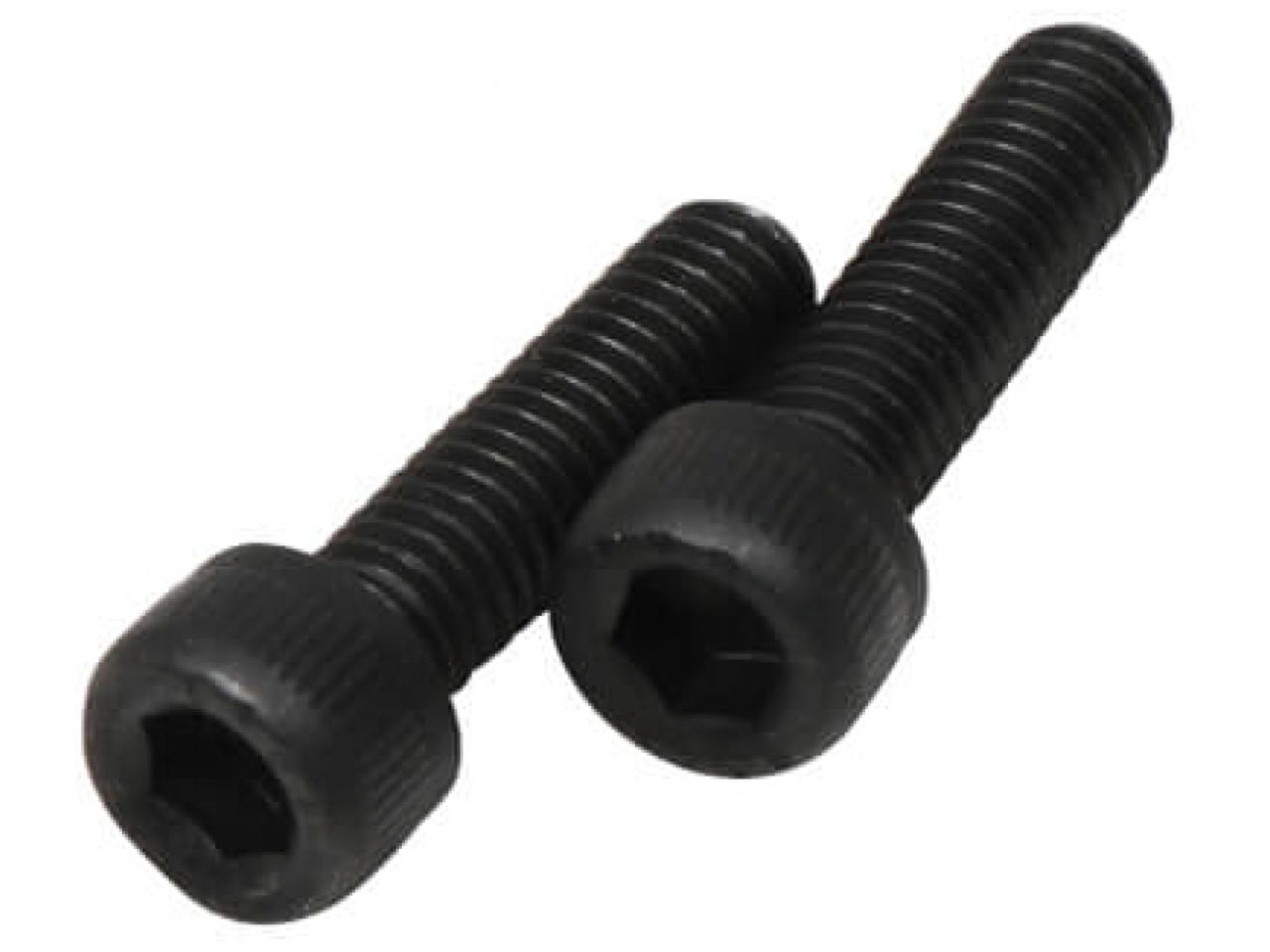

- Includes 0-Ring Seal & Hardware
- (2) 1/8” NPT Accessory Ports
- -10 AN Male Connections
- Available w/ 180 Degree Thermostat
- Add an Earl’s Oil Cooler and AN Plumbing to Complete the Installation
- Fits: OEM Corvette and Truck Oil Pans
- Fits: Holley Oil Pans
Specs
Adapter AN Size ( A ) 10 AN MALE
Adapter AN Size ( B ) 10 AN MALE
Adapter NPT Size ( C ) 1/8 NPT FEMALE
Finish: Anodized Black
Material: Billet Aluminum
Product Type: Oil Cooler
