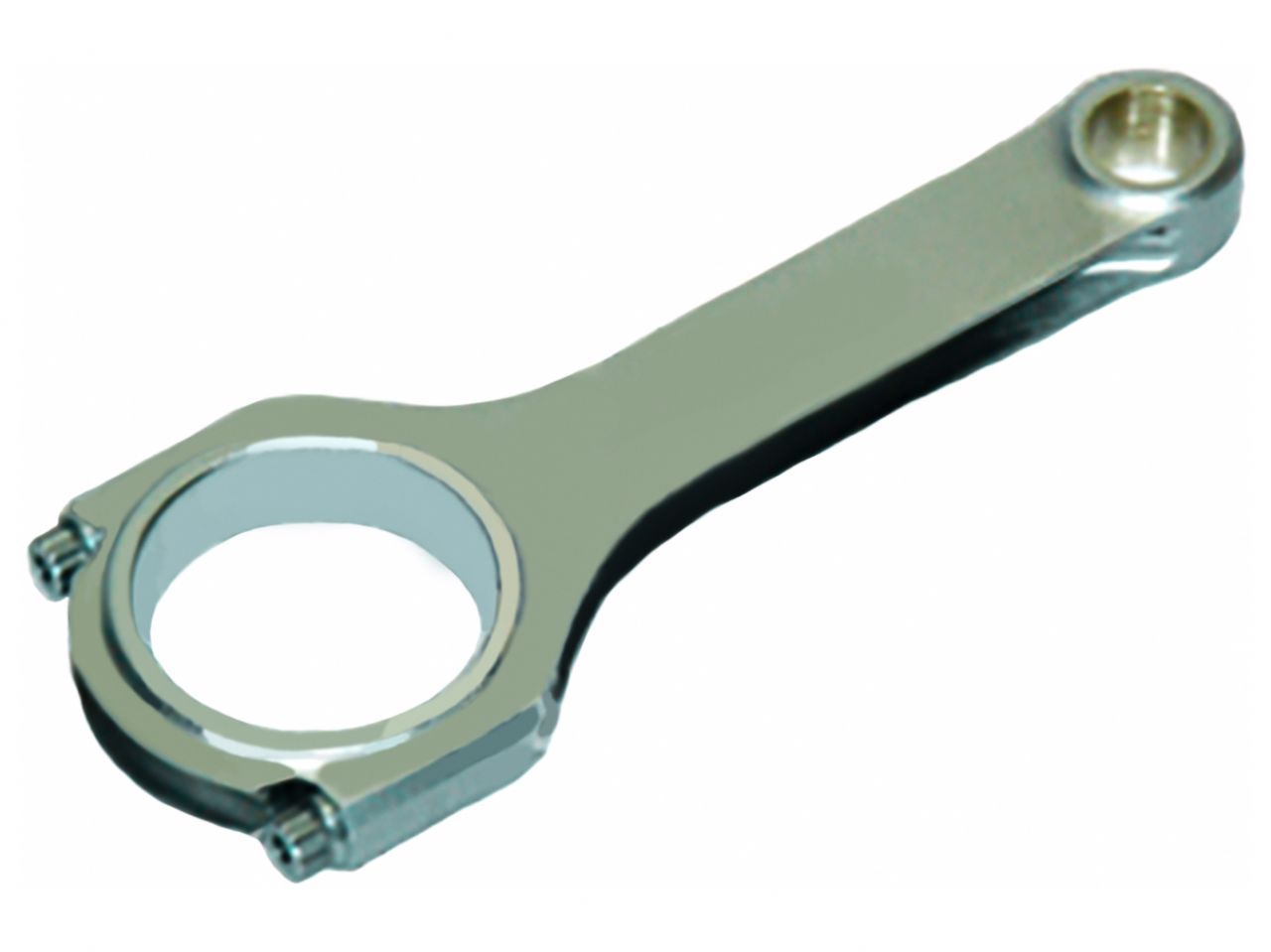

Eagle H-Beam Connecting Rods: Audi/VW, 1.8T, 2.0TSFI (set of 4)
Eagle H-Beam Connecting Rods: Audi/VW, 1.8T, 2.0TSFI (set of 4)
sku: 04PVD | mpn: 5669A3D
Regular price
$408.00
Regular price
$510.00
Sale price
$408.00
Shipping calculated at checkout.
Out of stock
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
H-Beam Connecting Rods
Standard forged 4340 steel H-Beam
Applications
Audi/VW 1.8L turbo
1.8T, 20mm pin
Specifications
| Set of 4 |
| fasteners: 3/8" ARP 2000 |
| torque: 43 ftlbs with ARP moly lube on threads |
| pin fit: bushed |
| recommended up to 900 HP |
Dimensions
| length: 5.669 in. |
| rod journal: 1.8810 in. |
| housing bore: 1.9925 in. |
| pin size: 0.790 in. |
| big end width: 0.9820 in. |
| pin end width: 0.9800 in. |
| thickness above pin: 0.200 in. |
| typical weight: 575g |
