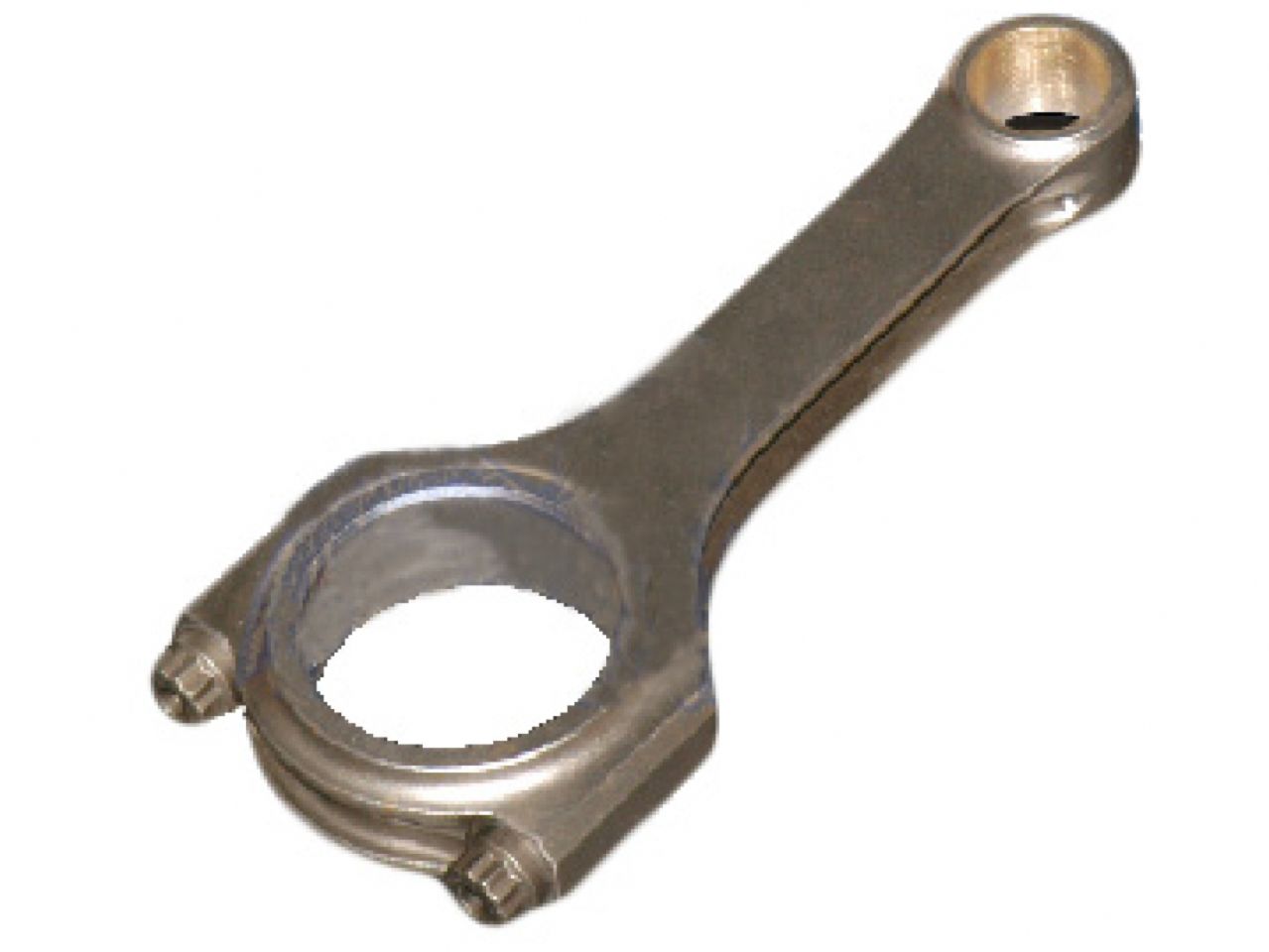

Eagle H-Beam Connecting Rods: Honda, B18/B20 (set of 4)
Eagle H-Beam Connecting Rods: Honda, B18/B20 (set of 4)
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyH-Beam Connecting Rods
Standard forged 4340 steel H-Beam
Applications
Honda/Acura B18 non-VTEC
Honda/Acura B20B/Z non-VTEC
Standard rod for B18A, B18B, B20B, B20Z. Older design used 5/16" bolt (3/8" head) - torque was 28 ftlbs with moly lube.
Specifications
| fasteners: 3/8" ARP 2000 |
| torque: 43 ftlbs with ARP moly lube on threads |
| pin fit: bushed |
Dimensions
| length: 5.394 in. |
| rod journal: 1.7710 in. |
| housing bore: 1.8900 in. |
| pin size: 0.827 in. |
| big end width: 0.9350 in. |
| pin end width: 0.9350 in. |
| thickness above pin: 0.200 in. |
| typical weight: 535g |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1992 - 2001 | Acura | Integra | GS-R |
| 1990 - 2001 | Acura | Integra | LS, GS |
| 1990 - 1998 | Acura | Integra | RS |
| 1995 - 1996 | Acura | Integra | Special Edition |
| 1997 - 2001 | Acura | Integra | Type R |
| 1998 - 2001 | Honda | CR-V | EX |
| 1997 - 2001 | Honda | CR-V | LX |
| 2000 - 2001 | Honda | CR-V | SE |
