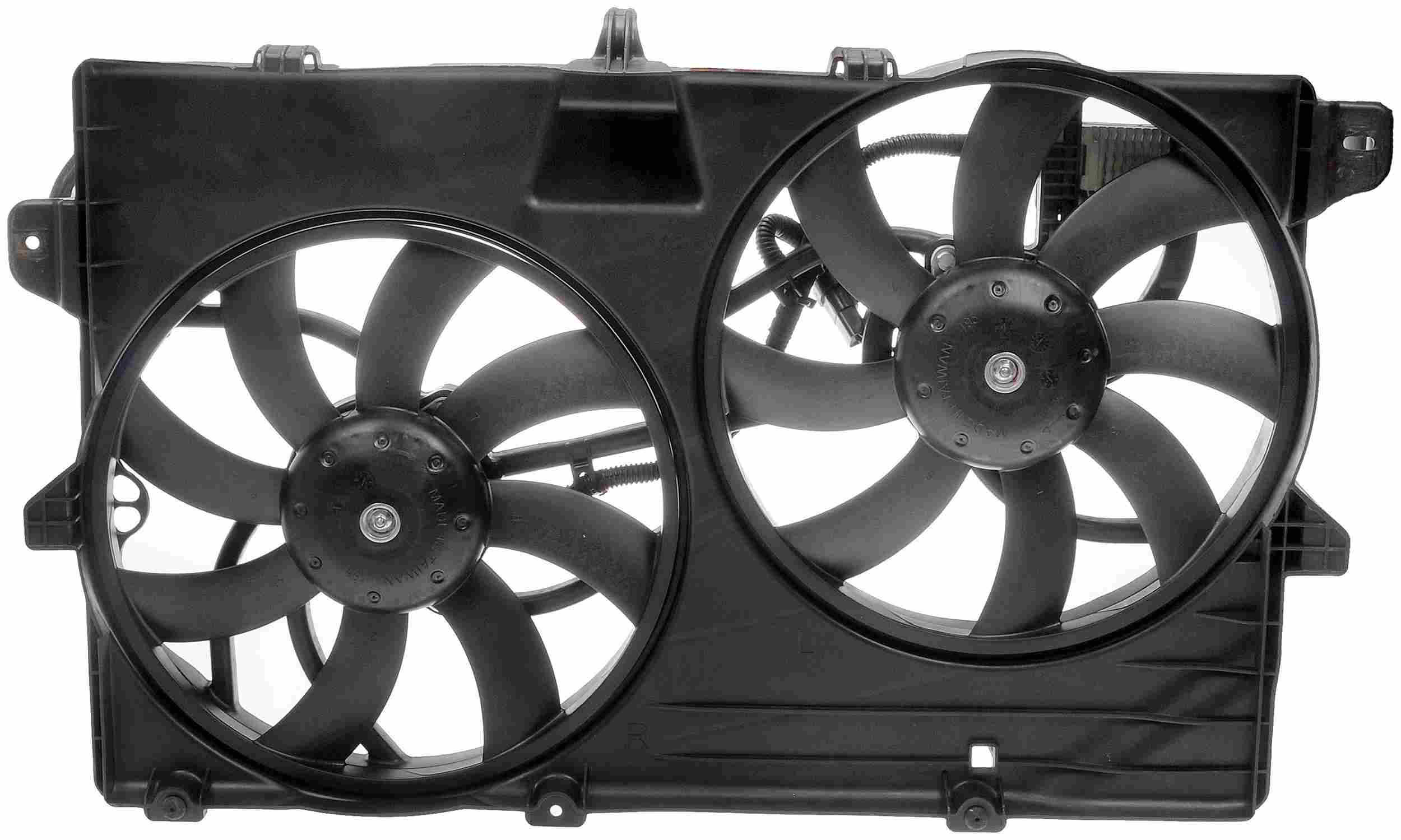

Dorman Dual Fan Assembly With Upgraded Controller

Dorman OE Fix Cooling Fans with enhanced modules outperform the OE by maintaining optimal speed at extreme operating temperatures for longer periods of time. OE designed fans can't handle intense heat and extended use - such as in police and fleet vehicles - and fail above 250 degrees Fahrenheit. Our OE Fix Cooling Fan Assembly is redesigned with military-grade, high-heat-threshold computer control chips. We also redesigned the heat dissipation solution, adding a smart circuit board layout, a more effective heat sink and a thermal pad for faster and more consistent heat dispersion. We even added new software to control fan speeds at the highest temperatures, extending operating performance. All this means that while OE fans are not rated above 250 degrees Fahrenheit, Dorman's OE Fix Cooling Fans operate up to 300 degrees. These assemblies are easy to install, with the motor, shroud, blade and module all included for a complete installation.

-Military-grade components rated up to 300 degrees Fahrenheit; OE only rated to 250 degrees

-Redesigned heat dissipation solution, including a smart circuit board layout, heat sink design and thermal pad, allows faster and more consistent heat dispersion

-Improved software extends operational performance at the highest temperature thresholds

-More durable design increases lifespan by thousands of hours.

Application Summary: Ford Edge 2014-07, Lincoln MKX 2015-07

Product Specifications

• Blade Quantity: 2
• Blade Type: Forward Align Fin
• Color/Finish: Black

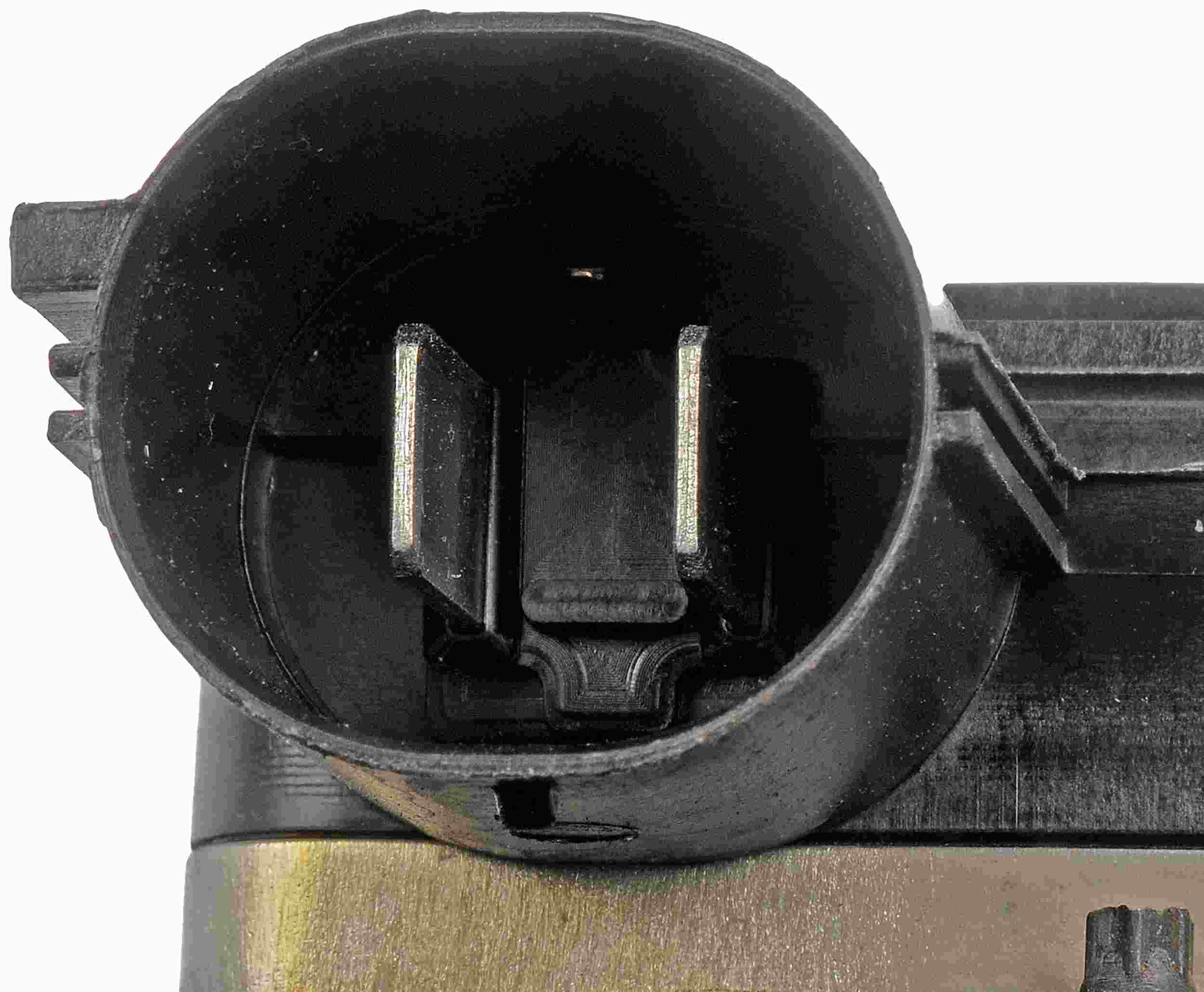

• Connector Gender: Male
• Connector Quantity: 1
• Connector Type: Spade
• Diameter: 250 mm
• Electrical or Mechanical: Electrical
• Fan 1 Blade Quantity: 8
• Fan 1 Diameter: 250 mm
• Fan 2 Blade Quantity: 8
• Fan 2 Diameter: 250 mm
• Fan Blade Material: Plastic
• Fan Quantity: 2
• Fan Rotation: Counterclockwise
• Flat Side On Shaft: Yes
• Grade Type: Standard
• Motor Type: Brushed
• Mounting Bracket Included: No
• Package Contents: Radiator Fan Assembly
• Package Quantity: 1
• Packaging Type: Box
• Shaft Diameter: 5 mm
• Shroud Included: Yes
• Shroud Material: Plastic
• Terminal Gender: Male
• Terminal Quantity: 3
• Voltage: 13.6 V
