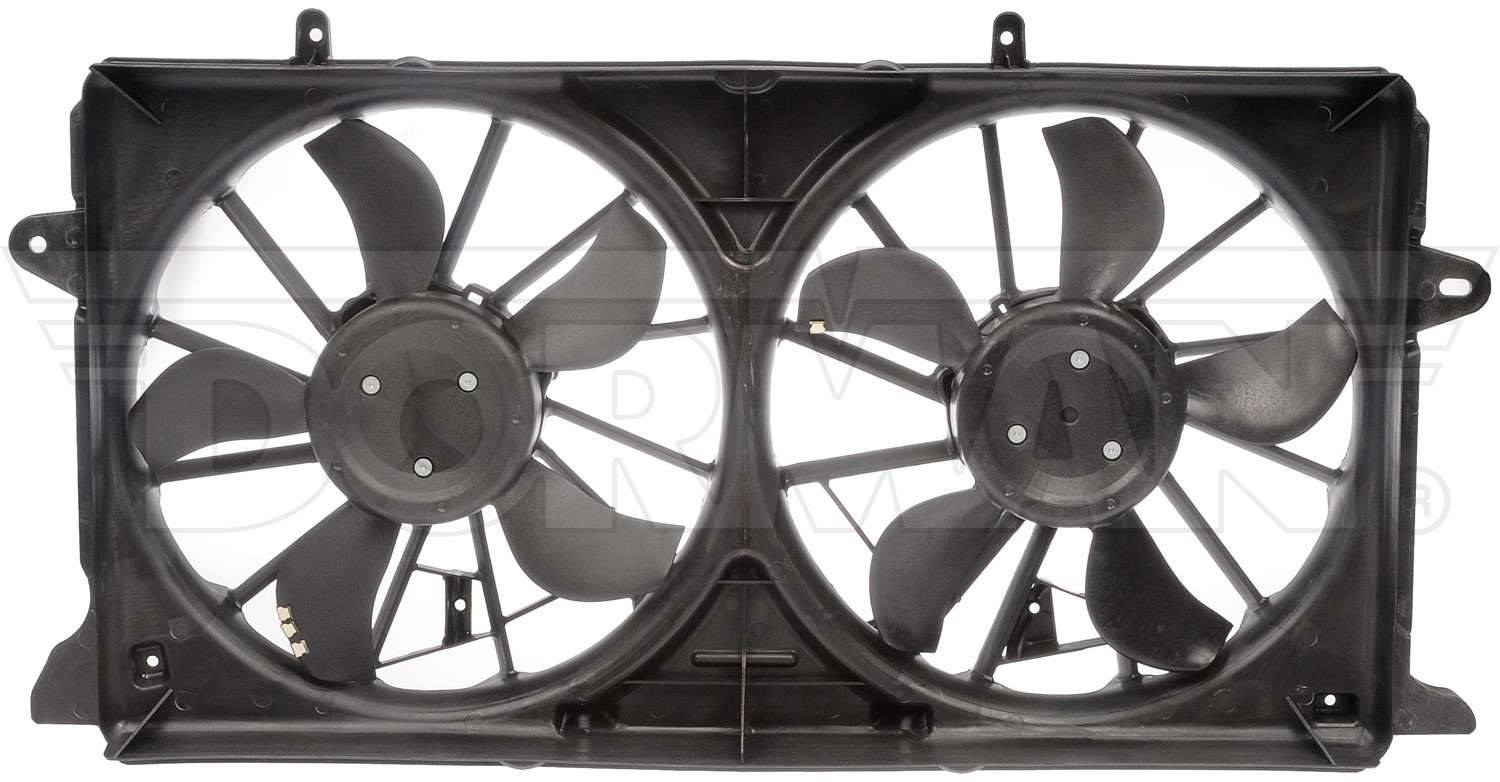

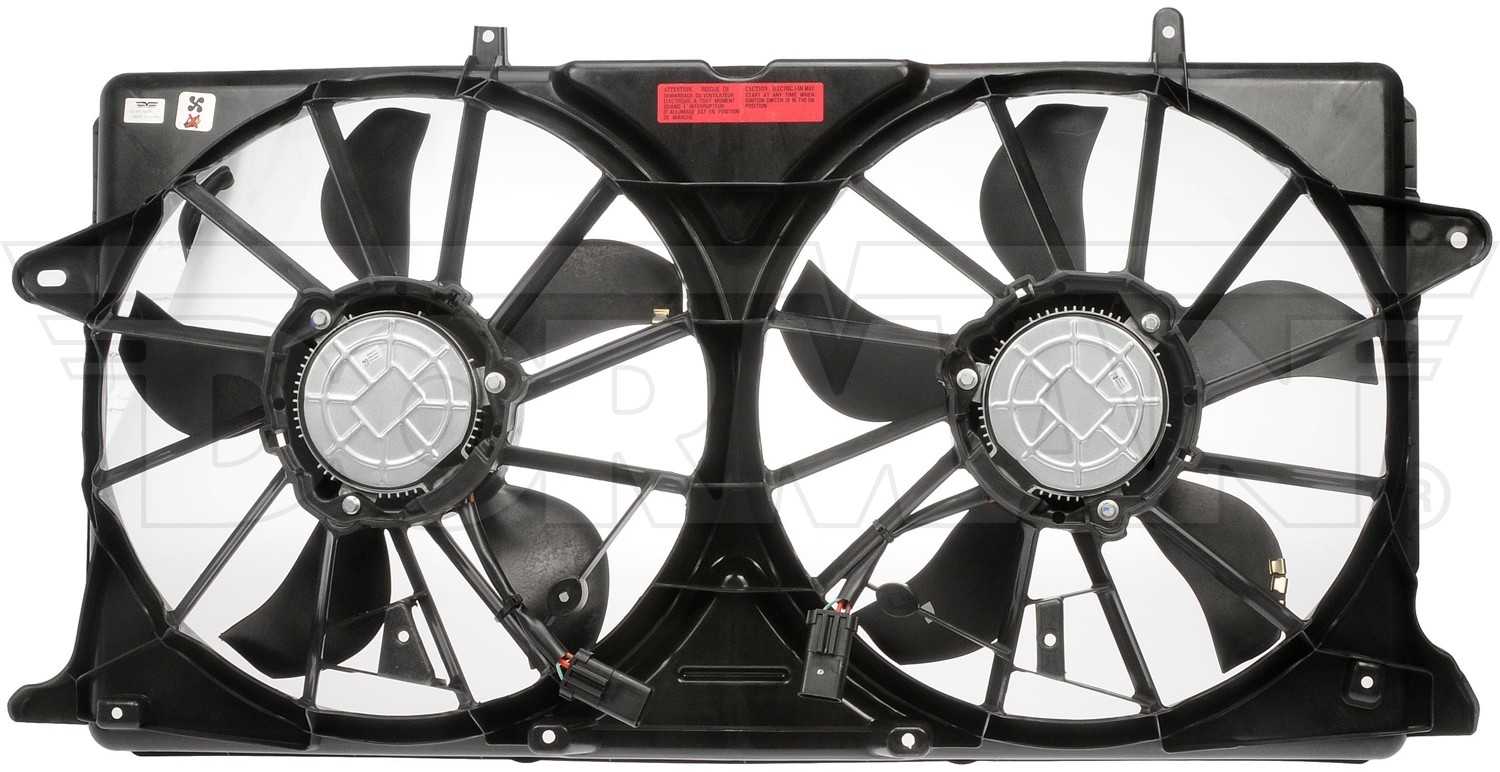

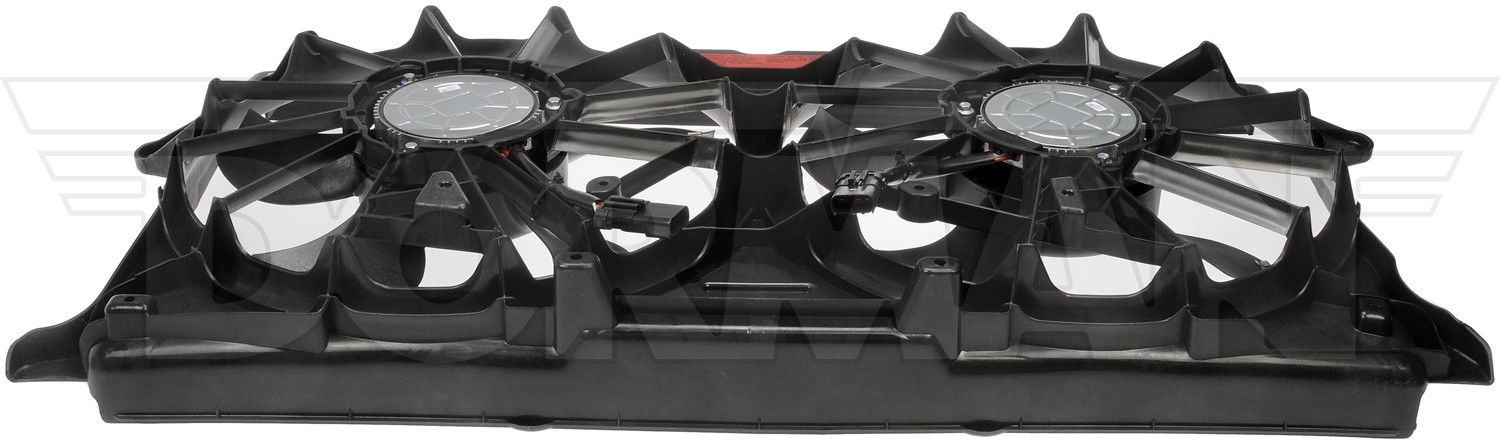

Dorman Dual Fan Assembly With Brushless Motors

This engine cooling fan assembly is precision-engineered to match the fit and performance of the stock radiator fan on specific vehicle years, makes and models. It has been rigorously tested to ensure it cools as effectively as the original part.

• Ideal replacement - this engine cooling fan assembly was precision-engineered to match the fit and performance of the stock radiator fan assembly on specific vehicles
• Complete package - assembly is designed with the same materials and components as the original part
• Quality assured - motors are tested in laboratory settings to ensure performance
• Cost effective and reliable - trustworthy manufacturing for far less than same part at the dealership

Product Specifications

Blade Quantity: 5; 5
Blade Type: Forward Align Fin
Color/Finish: Black

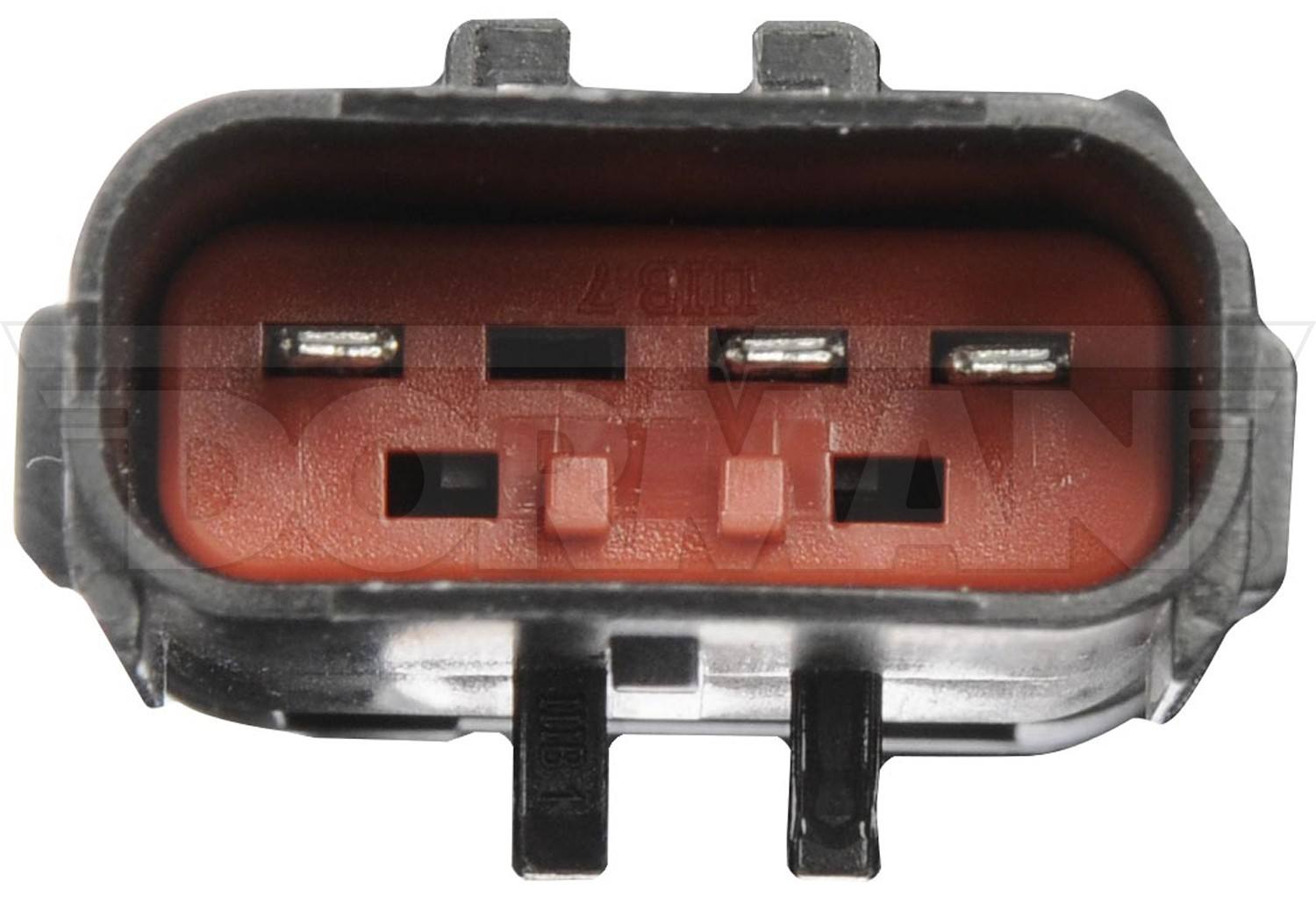

Connector Gender: Male
Connector Quantity: 2
Connector Type: Male
Diameter: 390 mm
Electrical or Mechanical: Electrical
Fan 1 Blade Quantity: 5
Fan 1 Diameter: 390 mm
Fan 2 Blade Quantity: 5
Fan 2 Diameter: 390 mm
Fan Blade Material: Plastic
Fan Quantity: 2
Fan Rotation: Counterclockwise
Flat Side On Shaft: No
Grade Type: Standard
Motor Type: Brushless
Mounting Bracket Included: Yes
Package Contents: 1 Radiator Fan Assembly
Package Quantity: 1
Packaging Type: Box
Shaft Diameter: 7 mm
Shroud Included: Yes
Shroud Material: Plastic
Terminal Gender: Male
Terminal Quantity: 3; 3
Voltage: 13.6v

Application Summary: Cadillac 2018-15, Chevrolet 2018-14, GMC 2018-14

Vehicle Fitments:
