Wiring Specialties 1JZGTE Adapter RX7 Swap DM3402

FOR USE WITH AFTERMARKET ECUs ONLY

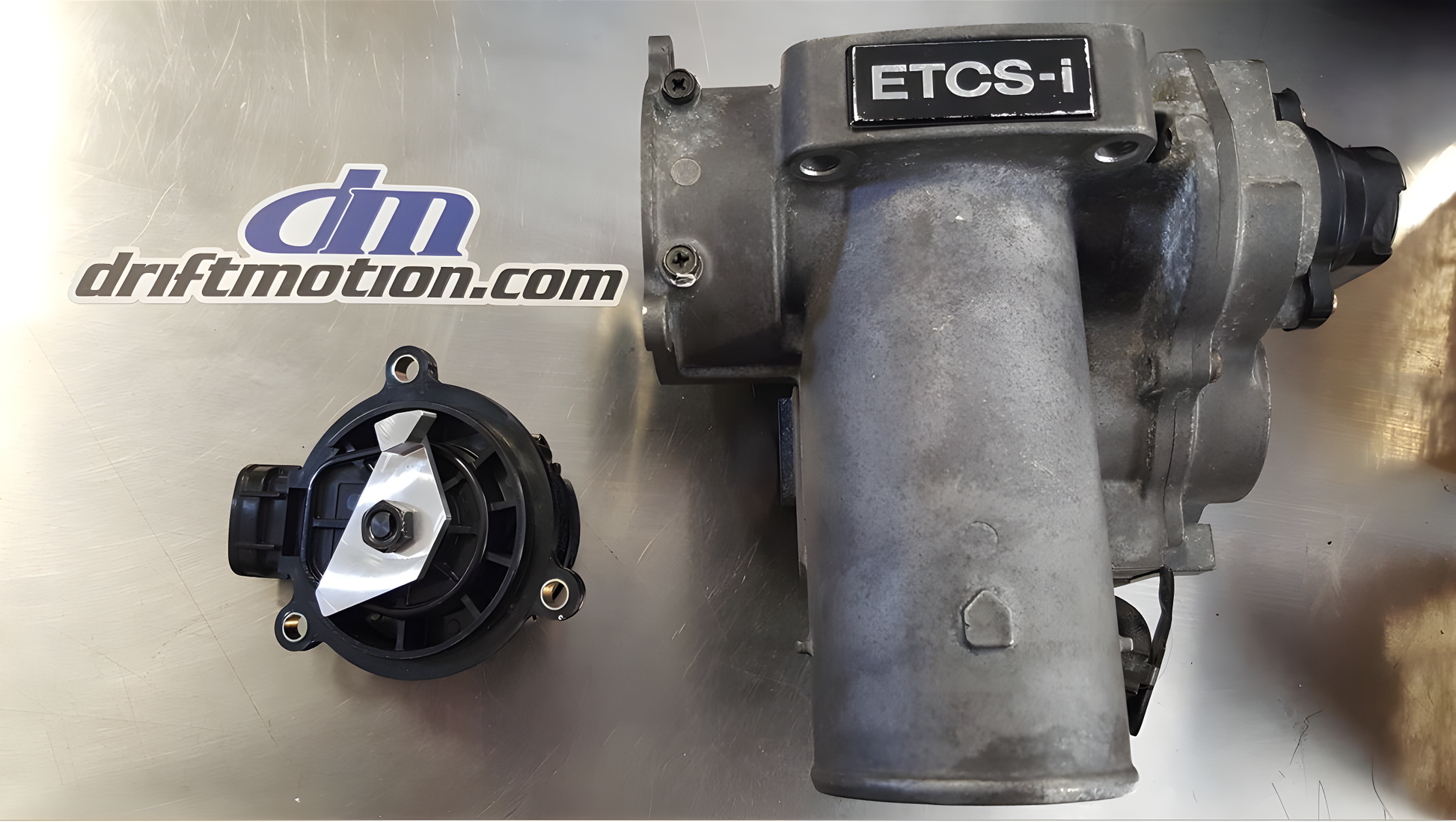

• NOT FOR OEM ECUs Driftmotion 1JZ-GTE VVTi ETCSi Drive By Wire Delete. This item is to make the drive by wire throttle body on the 1JZ-GTE engines (that have a ETCSi logo on them) into a fully mechanical thottle body. These engines are commonly found in the JZX110 Chaser. This item is NOT intended for use with the original ECU when the stepper motor in the throttle body is connected. One gear inside the side cover of the throttle body can be removed to disable the electric motor control. Using this item will disable the stock idle control function, so we include an adjustable screw and nut to manually adjust the idle. We are not responsible for any damage that may occur if this is used with the stock throttle control motor still functioning. Includes: 1) Driftmotion Billet Aluminum Drive By Wire Delete 1) 5mm Idle Adjustment Set Screw 1) 5mm Jam Nut The throttle sensor and throttle body is NOT included, this part slides on your sensor and screws down with the original nut. Click HERE to watch a video from Drift Motion
