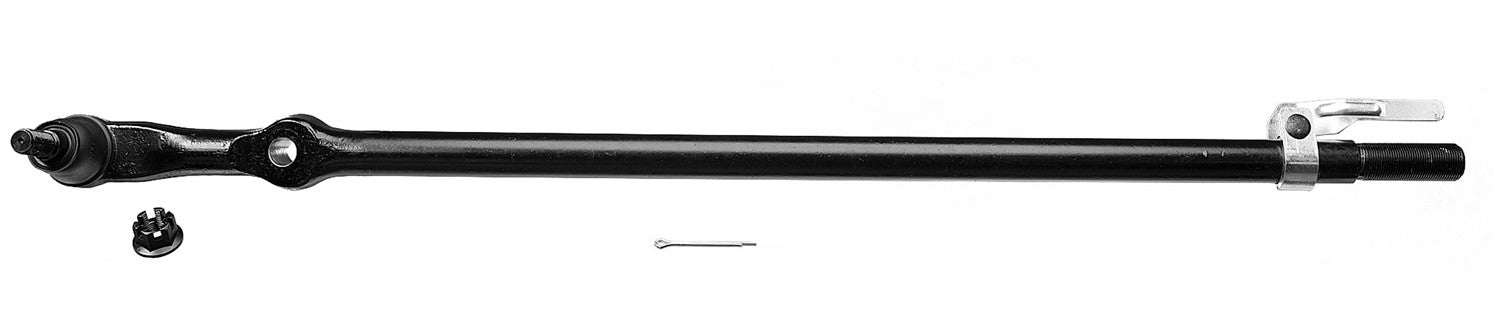

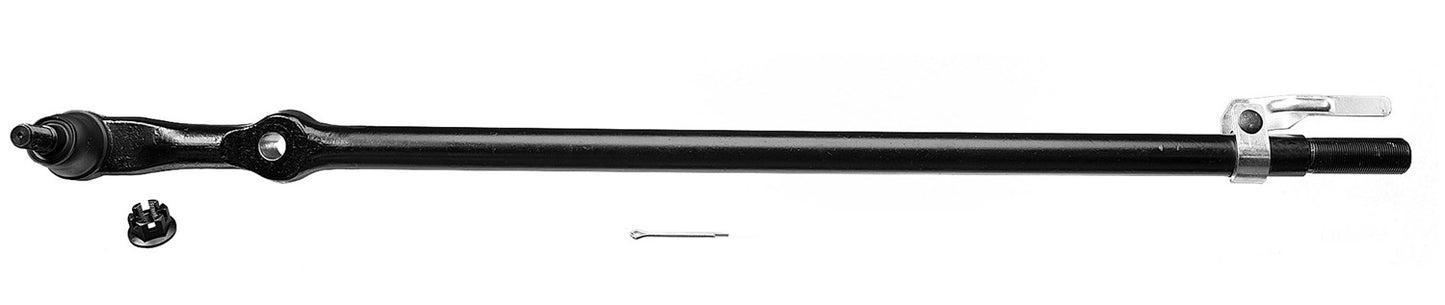

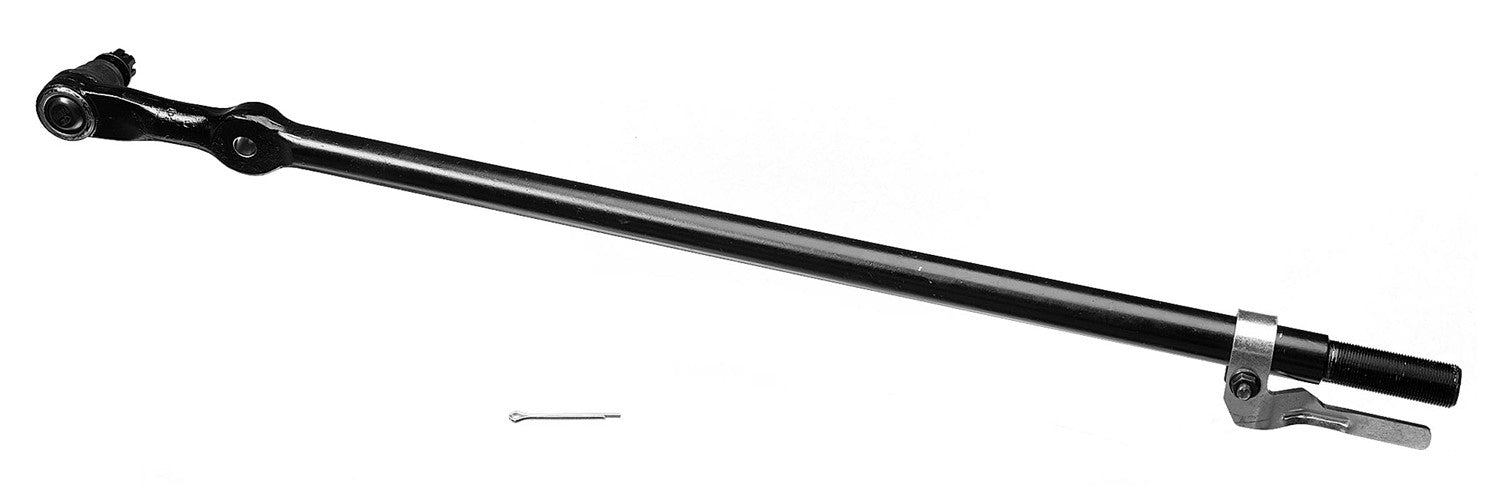

Dorman Drag Link Assembly

Drag Link Assembly

Application Summary: Ford F-250 2009-05, Ford F-250 Super Duty 2010-05, Ford F-350 Super Duty 2010-05

This extended life steering drag link is built for smooth performance and superior durability. Featuring a hardened stud, micro-polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.

• Extended-life construction - this steering drag link is built with features to deliver smooth performance and extended durability for demanding drivers
• Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
• Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
• Premium corrosion resistance - WeatherShield external coating to resist corrosion

Product Specifications

• Color: Black
• End 1 Attachment Size: 25 mm
• End 1 Attachment Type: Threaded
• End 2 Attachment Size: 16 mm
• End 2 Attachment Type: Taper
• Finish: Coated
• Grade Type: Performance
• Grease Fitting Included: No
• Length: 889 mm
• Material: Steel
• Maximum Diameter: 29.3 mm
• Mount Hole Diameter: 15 mm
• Mount Hole Quantity: 1
• Mount Stud Quantity: 1
• Mounting Hardware Included: Yes
• Package Contents: 1 Drag Link; 1 Castle Nut; 1 Cotter Pin
• Stud Thread Diameter: 16 mm
