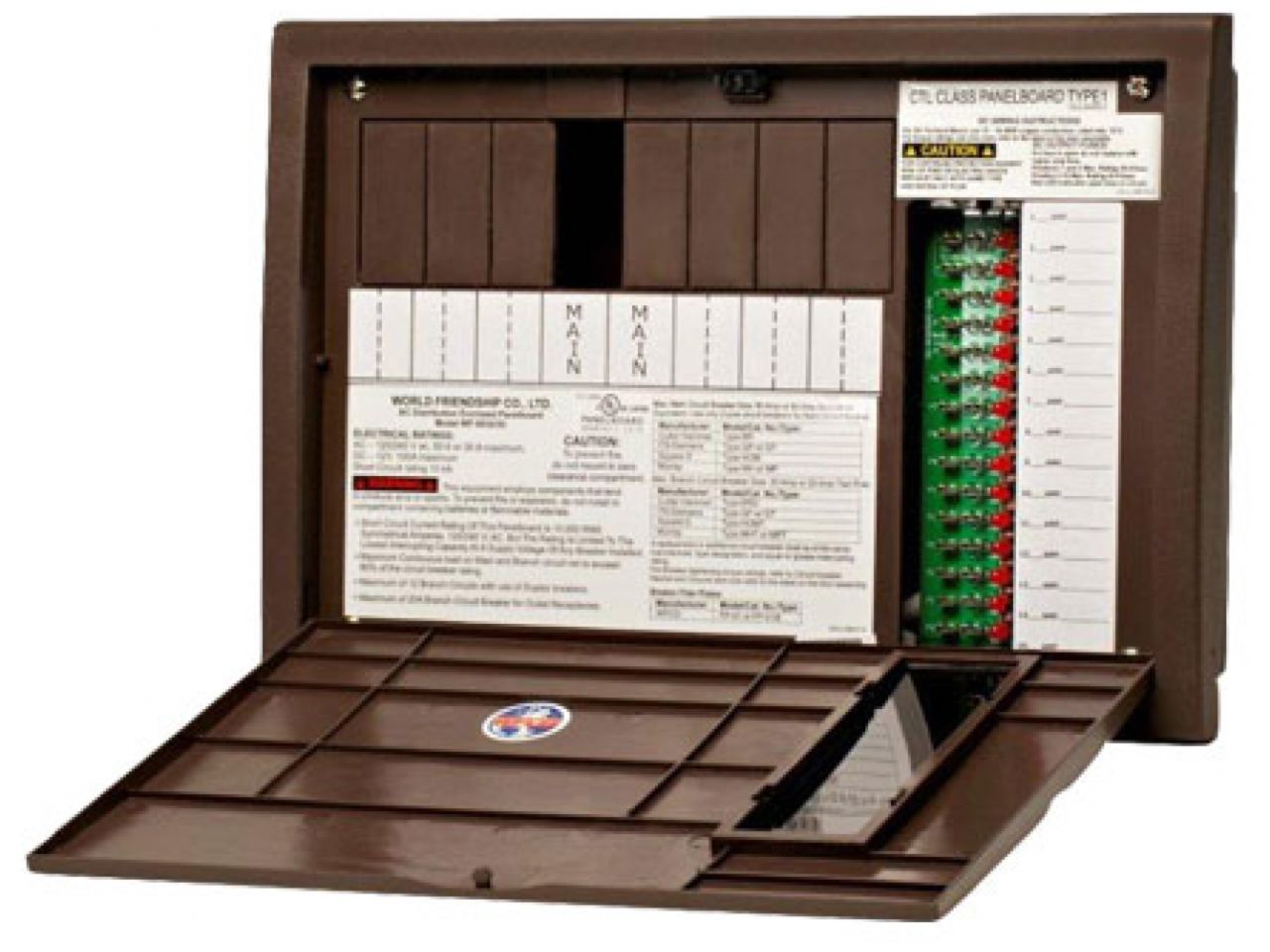

Arterra Dist Distribution Panel, Brown

The 8930/50 Series can be a 50 Amp or 30 Amp AC distribution center. It has 15 available DC, and up to 12 AC, branch circuits. The 8930/50 can be coupled with any of the WF-9800 switch mode converters with 55, 65, or 75 Amps, which gives engineers more flexibility in product design.

The WFCO 8930/50 Series distribution center comes with the WFCO Two-Year Limited Product Warranty.

These distribution panels have many features desired by the OEM and retail customers, and have been tested by the Underwriters Laboratories® (UL) to meet both the US and Canadian standards. Our 9800 Series converters used with the 8930/50 centers are designed to comply with FCC Class B, assuring quiet operation and non-interference with other appliances.

Nominal 13.6 VDC output voltage of the switch mode 9800 Series converter is easier on electronics, motors, and other appliances. There is no need for the battery to be inline to filter the circuits.

SPECIFICATION

Input Voltage/Hz: 120 VAC or 240 VAC

Dimensions: 12 3/16? x 8 3/16? x 3?

Weight: 3.75 lbs.

DC Circuits (Quantity): 15

Case Material: Plastic

Case Color: Brown

Certifications: FCC Class B compliant, UL® and cUL®-Listed

AC Main Breaker: 30 A, 50 A

Input AC Circuit Breaker Size: 30 A Main + breaker stabs (5 branch circuits), 50 A Main + breaker stabs (12 branch circuits)

Status Indicator Lights: Yes

Door Assembly Window: Yes
