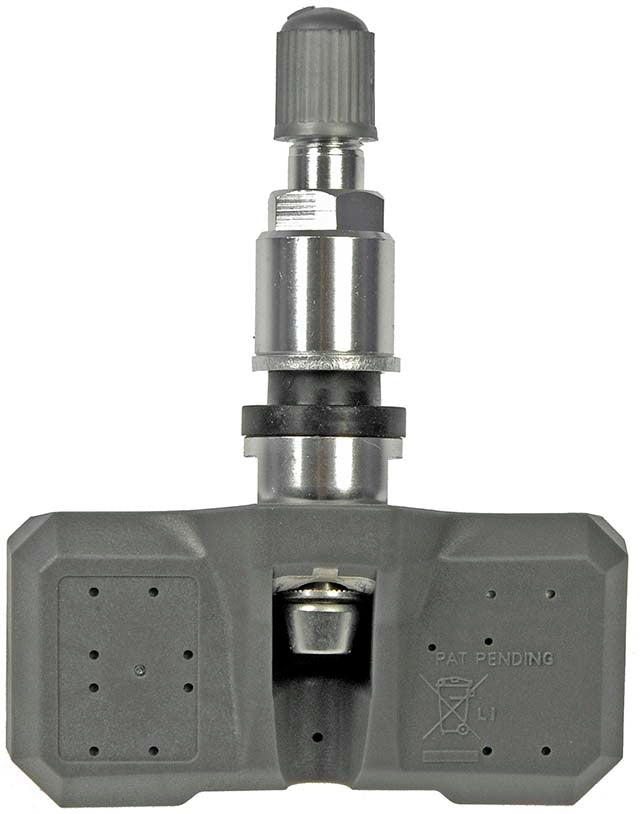

Dorman Direct-Fit Tire Pressure Monitoring System Sensor
Dorman's Tire Pressure Monitoring System (TPMS) Sensor features a unique two-piece design that allows for replacement of the valve stem independently of the sensor. The sensor also offers an adjustable angled stem, so an exact fit is ensured. Likewise, proper function is ensured: though the look and color of the sensor may vary from the factory-installed one, the internal electronics are customized for your specific vehicle, and will provide the same service as the original.
- Replaceable aluminum valve stem is anodized for long-lasting corrosion resistance-and may be serviced separately from the entire unit
- Comes with stem unit, grommet, washer, and hex nut for a complete installation
- Sensors are designed to accommodate installation angles from 5 to 26 degrees
- Dorman sensors work with all existing Tire Pressure Monitoring System (TPMS) tools
Specifications
Activation Type: Frequency
Frequency: 433 MHz
Housing Material: Plastic
Mounting Hardware Included: Yes
Mounting Location: Wheel Valve Stem Hole
Mounting Method: Clamp In
Package Contents: TPMS Sensor and Clamp In Valve Stem
Package Quantity: 1
Packaging Type: Box
Universal Or Specific Fit: Specific
Application Summary
BMW 2010-06, Mini 2009-08
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2008 - 2010 | BMW | 128i | Base |
| 2008 - 2010 | BMW | 135i | Base |
| 2007 - 2009 | BMW | 328i | Base |
| 2007 - 2008 | BMW | 328xi | Base |
| 2009 | BMW | 335d | Base |
| 2007 - 2009 | BMW | 335i | Base |
| 2008 - 2009 | BMW | 335i | M Sport |
| 2009 | BMW | 335i xDrive | Base |
| 2007 - 2008 | BMW | 335xi | Base |
| 2006 - 2007 | BMW | 525i | Base |
| 2006 - 2007 | BMW | 525xi | Base |
| 2008 - 2010 | BMW | 528i | Base |
| 2009 - 2010 | BMW | 528i xDrive | Base |
| 2008 | BMW | 528xi | Base |
| 2006 - 2007 | BMW | 530i | Base |
| 2006 - 2007 | BMW | 530xi | Base |
| 2010 | BMW | 535i GT | Base |
| 2010 | BMW | 550i | Active Dynamic |
| 2006 - 2010 | BMW | 550i | Base |
| 2006 - 2009 | BMW | 550i | Top, Formula 1 |
| 2010 | BMW | 550i GT | Base |
| 2010 | BMW | 550i GT xDrive | Base |
| 2006 - 2010 | BMW | 650i | Base |
| 2006 - 2010 | BMW | 750i | Base |
| 2006 - 2008 | BMW | 750i | Sport |
| 2008 - 2009 | BMW | 750i | Sport Limited Edition, Limited Edition |
| 2010 | BMW | 750i xDrive | Base |
| 2006 - 2010 | BMW | 750Li | Base |
| 2006 - 2008 | BMW | 750Li | Sport |
| 2008 - 2009 | BMW | 750Li | Sport Limited Edition, Limited Edition |
| 2010 | BMW | 750Li xDrive | Base |
| 2006 | BMW | 760i | Base |
| 2006 - 2010 | BMW | 760Li | Base |
| 2008 - 2009 | BMW | 760Li | Limited Edition |
| 2007 - 2008 | BMW | Alpina B7 | Base |
| 2008 - 2009 | BMW | M3 | Base |
| 2006 - 2010 | BMW | M5 | Base |
| 2006 - 2010 | BMW | M6 | Base |
| 2006 | BMW | X3 | 2.5i |
| 2006 - 2008 | BMW | X3 | 3.0i |
| 2007 - 2010 | BMW | X3 | 3.0si, 2.5si |
| 2010 | BMW | X3 | xDrive28i |
| 2009 - 2010 | BMW | X3 | xDrive30i |
| 2006 | BMW | X5 | 4.4i, 4.4i Top Line, 4.4i Lujo, 4.8is, 3.0i, 4.4i Formula 1 |
| 2007 - 2008 | BMW | X5 | 4.8i |
| 2007 - 2009 | BMW | X5 | 4.8i Premium, 3.0si |
| 2010 | BMW | X5 | M |
| 2009 - 2010 | BMW | X5 | xDrive30i, xDrive35d, xDrive30i M Sport, xDrive48i, xDrive48i M Sport |
| 2010 | BMW | X6 | M, ActiveHybrid |
| 2008 - 2010 | BMW | X6 | xDrive35i, xDrive50i |
| 2009 - 2010 | BMW | X6 | xDrive50iA, xDrive35iA |
| 2006 | BMW | Z4 | 2.5i, 3.0i |
| 2007 - 2010 | BMW | Z4 | 2.5si, 3.0si |
| 2006 - 2009 | BMW | Z4 | M Coupe, M Roadster |
| 2006 - 2008 | BMW | Z4 | Roadster 3.0si, Coupe 3.0si, Roadster 3.0i |
| 2009 - 2010 | BMW | Z4 | sDrive30i, sDrive35i |
| 2009 | Mini | Cooper | John Cooper Works Clubman |
| 2008 - 2009 | Mini | Cooper | S Sidewalk, S Clubman, S Salt, Pepper, Clubman, S, Base, Chili, John Cooper Works, Salt, S Hot Chili, S Chili |
