Dorman DiRECT-FIT Tire Pressure Monitoring System Sensor

SKU: 1GH3Q | MPN:  974-012
Only 8 units left
Sale price$95.48 USD

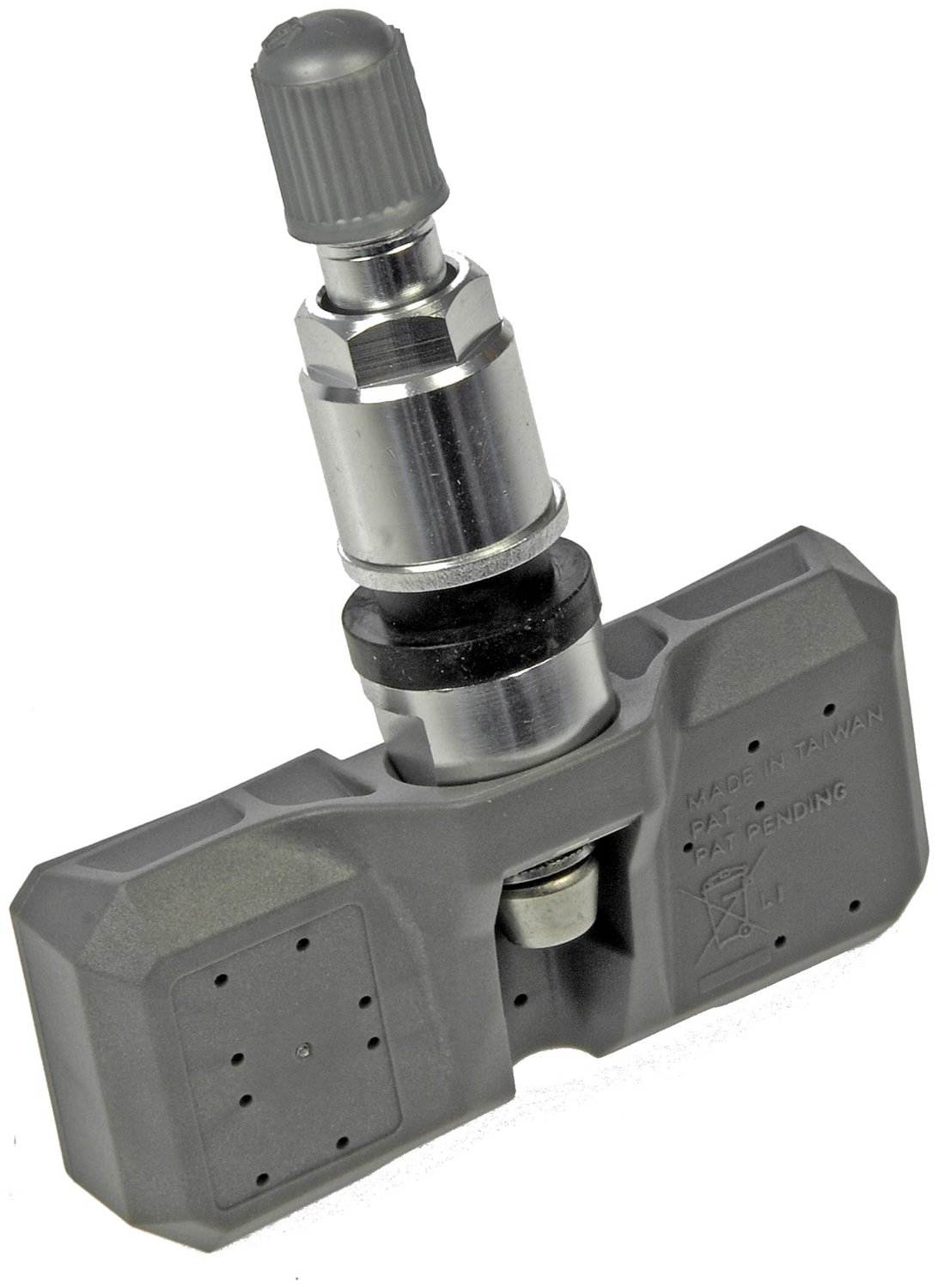

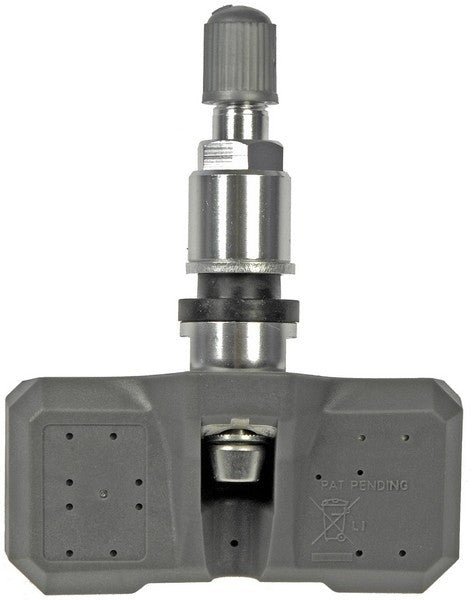

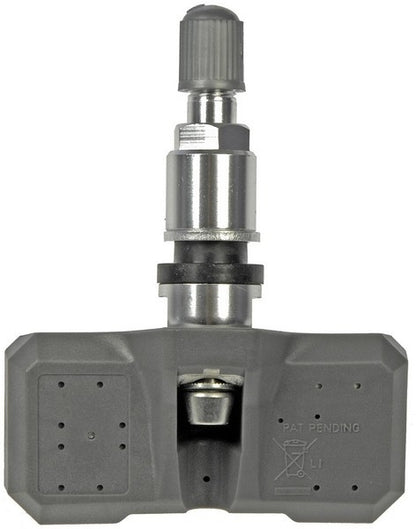

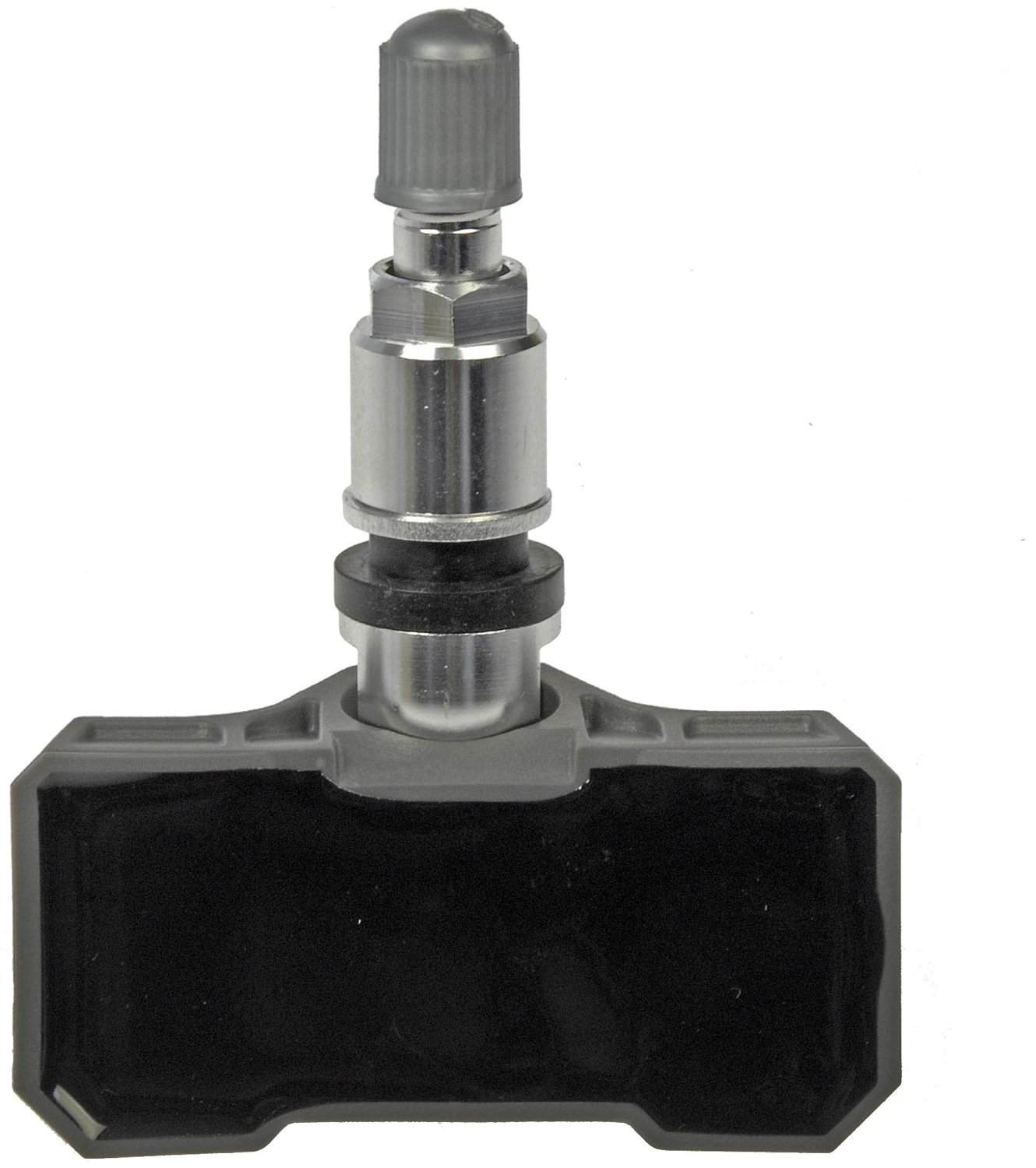

DiRECT-FIT Tire Pressure Monitoring System Sensor

Dorman's Tire Pressure Monitoring System (TPMS) Sensor features a unique two-piece design that allows for replacement of the valve stem independently of the sensor. The sensor also offers an adjustable angled stem, so an exact fit is ensured. Likewise, proper function is ensured: though the look and color of the sensor may vary from the factory-installed one, the internal electronics are customized for your specific vehicle, and will provide the same service as the original.

  • Replaceable aluminum valve stem is anodized for long-lasting corrosion resistance-and may be serviced separately from the entire unit
  • Comes with stem unit, grommet, washer, and hex nut for a complete installation
  • Sensors are designed to accommodate installation angles from 5 to 26 degrees
  • Dorman sensors work with all existing Tire Pressure Monitoring System (TPMS) tools

Application Summary: Cadillac STS 2008-05, Cadillac XLR 2009-04, Chevrolet Corvette 2009-05

Product Specifications

Activation Type: Magnetic

Frequency: 315 Mhz Fm

Housing Material: Plastic

Mounting Hardware Included: Yes

Mounting Location: Wheel Valve Stem Hole

Mounting Method: Clamp In

Package Contents: One Tire Pressure Monitor Sensor With Clamp In Valve Stem

Package Quantity: 1

Packaging Type: Box

Universal Or Specific Fit: Specific



Vehicle Fitments:

Year Make Model Submodel
2005 - 2008 Cadillac STS Base
2005 Cadillac STS Elegance
2008 Cadillac STS Platinum
2006 - 2008 Cadillac STS V
2004 - 2008 Cadillac XLR Base
2008 - 2009 Cadillac XLR Platinum
2006 - 2009 Cadillac XLR V
2008 Chevrolet Corvette 427 Limited Edition Z06
2005 - 2009 Chevrolet Corvette Base
2006 - 2009 Chevrolet Corvette Z06
2009 Chevrolet Corvette ZR1
