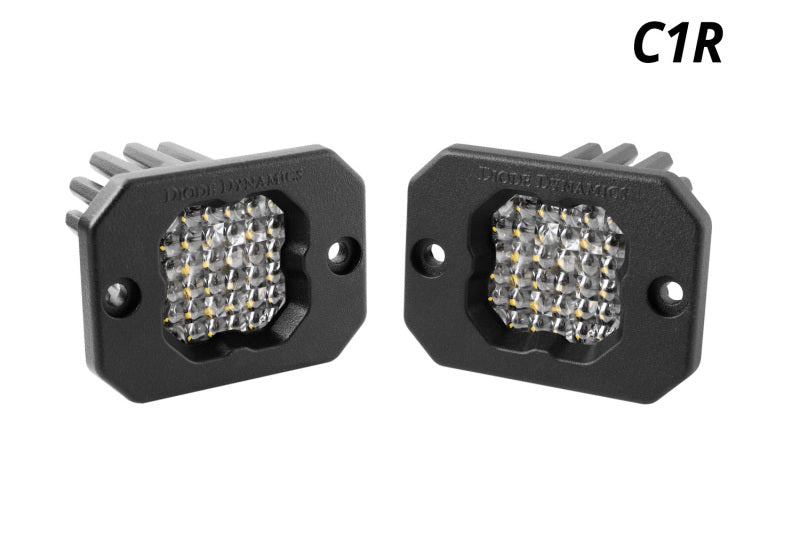

Diode Dynamics Stage Series C1R - White Flood Flush Mount LED Pod (Pair) DD7427P
Diode Dynamics Stage Series C1R - White Flood Flush Mount LED Pod (Pair) DD7427P
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
Low stock: 3 left
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
Product details shared across all variants.
- Product type
- Auxiliary Light
- Category
- Motor Vehicle Lighting
- Item condition
- New
- Manufacturer type
- Aftermarket
- Shipping dimensions (L × W × H)
- Shipping weight
- 0.8 lb
- Barcode
- 00195995129482
Billable shipping weight; may include dimensional weight.
Features
- Ultra-compact single-LED form factor
- Triple function: high-power white main beam high-power red main beam and low-power red accent light
- Pin-fin heatsink design for superior thermal dissipation
- Integrated Deutsch-style connector
- Designed torture-tested and assembled in USA
Overview
Introducing the Stage Series C1R LED Pod! Featuring custom-engineered TIR optics combined with a single high-power LED chip these pods have been designed to provide three different lighting functions in our most compact versatile package yet. Thanks to its compact size the C1R can be mounted virtually anywhere on your car truck motorcycle or UTV including spots where larger LED pods won't fit.
Triple Function. The Stage Series C1R LED pod features a cool white main beam along with a high-power red main beam and low-power red accent light that can be activated independently. The C1R was designed to serve as a high-power reverse light along with your factory reverse lights a 4th brake light when your brakes are applied and a secondary running light with your tail lights.
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the Stage Series C1R collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.

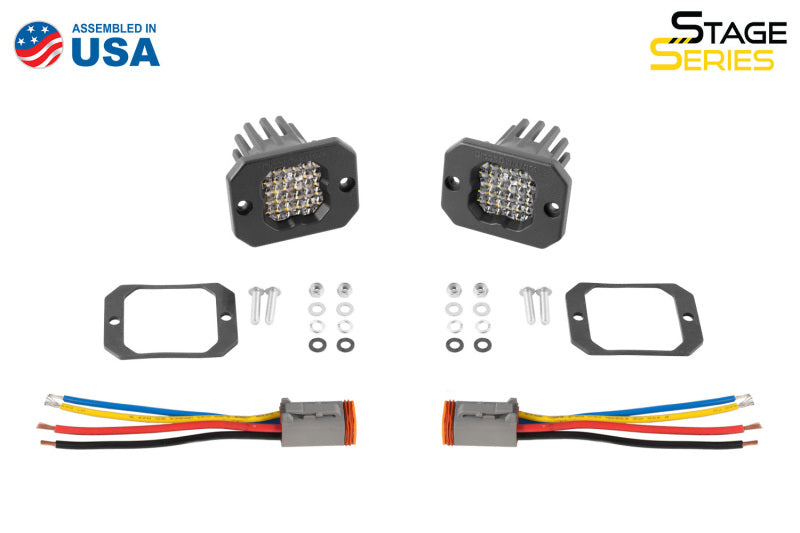

Simple connections. All Stage Series C1R LED pods feature a custom-molded DT-type Deutsch-style connector on the back and come with a 4-pin 6-inch pigtail with bare leads. The yellow wire on the pigtail powers high-power red the red wire powers the white main beam the blue wire powers low-power red and the black wire is ground.
