Diode Dynamics Heavy Duty Dual Output 3-way 4-pin Wiring Harness DD4093
Diode Dynamics Heavy Duty Dual Output 3-way 4-pin Wiring Harness DD4093
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
58 in stock
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
Product details shared across all variants.
- Product type
- Auxiliary Light Wiring
- Category
- Motor Vehicle Lighting
- Item condition
- New
- Manufacturer type
- Aftermarket
- Shipping dimensions (L × W × H)
- Shipping weight
- 5.0 lb
- Barcode
- 00691026126470
Billable shipping weight; may include dimensional weight.
Features
- Powers Diode Dynamics LED pods with backlight functionality.
- Connects directly to the battery to power your LED pods.
- High capacity 14AWG wiring.

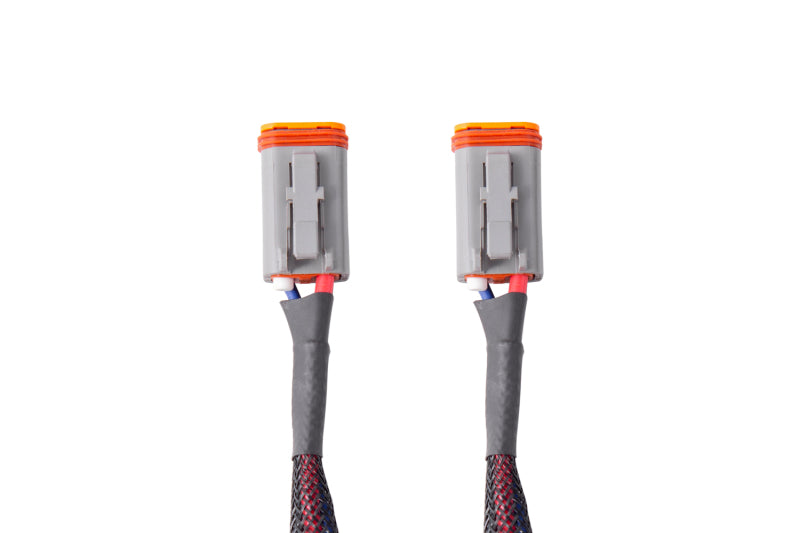

- Dual Deutsch DT output connectors.

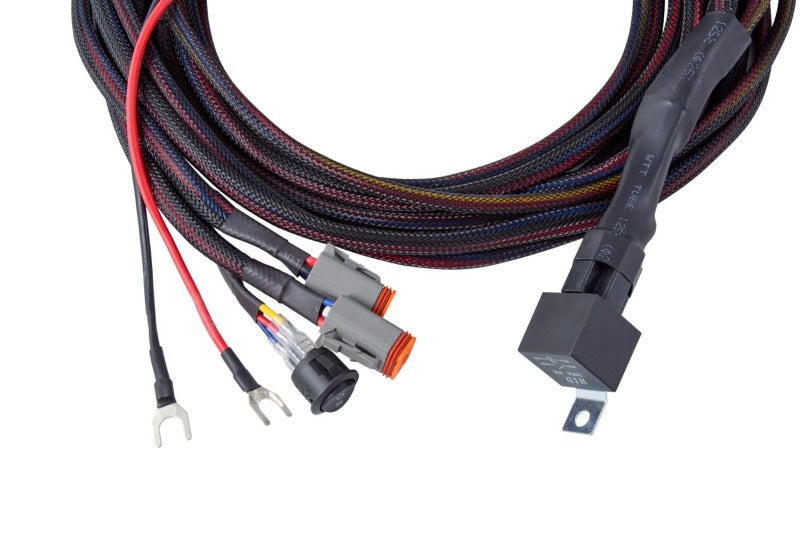

- 30A waterproof fuse and 60A 12V relay to safeguard the electrical systems in your pods.
Overview

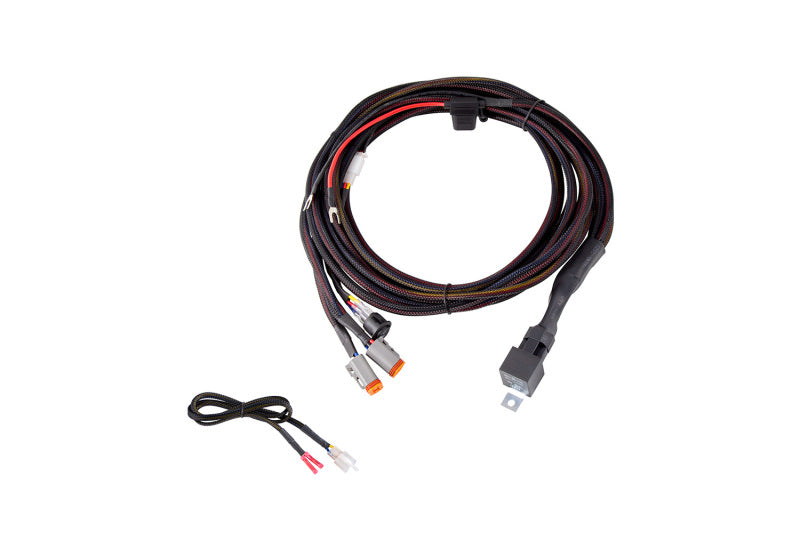

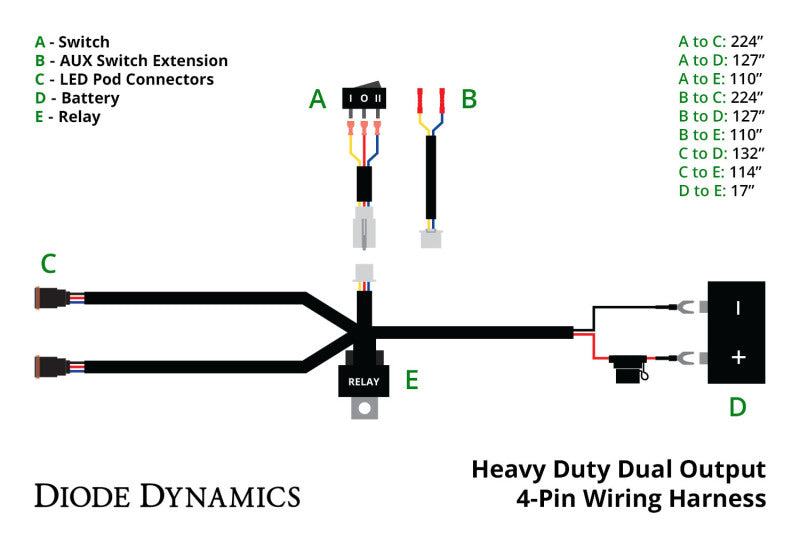

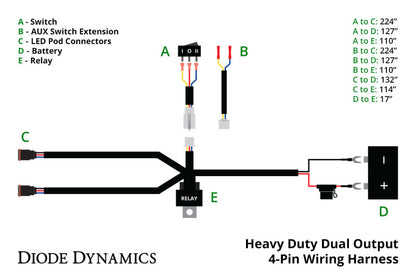

Stage Series. This harness is intended to be used with our Stage Series pods with backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a three-way switch to toggle between the backlight off and the main beam. This harness uses high capacity 14AWG wiring and Deutsch DT connectors for simple plug-and-play installation.
This harness safely powers up to 25A of auxiliary lamps. Please refer to the current draw data below.
- C1 Sport: 1.2A
- C1 Pro: 1.7A
- SSC2 Sport: 0.6A
- SSC2 Pro: 1.75A
- SS3 Non-Backlit Sport: 2.9A
- SS3 Non-Backlit Pro: 1.2A
- SS3 Non-Backlit Max: 3.3A
- SS3 Backlit Sport: 1.06A
- SS3 Backlit Pro: 2.87A
- SS5 Sport: 2.8A
- SS5 Pro: 6.7A
Control through OEM Aux Switches. This harness includes an OEM aux switch adapter wire that allows you to control your lights using a factory-installed aux switch bank. Two switches will be used - one for the main beam and one for the backlight. For those who don't have the aux switch bank you will use the included toggle switch adapter wire to mount a switch.
