Dinan tronics Performance Tuner Stage 1

Stage 1 (Dinantronics Performance Tuner Only) Maximum Power: 360 HP, 426 lb-ft of torque.

The Dinantronics Performance Tuner is a highly engineered and sophisticated piece of computer hardware and software that enhances engine performance, without negating or voiding your new car warranty coverage and without affecting long term reliability or the functionality of on-board diagnostic systems. It is also the only tuning device emissions legal in all 50 states. The ultimate objective of developing this piece of technology was to provide the ability to control every signal entering and exiting the BMW factory Engine Control Unit. These items are unique to Dinan and together they embody the apex of performance engineering in a powerful, reliable, and warrantied package.

Well Engineered

Plug-in tuning devices all have one thing in common, they send a modified signal to the factory ECU, telling it the boost pressure is below target values. This then causes the factory ECU to raise the boost pressure to what it thinks is the correct value. This modified boost pressure signal causes errors in fuel mixture and ignition timing. These errors can cause the on-board diagnostics systems to set faults, but they can also cause exceedingly high catalyst temperatures and a loss of power. In addition, when power is increased, exhaust gas temperature will increase as well and this must be countered with a slightly richer air/fuel mixture. The Dinantronics Performance Tuner uniquely has the capability to adjust target Lambda, correct short term trim as well as ignition timing errors induced by raising boost pressure. This enables Dinan calibration engineers to optimize air/fuel mixture and ignition timing at elevated boost pressure throughout the entire gamut of engine RPM and engine load. Additionally, the ability to correct short term trim corrections (the difference between target and scheduled fuel mixture) remain within OEM specifications. This minimizes knock sensor activity, which in turn means smooth engine performance, catalyst protection and power increase, while this is also required to make the car emissions legal. Dinan engineers have worked for two years on the Dinantronics Performance Tuner in efforts to provide BMW enthusiasts with Performance without Sacrifice.

State-of-the-Art Hardware

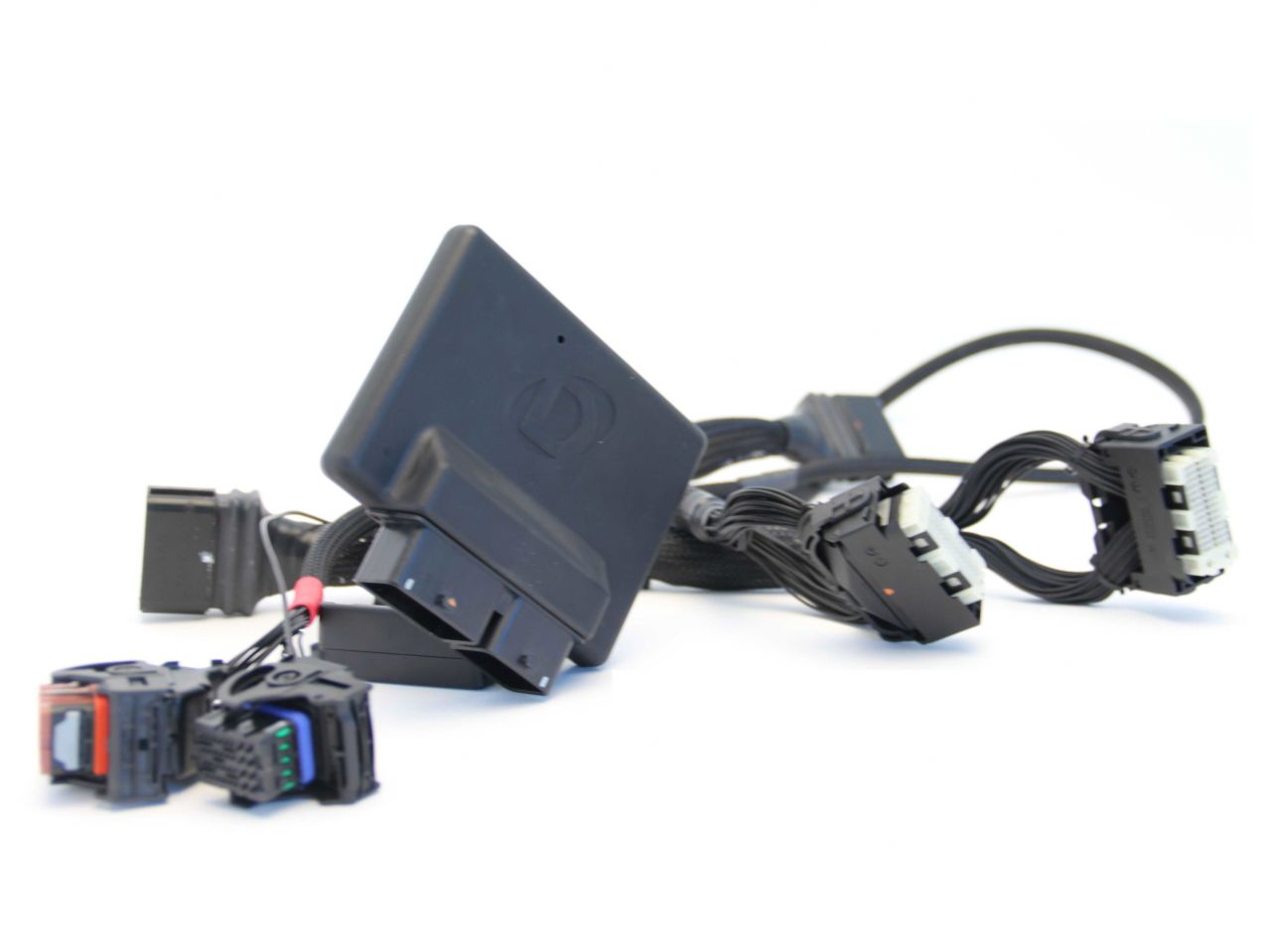

The Dinantronics Performance Tuner is engineered using the best possible components and advanced hardware. The most obvious and visible component is the elaborate wiring harness. Using OE connectors and an expandable braided wiring sleeves ensures that all visible components appear as if they come straight from the factory. More importantly however it guarantees long lasting and dependable performance due to the use of high heat, moisture and abrasion resistant materials and design. The other hardware element involved is the Dinan electronic control unit (ECU) itself. While its outward appearance may seem tame, the processing power and sophistication held within its internal circuitry is anything but. Capable of delivering signals to various systems at an astonishing 4000 times per second the Dinantronics Performance Tuner yields the power to control all current signals delivered to the ECU as well as those developed in the future without a hiccup in performance or reliability. This immense processing power equates to a high degree of engine control resulting in a much lower likelihood of setting a fault. In addition smoother running conditions and superior drivability are achieved, all of which are Dinan hallmarks.

Drivability

There is more to a tune than just cranking up the boost. Power needs to come on smoothly and in a predictable way to make the car as fun to drive at wide open throttle as cruising around town. It is your BMW, but reborn with new found acceleration and speed.

Easy To Use

Dinan's ECU is Bluetooth® Smart meaning that you can change maps simply via a Bluetooth connection on your iPhone or Android device. Just install and you are done.

Designed for the Future

The Dinantronics Performance Tuner was engineered with future expansion of functionality in mind. Boasting the most powerful processing power on the market the Dinantronics Performance Tuner can handle more functions and processes than any of its contemporaries. To that end the Dinan performance tuner is capable of interfacing with the CAN and FlexRay communication systems which allow for controlling powertrain functions, among others. This means that when new functions are developed there will be no need for a new box, just a short software update at your local Dinan dealer. Also keep in mind that if you are upgrading stages that the only cost incurred to you is the price difference between the two stages (and any supporting hardware mods).

Specifications

• Max HP Gain 40 @ 5000 RPM
• Max Torque Gain 57 @ 3000 RPM
• Peak Horsepower 360 @ 5500 RPM
• Peak Torque 426 @ 3000 RPM
• Factory Rated HP 315 (321 Measured)
• Factory Rated Torque 330 (373 Measured)
