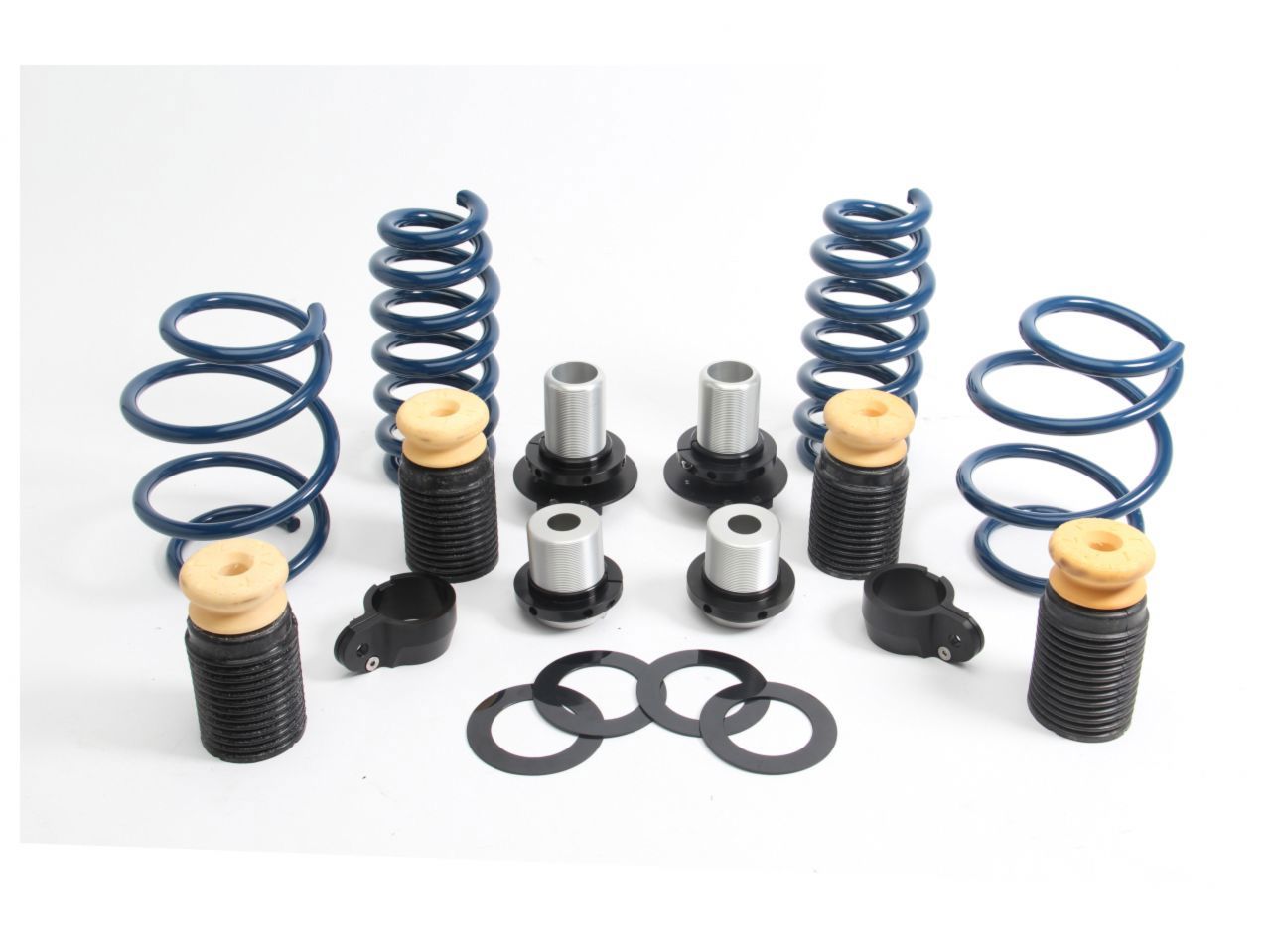

Dinan Coil-Over Suspension
Dinan Adjustable Coil-Over Suspension was bred in the race lab but refined on the street for maximum versatility. No matter the environment, the traction that is bestowed upon the vehicle from the improved suspension will inspire new found confidence when running at higher speeds. Combined with a substantial reduction in body roll as well as reducing dive under breaking and squat under acceleration. Dinan will guarantee you superior handling, performance, and comfort. Dinans design keeps the factory Electronic Damper Control shocks in place and implements threaded collars to allow the user to change the ride height. The end result is a sleek lowered stance that provides improved handling to go along with its stunning visual appearance. The springs combined with progressive bump stops and other components increase travel that allows the car to be lowered up to an 1" in the front and 1 1/2" in the rear. Suspension packers are included to fine tune handling and comfort by changing the clearance of the progressive bump-stops, something no respectable racecar is without. Components are machined from 6061-T6 aluminum and black anodized for appearance and corrosion protection.
+Threaded collars allow easy and precise front & rear vehicle height adjustments.
+ Up to 1" of lowering in front and 1 1/2" of lowering in back are possible depending on tire clearance although 1/2" drop is recommended in front and back to maintain a civilized ride.
+ Spring rates are nearly 50% stiffer in front and 10% stiffer in the rear.
+Substantial reduction in body roll.
+ Included suspension packers allow adjustment of bump-stop clearance to fine-tune
handling and comfort.
+Dinan-spec progressive bump stops improve ride quality at lowered ride heights.
+Components are machined from 6061-T6 aluminum and black anodized for a sporty
appearance as well as corrosion protection.
+ ONLY Compatible with vehicles equipped with BMW EDC shocks.
+Stock upper spring mounts are utilized for quiet operation.
