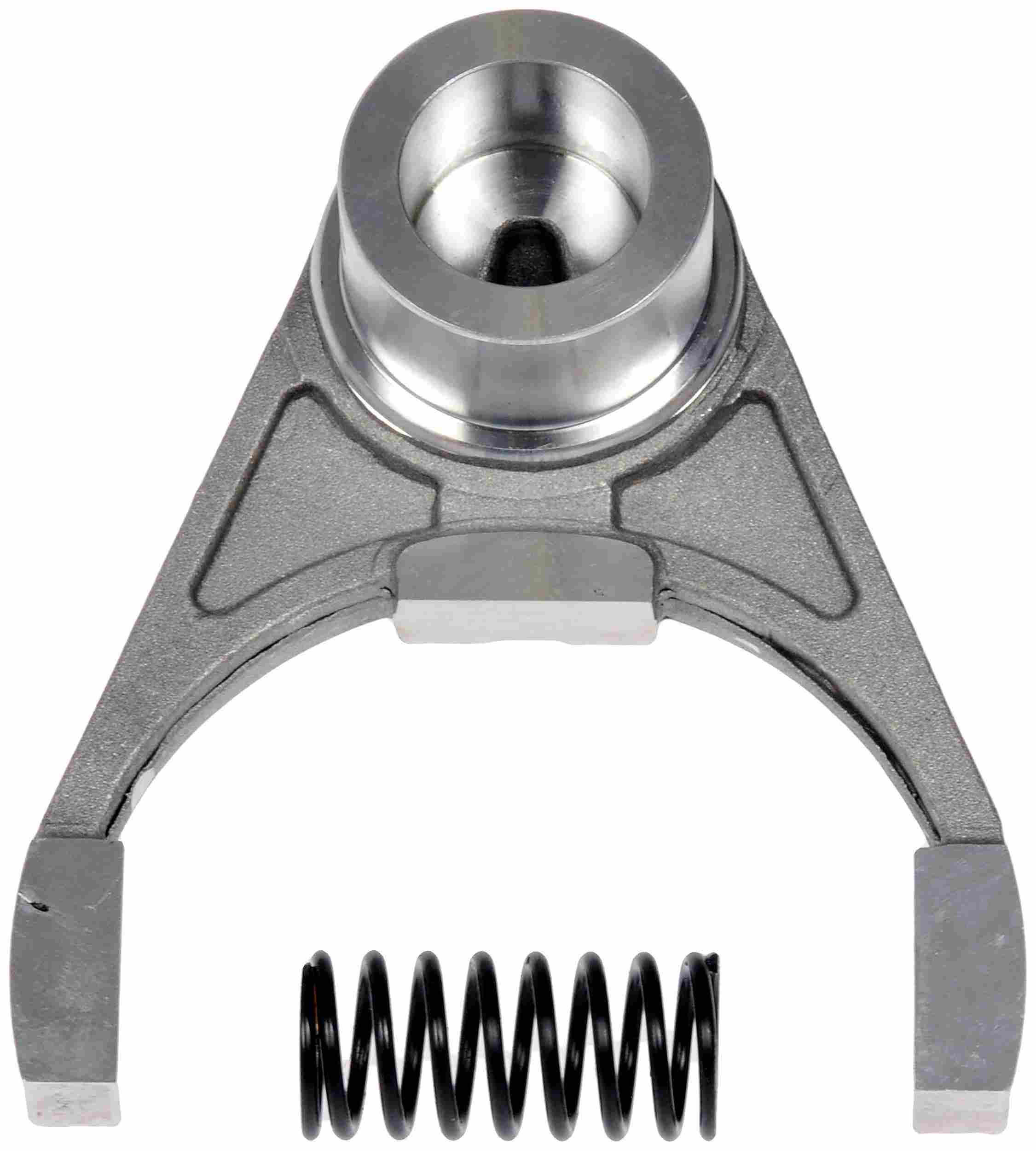

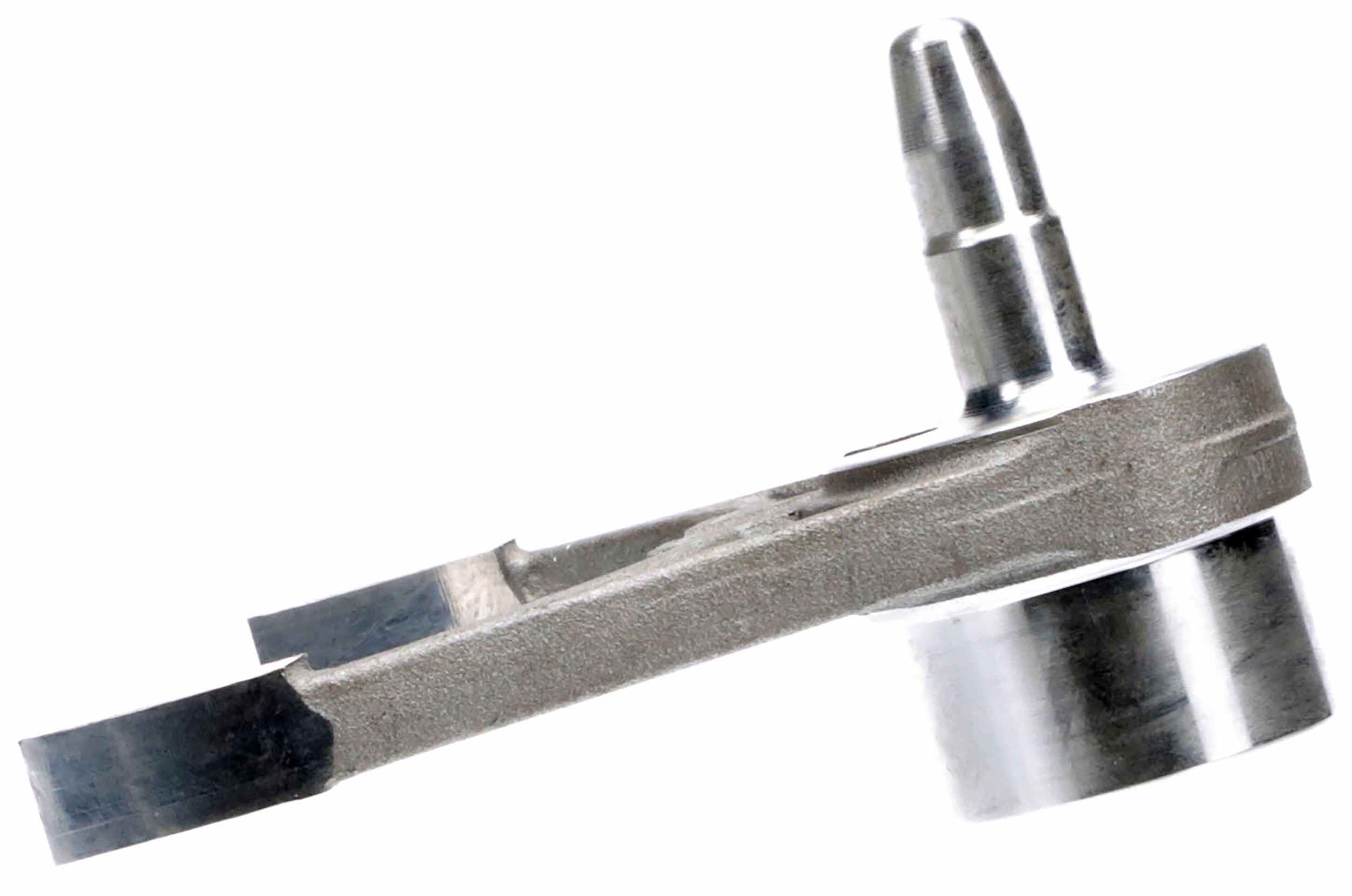

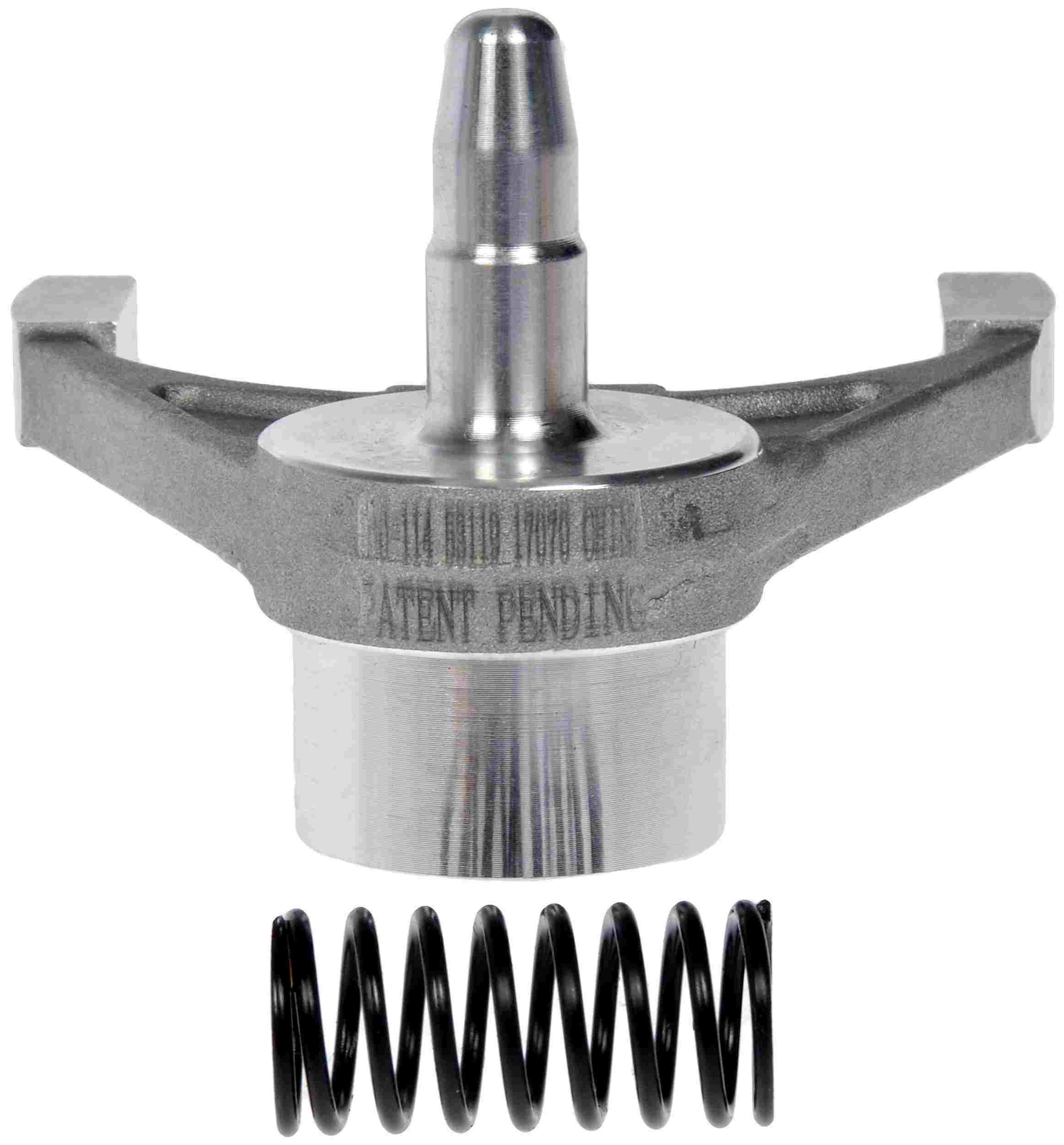

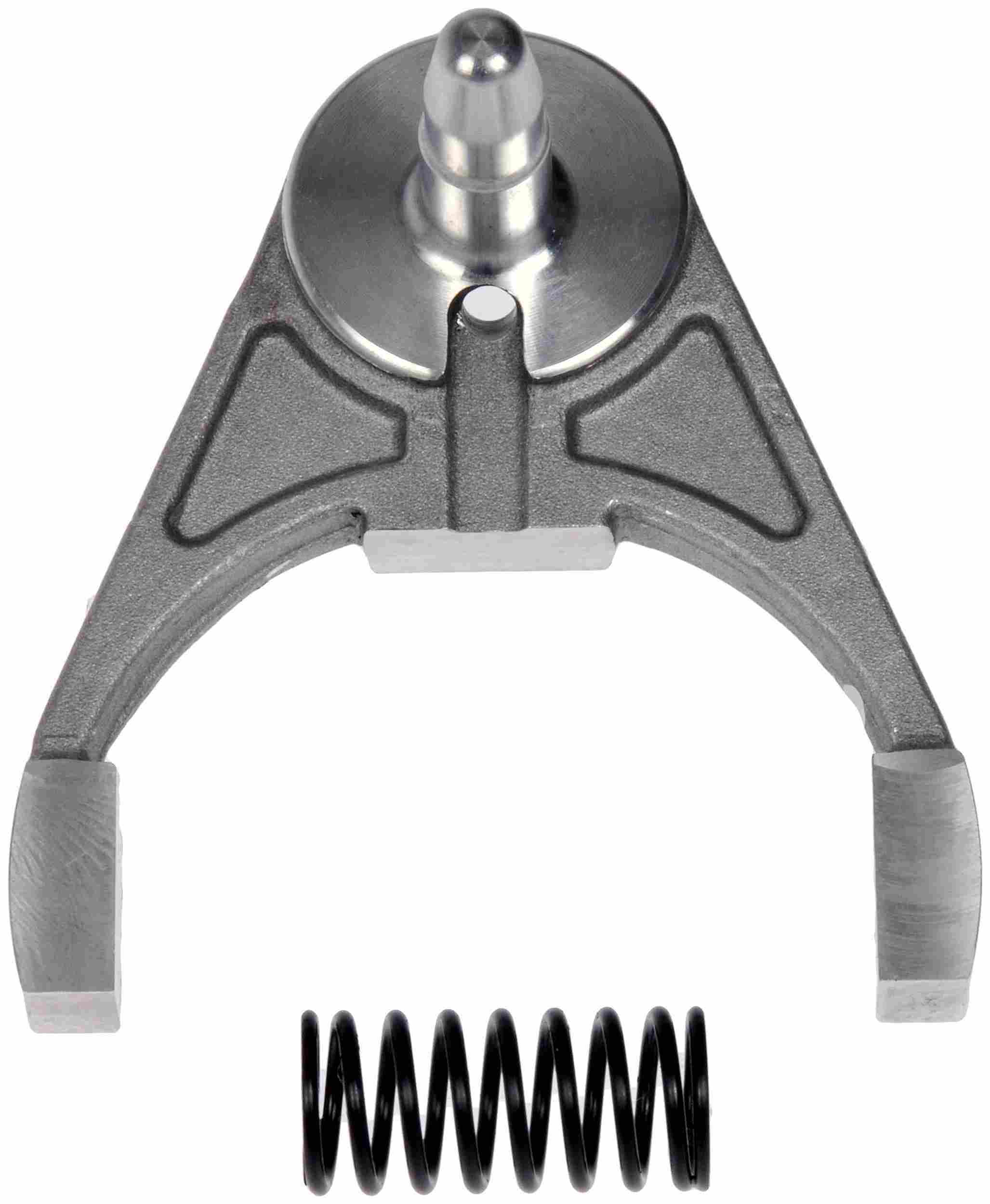

Dorman Differential Axle Disconnect Shift Fork
The 4WD Actuator Fork typically requires replacement due to a broken alignment pin and excessive wear and tear on contact pads. Dorman's OE FIX solution provides a completely redesigned actuator fork with an extended alignment pin and contact pads to help prevent future wear. Additionally, our direct replacement 4WD Actuator Fork includes a third center contact pad for better support around the bearing area, preventing the coupling gear from wearing into the fork. Quality tests on this part ensures conformance to product standards, durability and performance.
- Material upgraded from brittle cast aluminum to forged aluminum for greater strength and reliability
- Designed with larger contact pads to help reduce load on alignment pin
- Extended alignment pin prevents pin from breaking off easily
- Quality tests on this part included vehicle try-on testing to ensure a trouble-free performance
Specifications
Installation Hardware Included: No
Material: Aluminum
Package Contents: Shift Fork, Spring
Package Quantity: 1
Packaging Type: Box
Application Summary
Chevrolet 2009-02, GMC 2009-02, Isuzu 2008-03, Saab 2009-05
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004 - 2007 | Chevrolet | Trailblazer | A, B |
| 2003 - 2008 | Chevrolet | Trailblazer | Base |
| 2002 - 2007 | Chevrolet | Trailblazer | LS |
| 2002 - 2009 | Chevrolet | Trailblazer | LT |
| 2002 - 2003 | Chevrolet | Trailblazer | LTZ |
| 2002 - 2004 | Chevrolet | Trailblazer | North Face |
| 2005 | Chevrolet | Trailblazer | R, Q |
| 2006 - 2009 | Chevrolet | Trailblazer | SS |
| 2003 - 2006 | Chevrolet | Trailblazer EXT | LS |
| 2002 - 2006 | Chevrolet | Trailblazer EXT | LT |
| 2002 - 2004 | Chevrolet | Trailblazer EXT | North Face |
| 2005 - 2009 | GMC | Envoy | Denali |
| 2002 - 2009 | GMC | Envoy | SLT, SLE |
| 2005 - 2006 | GMC | Envoy XL | Denali |
| 2002 - 2006 | GMC | Envoy XL | SLE, SLT |
| 2004 - 2005 | GMC | Envoy XUV | SLE, SLT |
| 2003 - 2006 | Isuzu | Ascender | Base, LS |
| 2003 - 2005 | Isuzu | Ascender | Limited |
| 2004 - 2008 | Isuzu | Ascender | S |
| 2006 - 2009 | Saab | 9-7x | 4.2i, 5.3i |
| 2008 - 2009 | Saab | 9-7x | Aero |
| 2005 | Saab | 9-7x | Linear, Arc |
