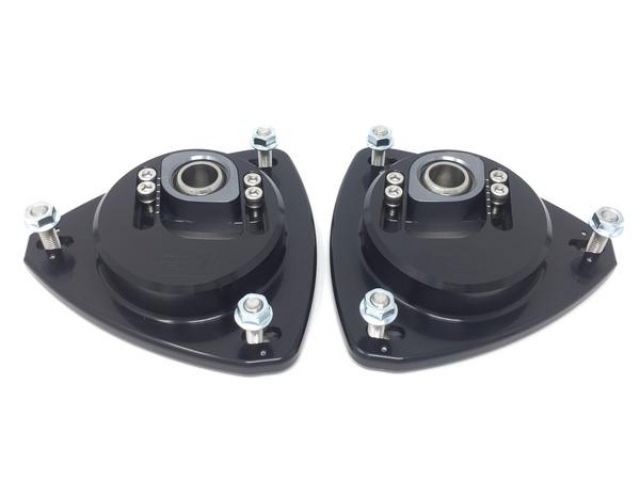

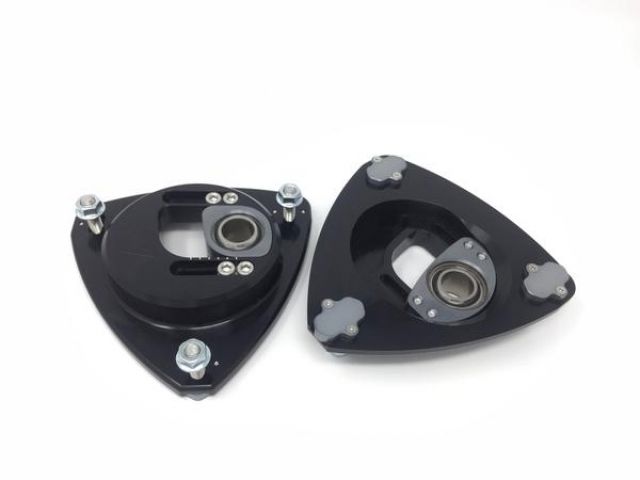

Diftech Adjustable Camber Plates fits FR-S BRZ Ohlins R&T Front Pair
These adjustable camber/caster plates for FR-S and BRZ are designed to give FT-86 drivers ultimate flexibility in front alignment with Ohlins dampers. This high strength, lightweight package is designed for daily driven cars, as well as track day/autocross cars. Camber is adjustable from a positive, "camber correction" position to a full race negative setting. In addition, Diftech's simple slide caster adjustment can adjust from stock setting to an extra degree of caster all without even removing the wheels! With eccentric bolts, these plates can achieve 4.5+ degrees of camber and 7 degrees of caster!

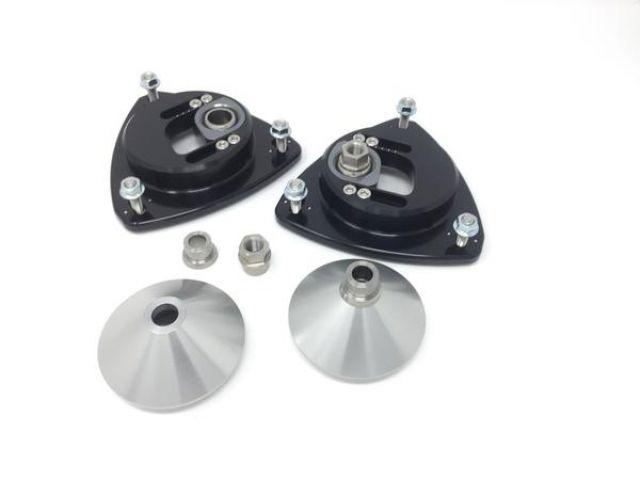

Made in the USA from 7075 billet aluminum. These extended top hats also free up shock stroke and limit droop to allow you to run lower ride heights without bottoming out the damper. All Diftech hats use high strength FK wide-series bearings with Teflon liners for maintenance free, quiet operation. This kit includes everything needed to fit Ohlins Road & Track dampers and springs.
- Fits Scion FR-S, Toyota 86/GT86, Subaru BRZ Front
- Fits Ohlins Road & Track coilover suspension
- Coaxial design for increased traction and reduced shock bind
- Increase compression stroke by 1/2in (13mm) compared to stock
- 3+ degrees of camber adjustment (more available with eccentric bolts)
- Simple to use slide type caster adjustment
- 7075-T6 aerospace aluminum alloy for extra rigidity and reduced weight
- Heavy duty 3/4" FK wide series spherical bearings
- Anodized black and grey finish for looks and durability
- Engineered, fabricated, and tested in the United States
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013 - 2016 | Scion | FR-S | Base |
| 2015 | Subaru | BRZ | Aozora Edition, Series.Blue |
| 2013 - 2017 | Subaru | BRZ | Premium, Limited, Base, Sport-tech |
| 2016 | Subaru | BRZ | Series.HyperBlue |
| 2017 | Subaru | BRZ | Series.Yellow |
| 2017 | Toyota | 86 | Special Edition, Base |
