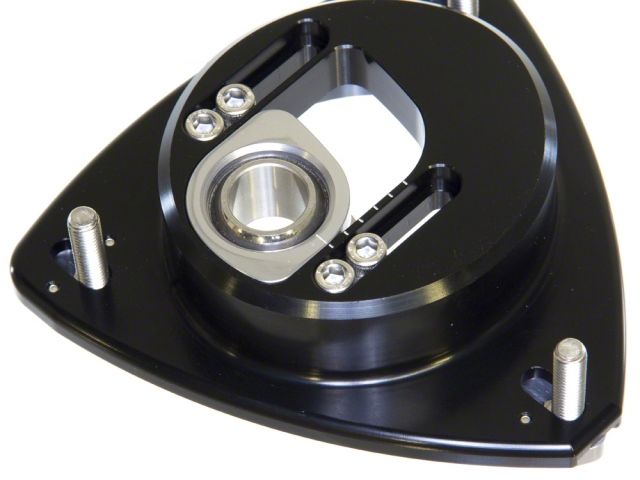

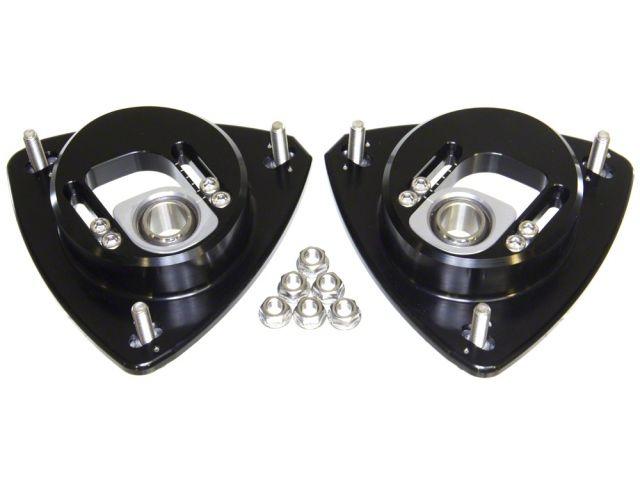

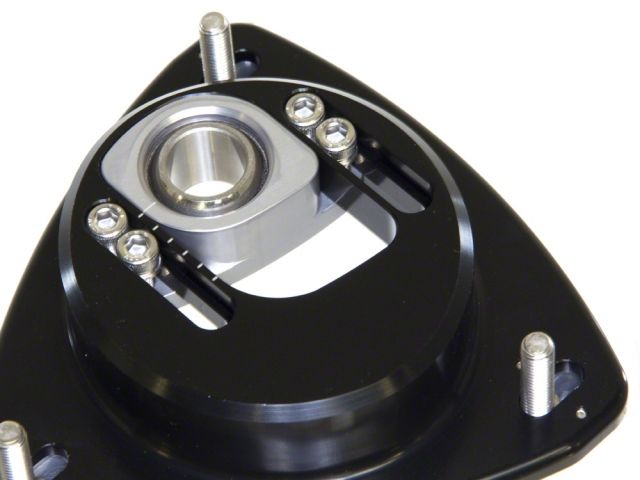

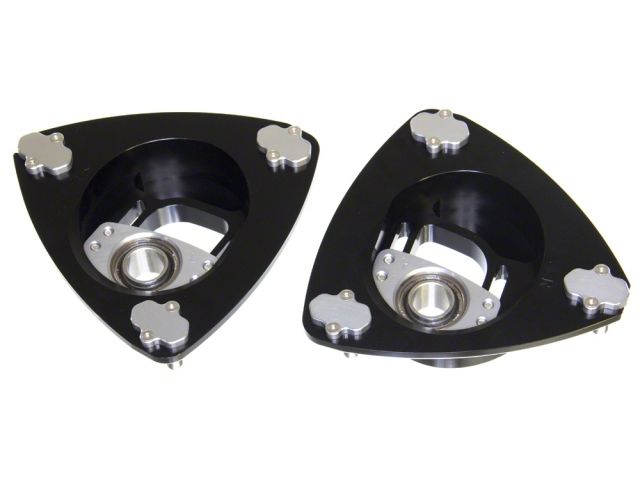

Diftech Adjustable Camber Caster Coilover Plates fits FR-S BRZ Front
These adjustable camber/caster plates for FR-S and BRZ are designed to give FT-86 drivers ultimate flexibility in front alignment. This high strength, lightweight package is designed for daily driven cars, as well as track day/autocross cars. Camber is adjustable from a positive, "camber correction" position to a full race negative setting. In addition, Diftech's simple slide caster adjustment can adjust from stock setting to an extra degree of caster all without even removing the wheels! With eccentric bolts, these plates can achieve 4.5+ degrees of camber and 7 degrees of caster!
Made in the USA from 7075 billet aluminum. These extended top hats also free up shock stroke and limit droop to allow you to run lower ride heights without bottoming out the damper. All Diftech hats use high strength FK wide-series bearings with Teflon liners for maintenance free, quiet operation. On-the-shelf install kits are available for most popular suspensions on the market and are required for installation. Customers can email us for custom install kits for specific racing applications.
- Fits Scion FR-S, Toyota 86/GT86, Subaru BRZ Front
- Coaxial design for increased traction and reduced shock bind
- Increase compression stroke by 1/2in (13mm) compared to stock
- 3+ degrees of camber adjustment (more available with eccentric bolts)
- Simple to use slide type caster adjustment
- 7075-T6 aerospace aluminum alloy for extra rigidity and reduced weight
- Heavy duty 3/4" FK wide series spherical bearings
- Anodized black and grey finish for looks and durability
- Install kit required (available for each shock brand)
- Custom install kit available (email us for your custom application)
- Engineered, fabricated, and tested in the United States
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013 - 2016 | Scion | FR-S | Base |
| 2015 | Subaru | BRZ | Series.Blue, Aozora Edition |
| 2016 | Subaru | BRZ | Series.HyperBlue |
| 2017 | Subaru | BRZ | Series.Yellow |
| 2013 - 2017 | Subaru | BRZ | Sport-tech, Premium, Limited, Base |
| 2017 | Toyota | 86 | Special Edition, Base |
