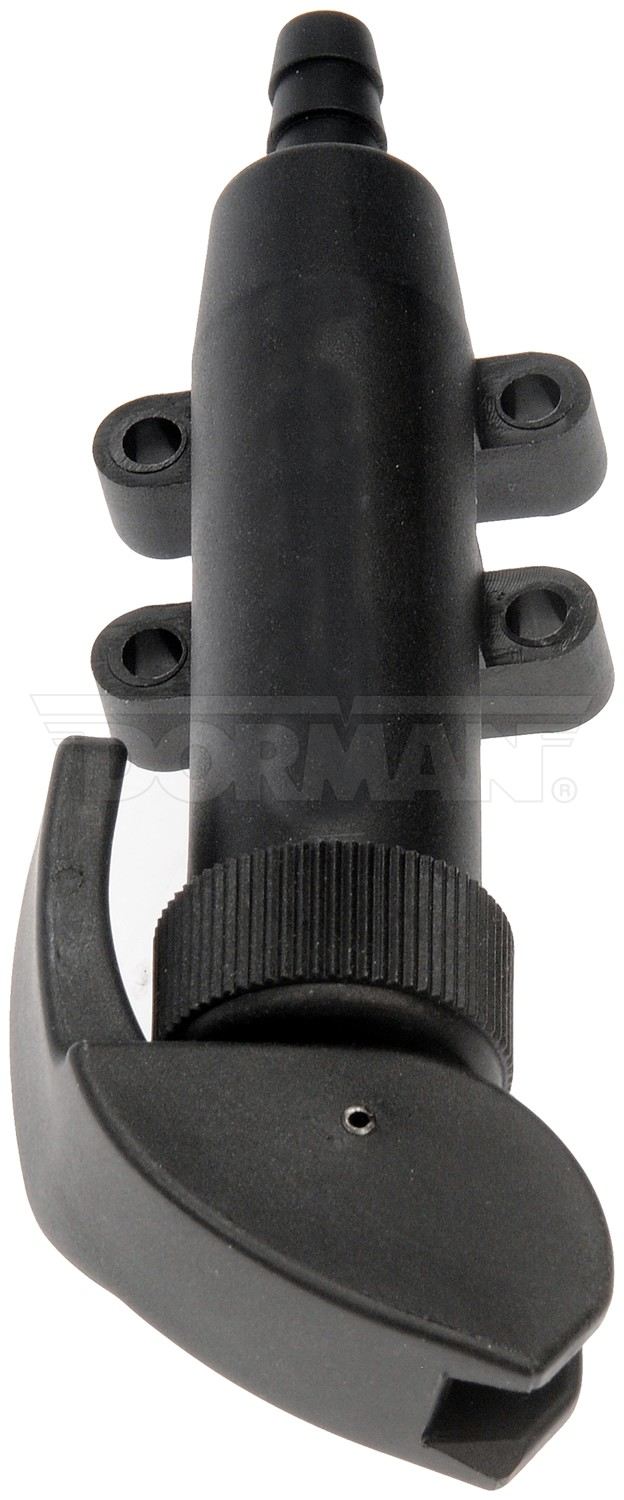

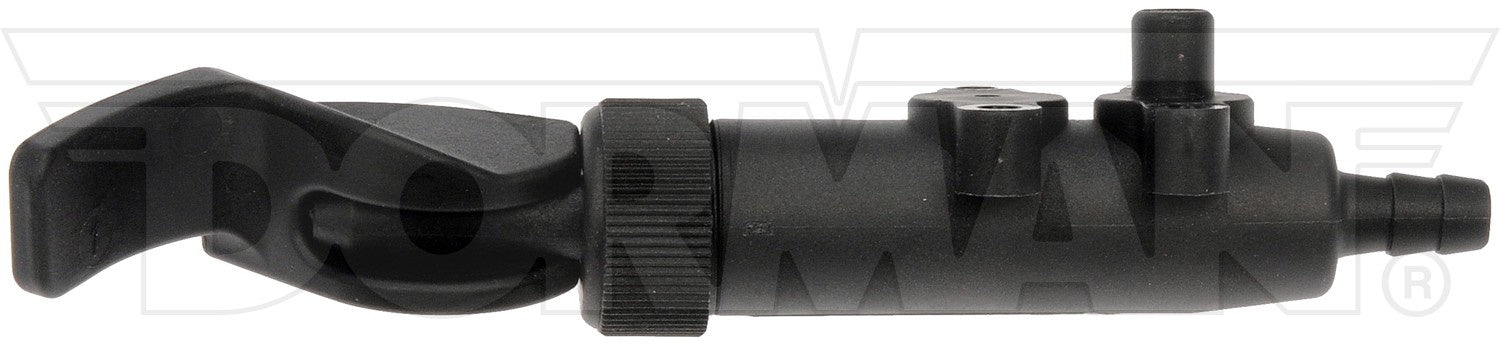

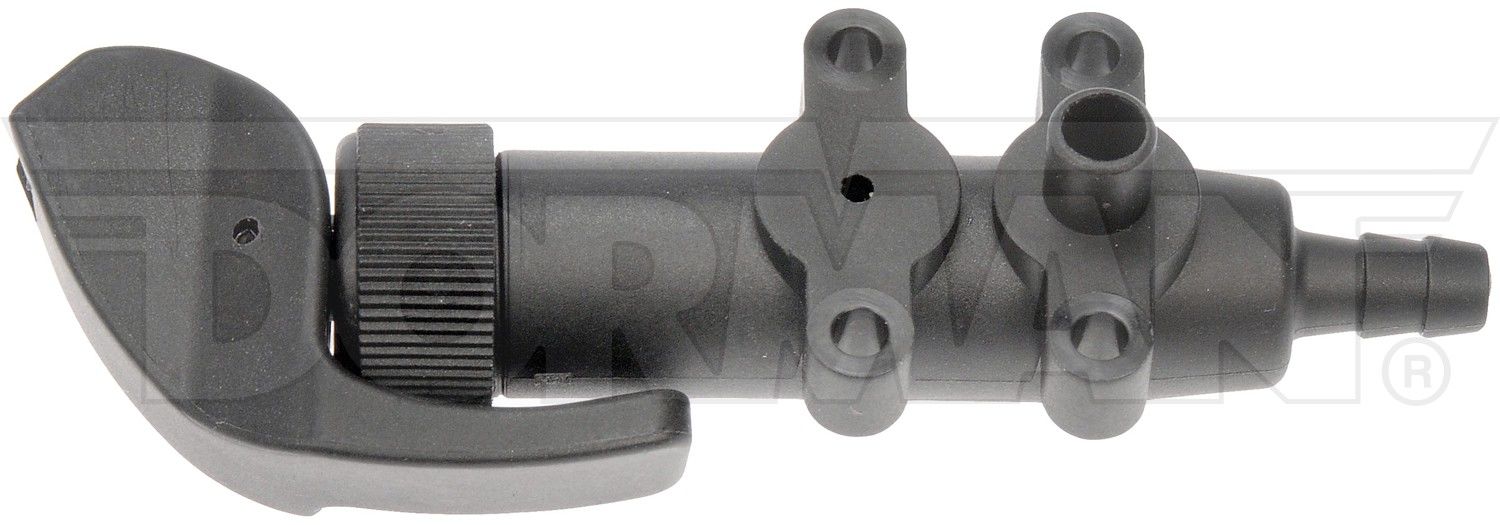

Dorman Diesel Filter Bowl Drain Valve

Dorman's Fuel Water Separator Valve effectively drains water from the fuel filter. It includes new mounting screws for easy installation.

• Lever allows water to drain from the fuel filter housing
• Includes fuel-resistant O-ring and gasket for a tight seal and to prevent leaks
• Direct replacement for a proper fit every time
• Durable plastic construction

Product Specifications

Color/Finish: Black

Fittings Included: No

Fuel System Type: Diesel

Gasket Inside Diameter: 7.65 mm; 104 Mm

Gasket Outside Diameter: 11.2 mm; 109.2 Mm

Gasket Thickness: 1.8 mm; 2.6 Mm

Housing Material: Plastic

Inlet Attachment Type: Hose Barb

Inlet Diameter (in): 0.29 In.

Installation Hardware Included: Yes

Marine Approved: No

Mounting Hardware Included: Yes

Outlet Attachment Type: Hose Barb

Outlet Diameter (in): 0.15 In.

Overall Length (In): 3.5 In.

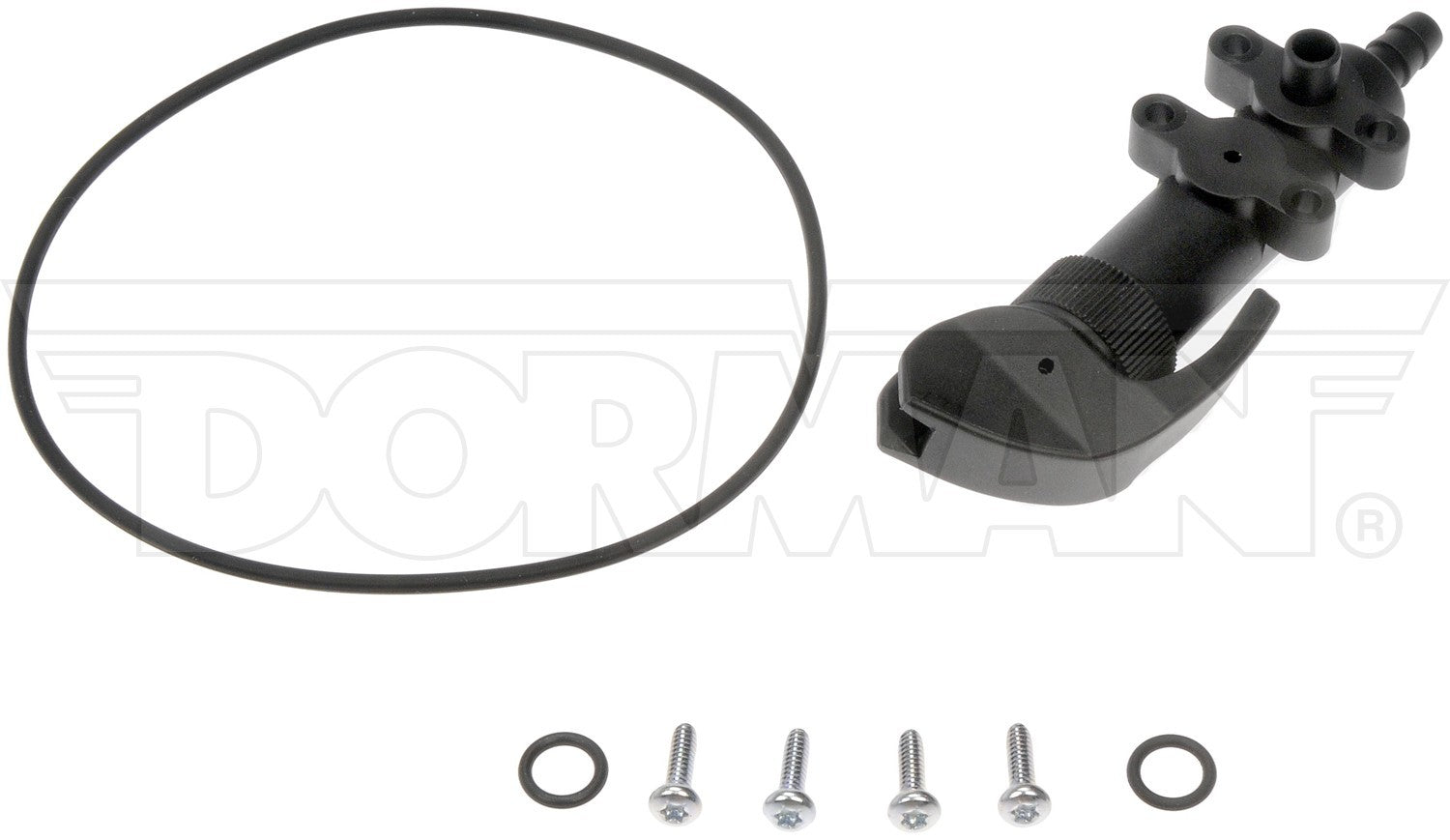

Package Contents: 1 Drain Valve; 3 O-Rings; 4 Screws

Package Quantity: 1

Packaging Type: Box

Port Quantity: 0

Reservoir Included: No

Serviceable: Yes

Type: Filter Bowl Drain Valve

Application Summary: Dodge Ram 2500 2001-00, Dodge Ram 3500 2001-00

Vehicle Fitments:
