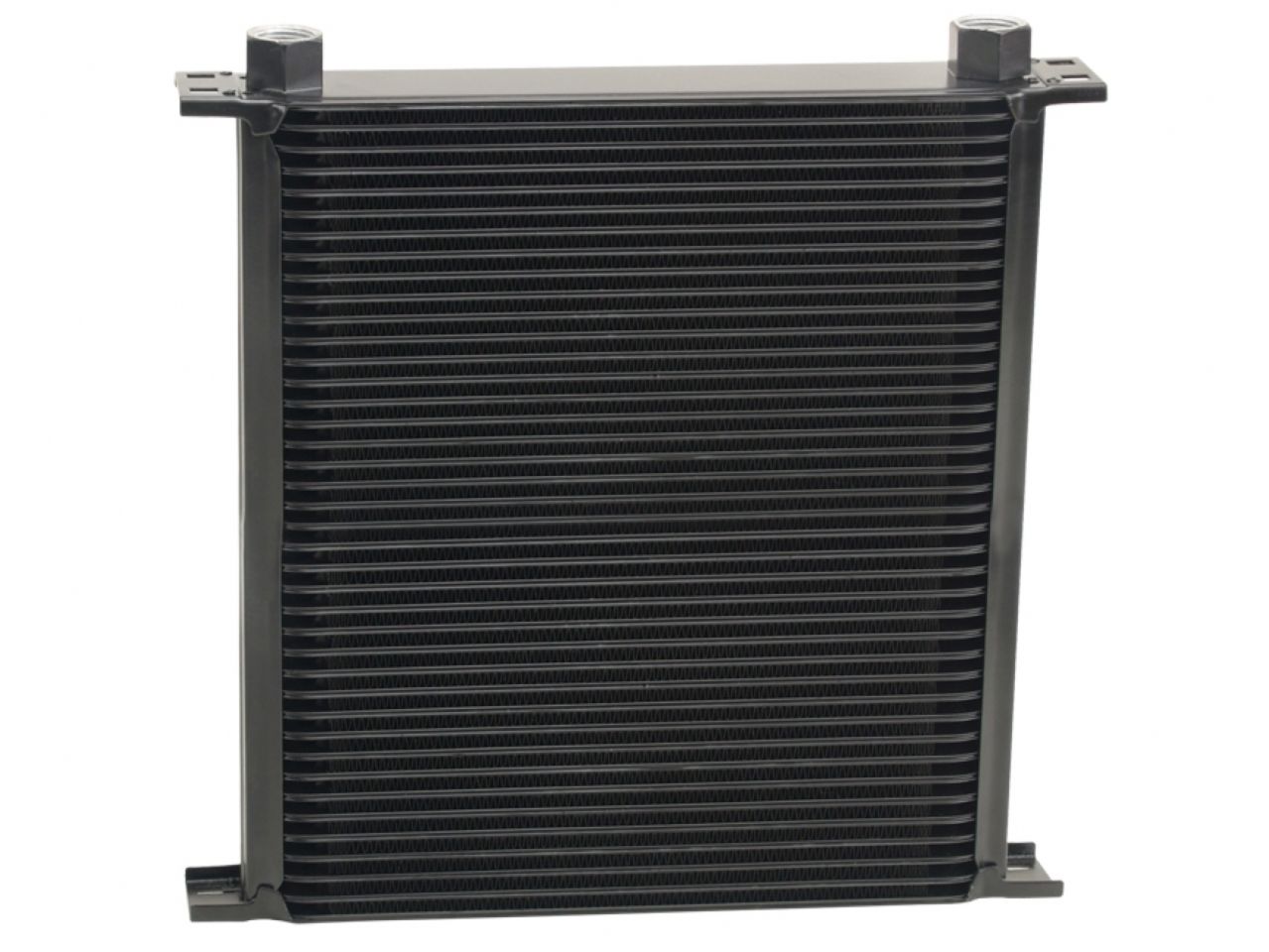

Derale Stack Plate 40 Row Cooler Core (-10AN O-ring)

Our most efficient heat exchanger, the all aluminum 40 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish with -10AN (7/8-14) O-ring inlets and outlets. With minimal pressure drop it can be used for engine, transmission or fuel cooling.

Features:

Designed for engine and transmission cooling

Most efficient heat exchangers available

Furnace brazed aluminum construction with 4 integrated mounting brackets

40 row cooler design

Female -10AN O-ring inlets

67,000 BTU's Per Hour

26oz additional fluid capacity

Specifications:

• Cooler style: Stack Plate
• Construction: Aluminum
• Inlet size: -10AN o-ring female x -10AN male
• Width: 13"
• Height: 12-3/4"
• Depth: 2"
• Inlet dim: 10"
• Mounting: 12-1/4" x 12"
• 67,000 BTU's Per Hour
