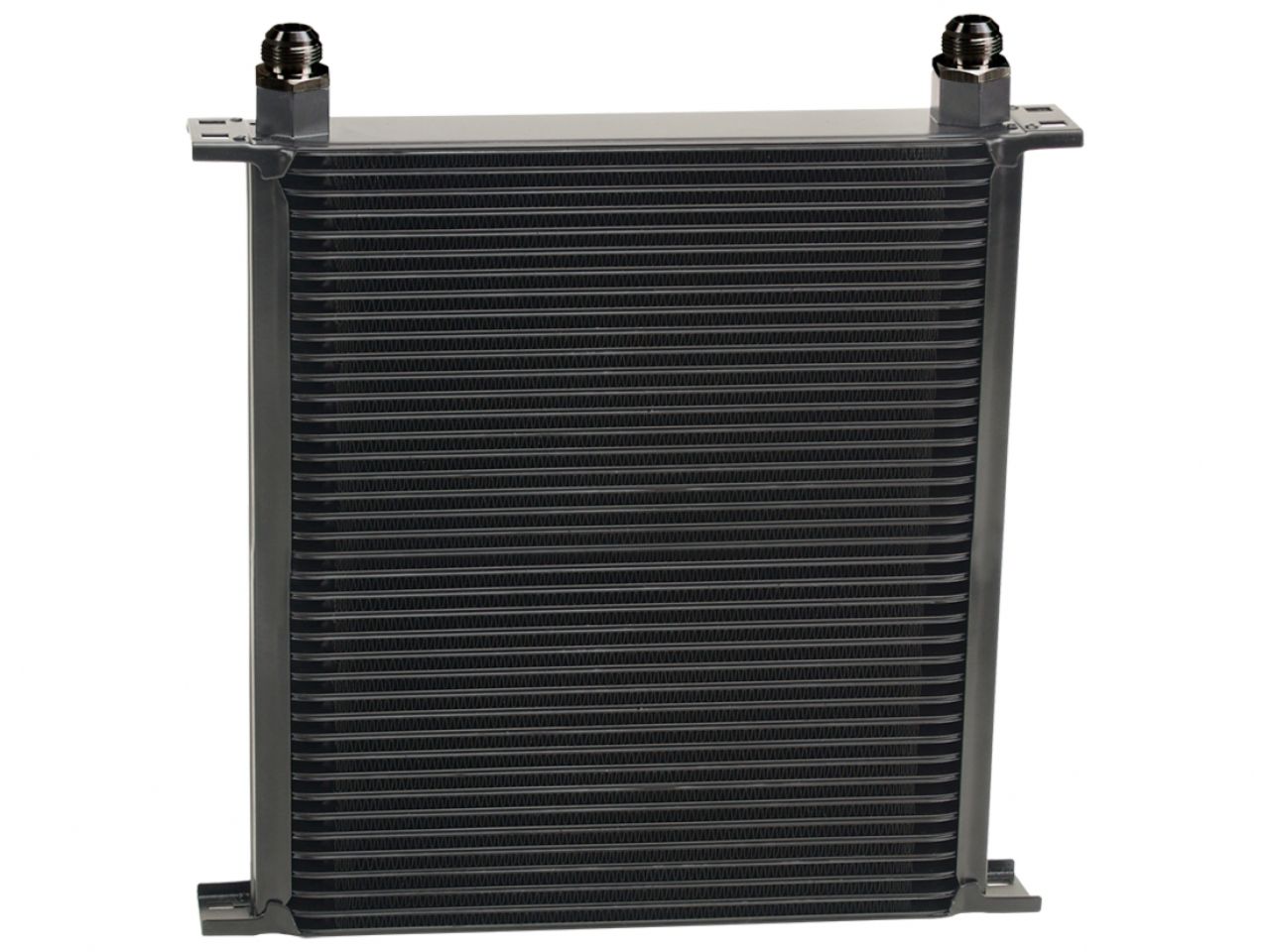

Derale Stack Plate Oil Cooler 40 Row (-10AN)

Our most efficient heat exchanger, the all aluminum 40 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes aluminum -10AN male adapter fittings.

Features

• Designed for engine and transmission cooling
• Most efficient heat exchangers available
• Furnace brazed aluminum construction with 4 integrated mounting brackets
• 40 row cooler design
• Male -10AN aluminum O-ring inlet fittings
• 67,000 BTU's Per Hour
• 26oz additional fluid capacity

Specifications

• Cooler style: Stack Plate
• Construction: Aluminum
• Inlet size: -10AN o-ring female x -10AN male
• Width: 13"
• Height: 13-7/8"
• Depth: 2"
• Inlet dim: 10"
• Mounting: 12-1/4" x 12"
• 67,000 BTU's Per Hour
