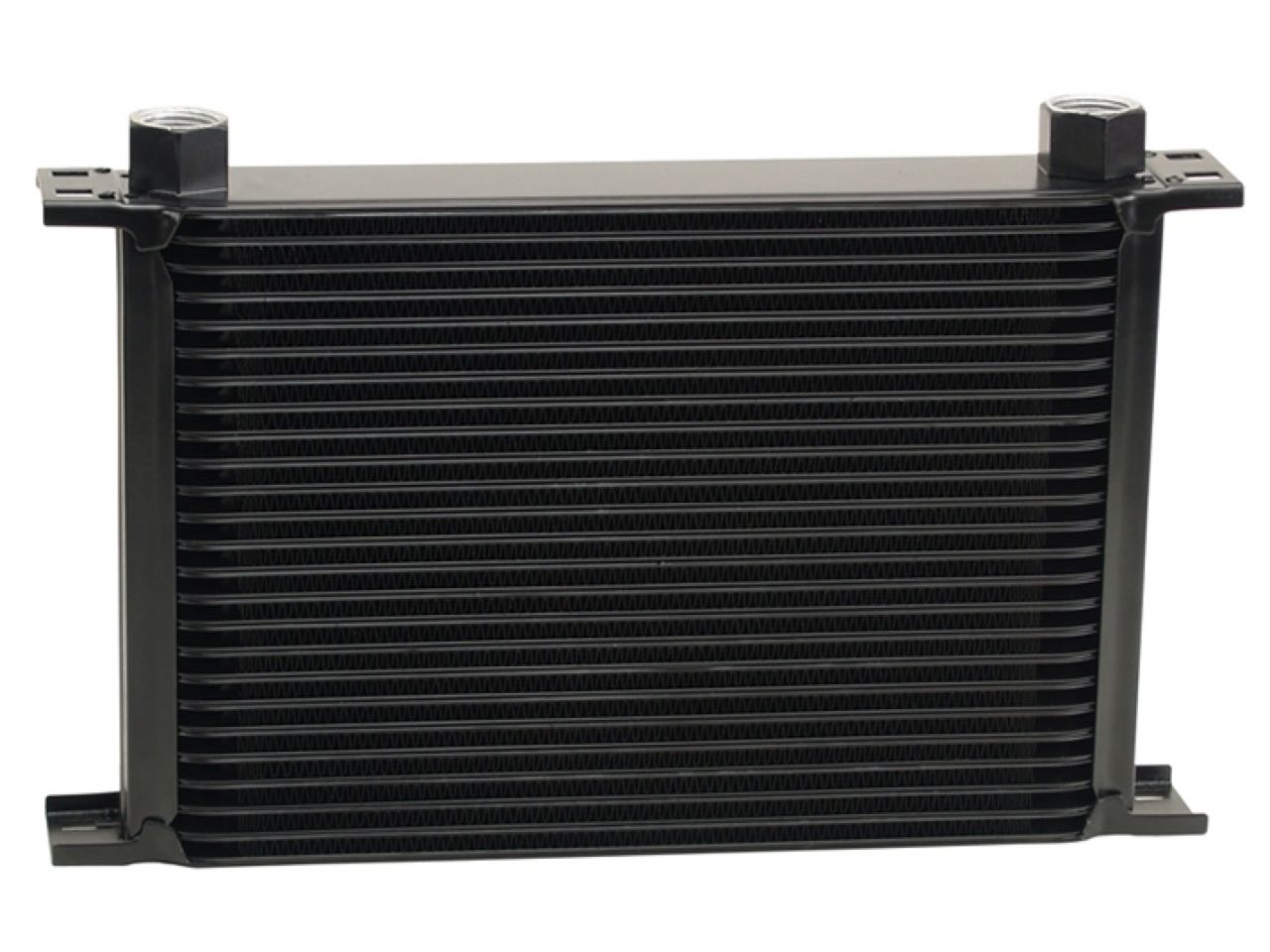

Derale Stack Plate 25 Row Cooler Core (-10AN O-ring)
Most efficient heat exchanger, the all aluminum 25 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish with -10AN (7/8-14) O-ring inlets and outlets. With minimal pressure drop it can be used for engine, transmission or fuel cooling.
Specifications
- Cooler style: Stack Plate
- Construction: Aluminum
- Inlet size: -10AN o-ring female

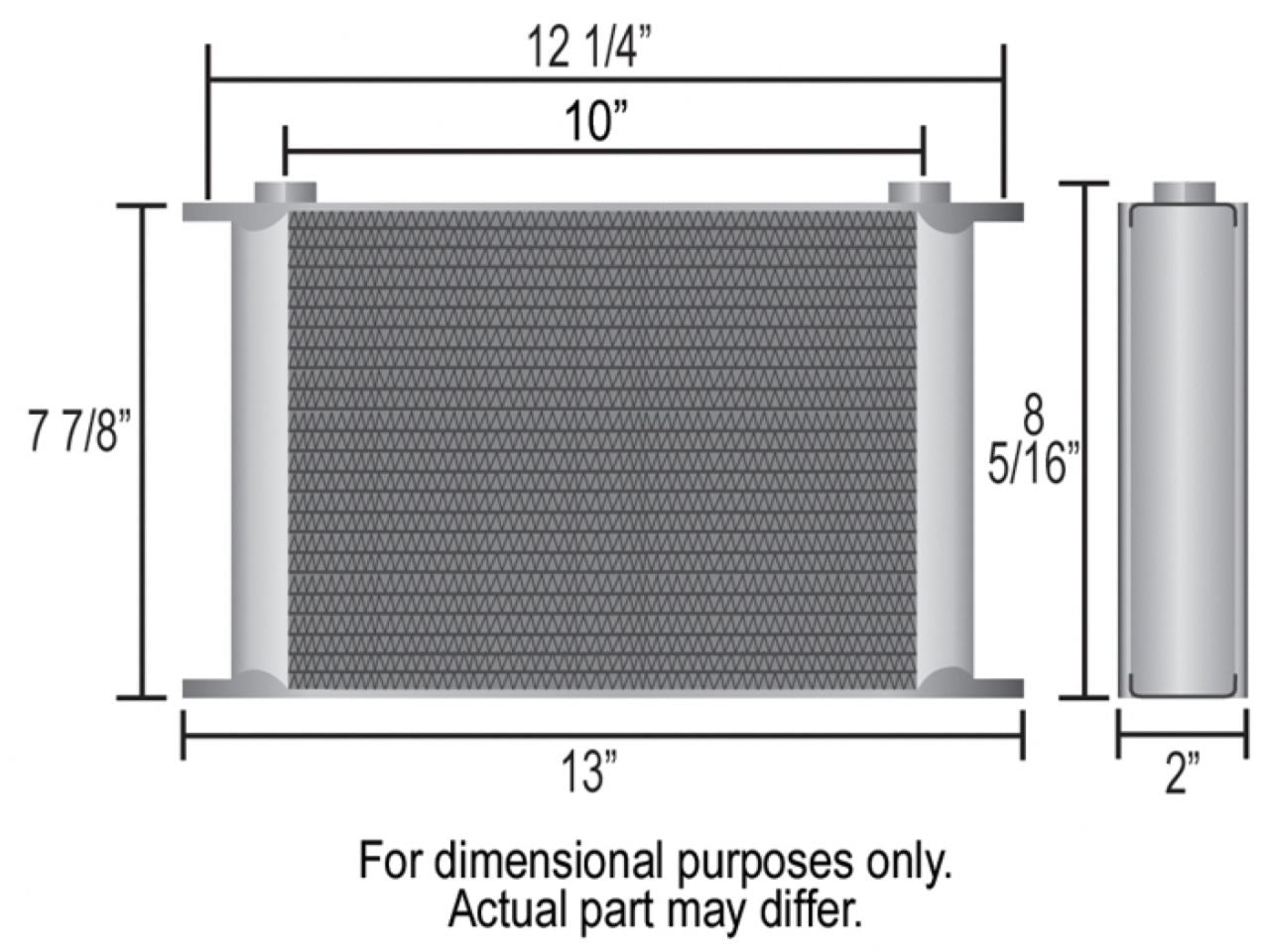

- Width: 13"
- Height: 8-5/16"
- Depth: 2"
- Inlet dim: 10"
- Mounting: 12-1/4" x 7-5/8"
- 46,000 BTU's Per Hour
Features
- Designed for engine and transmission cooling
- Most efficient heat exchangers available
- Furnace brazed aluminum construction with 4 integrated mounting brackets
- 25 row cooler design
- Female -10AN O-ring inlets
- 46,000 BTU's Per Hour
Derale Stack Plate 25 Row Cooler Core (-10AN O-ring)
Sale price$173.11 USD
