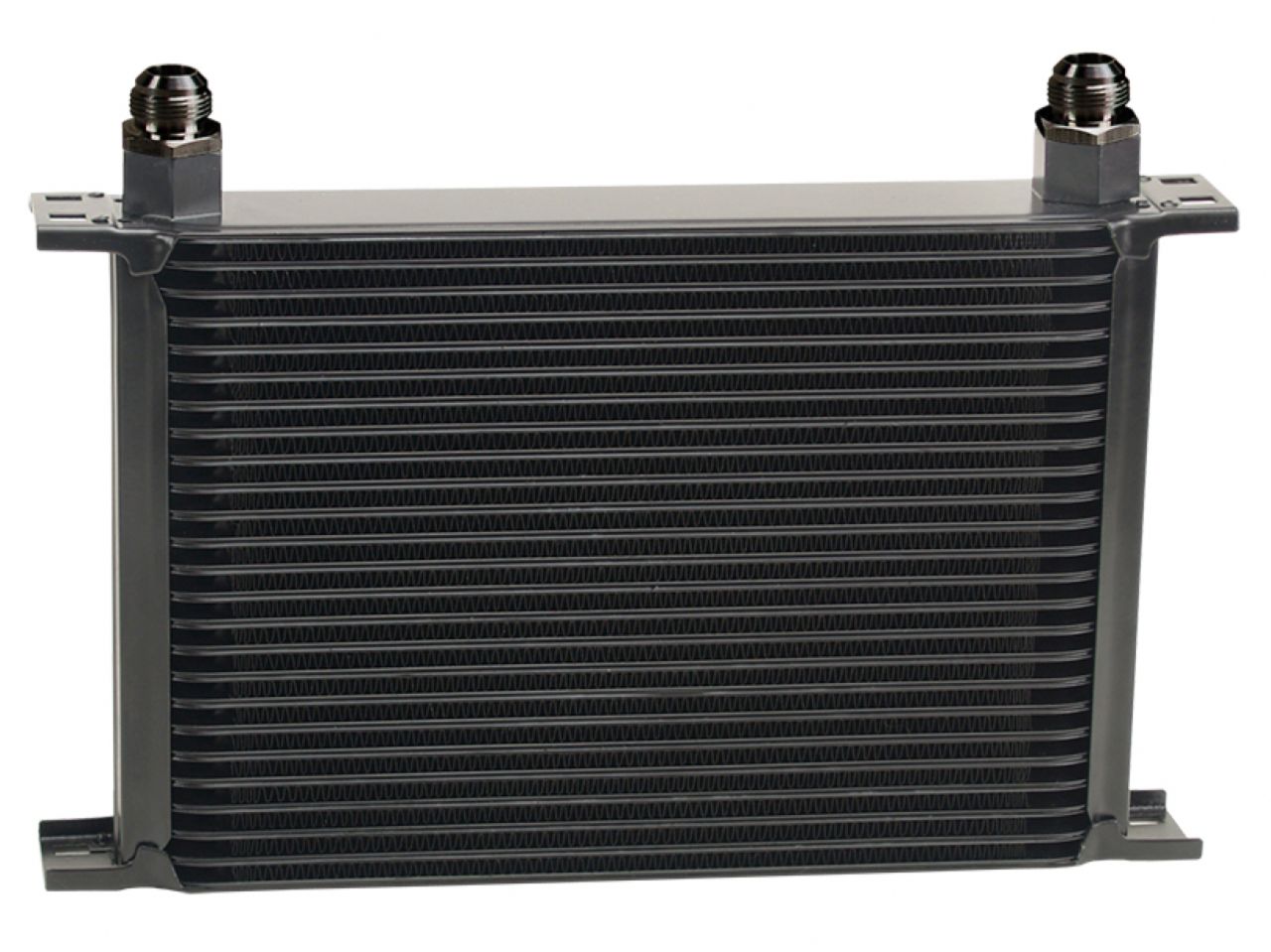

Derale Stack Plate Oil Cooler 25 Row (-10AN)
The all aluminum 25 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes aluminum -10AN male adapter fittings.
Specifications
- Cooler style: Stack Plate
- Construction: Aluminum
- Inlet size: -10AN o-ring female x -10AN male
- Width: 13"
- Height: 9-9/16"
- Depth: 2"
- Inlet dim: 10"
- Mounting: 12-1/4" x 7-5/8"
- 46,000 BTU's Per Hour
Features
- Designed for engine and transmission cooling
- Most efficient heat exchangers available
- Furnace brazed aluminum construction with 4 integrated mounting brackets
- 25 row cooler design
- Male -10AN aluminum O-ring inlet fittings
- 46,000 BTU's Per Hour
Derale Stack Plate Oil Cooler 25 Row (-10AN)
Sale price$193.59 USD
