Derale Stack Plate 19 Row Cooler Core (-10AN O-ring)

Derale Stack Plate 19 Row Cooler Core (-10AN O-ring)

sku: 144QJ | mpn: 51978
$277.66
$277.66 $277.66
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

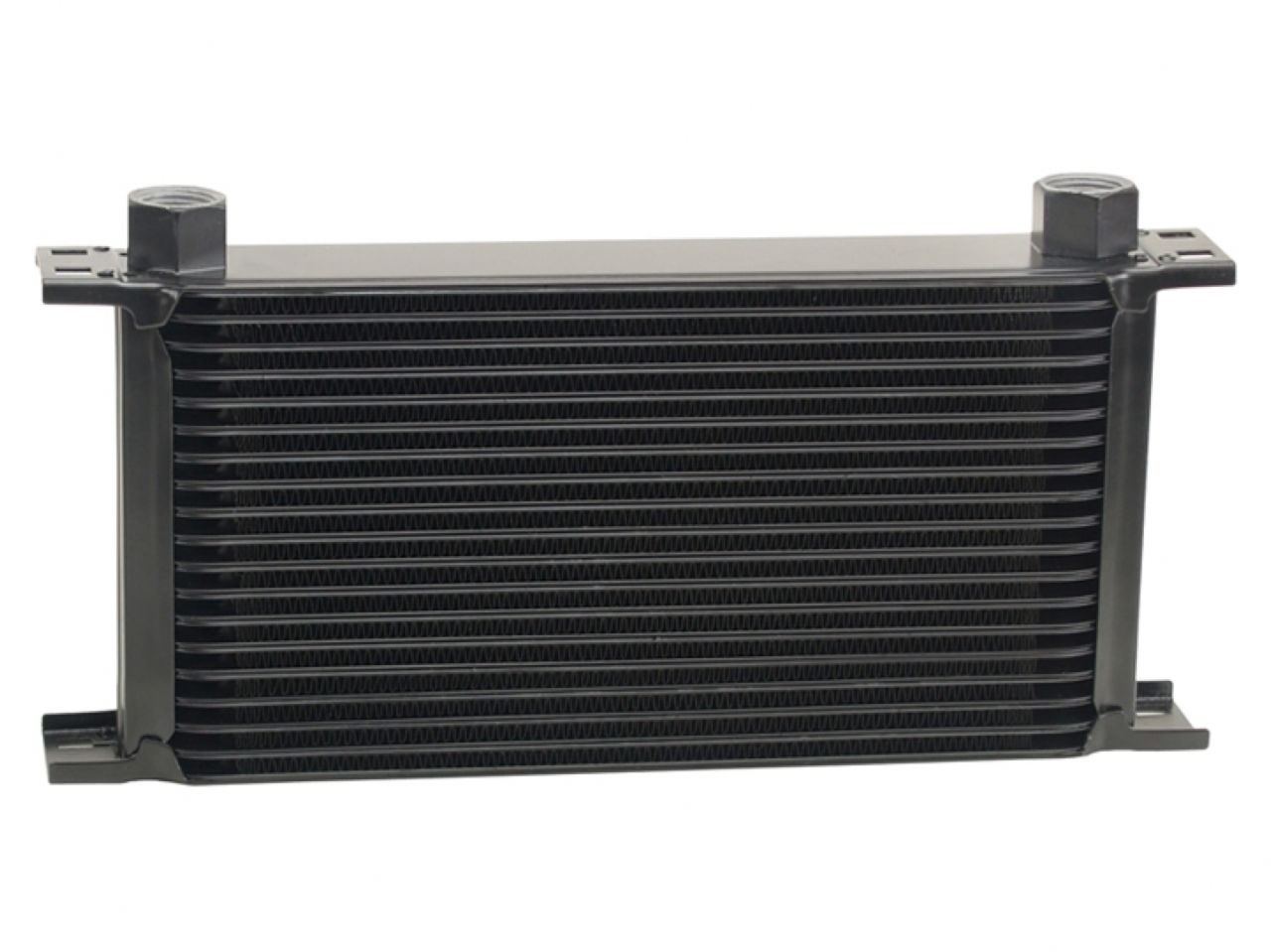

Our most efficient heat exchanger, the all aluminum 19 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish with -10AN (7/8-14) O-ring inlets and outlets. With minimal pressure drop it can be used for engine, transmission or fuel cooling.

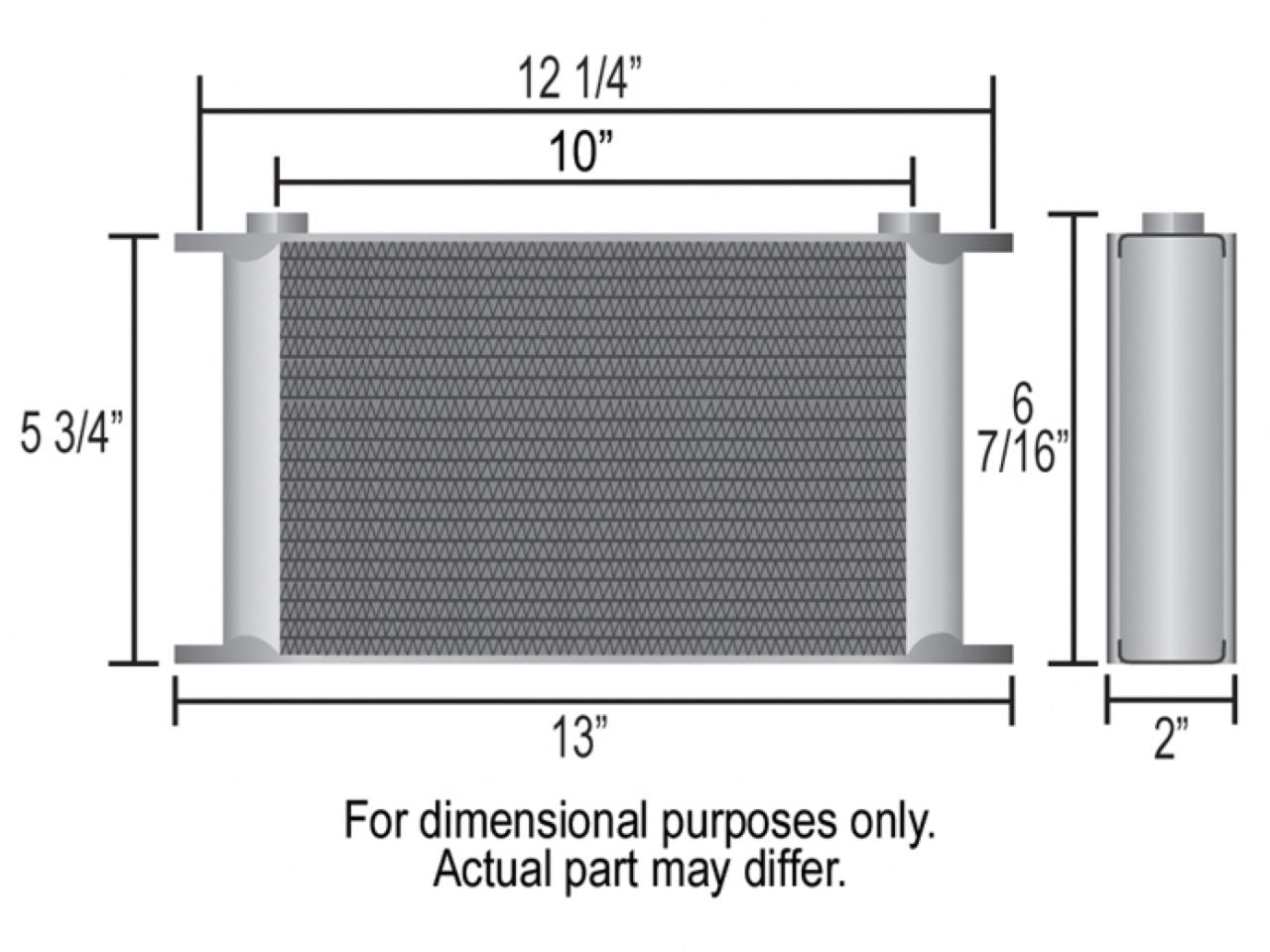

Specifications
  • Cooler style: Stack Plate
  • Construction: Aluminum
  • Inlet size: -10AN o-ring female
  • Width: 13"
  • Height: 6-7/16"
  • Depth: 2"
  • Inlet dim: 10"
  • Mounting: 12-1/4" x 5-3/4"
  • 37,000 BTU's Per Hour
Features
  • Designed for engine and transmission cooling
  • Most efficient heat exchangers available
  • Furnace brazed aluminum construction with 4 integrated mounting brackets
  • 19 row cooler design
  • Female -10AN O-ring inlets
  • 37,000 BTU's Per Hour
