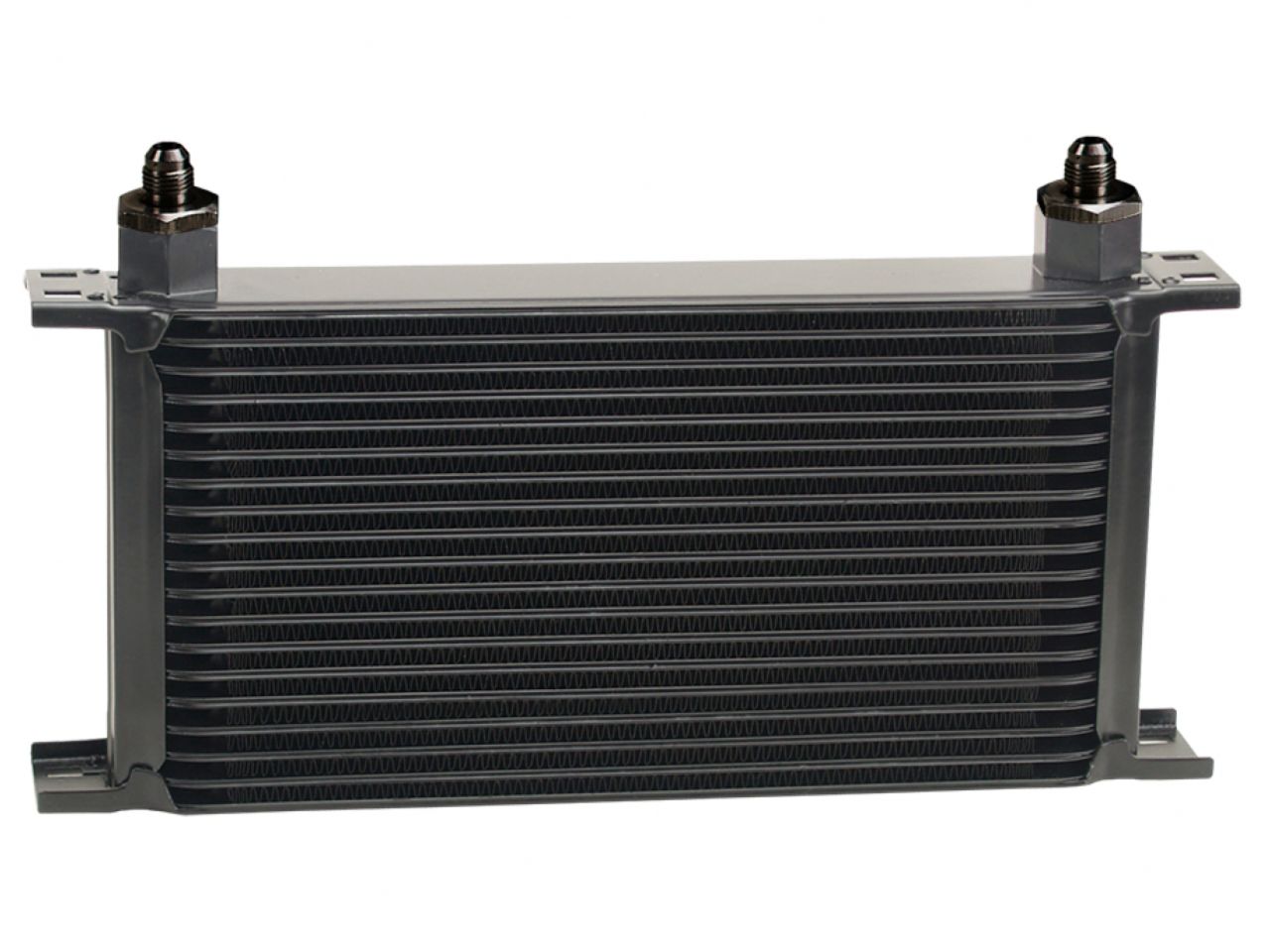

Derale Stack Plate Oil Cooler 19 Row (-6AN)

Our most efficient heat exchanger, the all aluminum 19 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes black aluminum anodized finished -6AN male adapter fittings.

Specifications

• Cooler style: Stack Plate
• Construction: Aluminum
• Inlet size: -10AN o-ring female x -6AN male
• Width: 13"
• Height: 7-5/16"
• Depth: 2"
• Inlet dim: 10"
• Mounting: 12-1/4" x5-3/4"
• 37,000 BTU's Per Hour
• Derale coolers are rated at 250psi working pressure and 300psi burst strength
• 12oz additional fluid capacity

Features

• Designed for engine and transmission cooling
• Most efficient heat exchangers available
• Furnace brazed aluminum construction with 4 integrated mounting brackets
• 19 row cooler design
• Male -6AN aluminum O-ring inlet fittings
