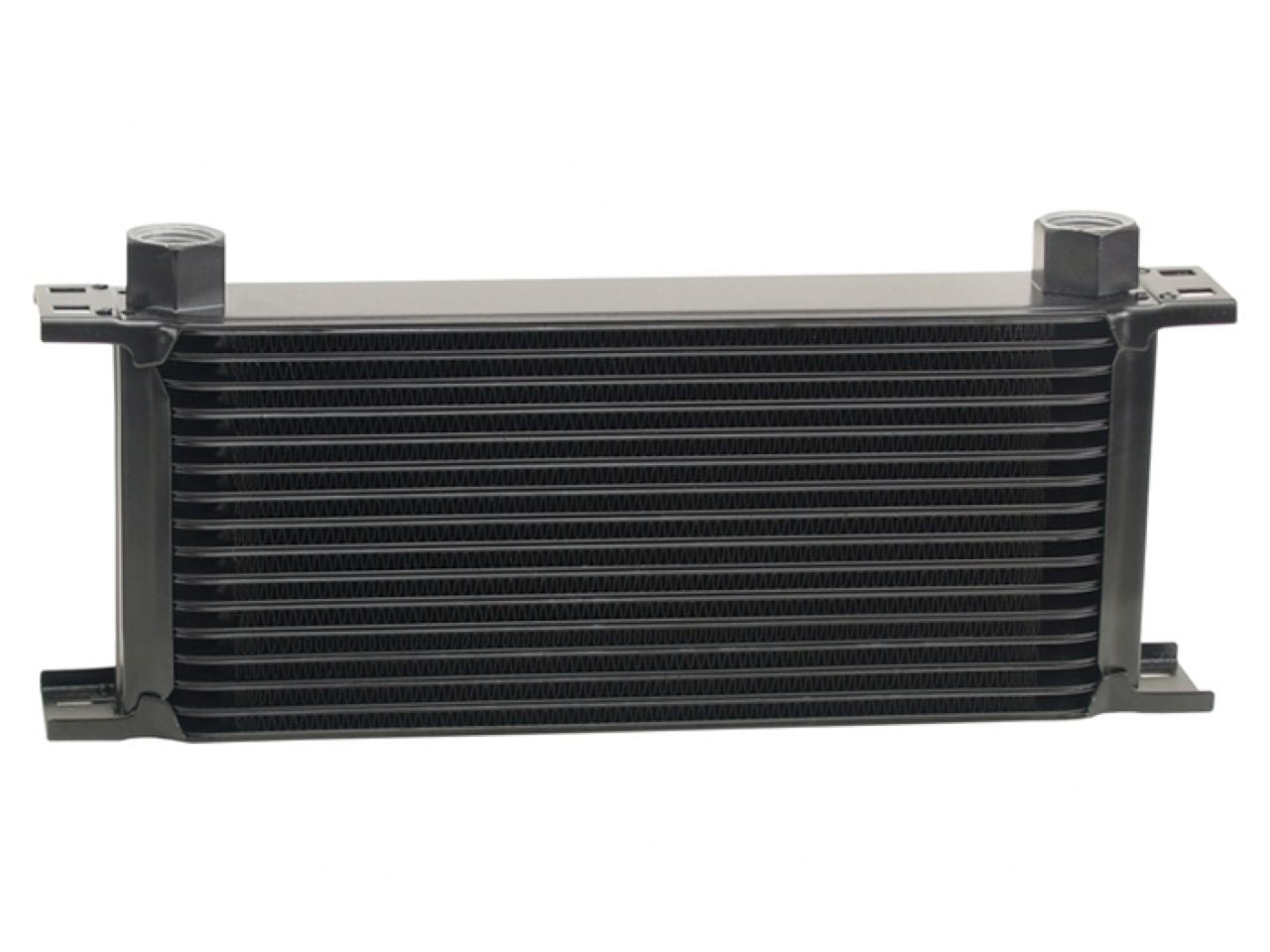

Derale Stack Plate 16 Row Cooler Core (-10AN O-ring)

Our most efficient heat exchanger, the all aluminum 16 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish with -10AN (7/8-14) O-ring inlets and outlets. With minimal pressure drop it can be used for engine, transmission or fuel cooling.

Features

• Designed for engine and transmission cooling
• Most efficient heat exchangers available
• Furnace brazed aluminum construction with 4 integrated mounting brackets
• 16 row cooler design
• Female -10AN O-ring inlets
• 32,000 BTU's Per Hour

Specifications

• Cooler style: Stack Plate
• Construction: Aluminum
• Inlet size: -10AN o-ring female
• Width: 13"
• Height: 5-9/16"
• Depth: 2"
• Inlet dim: 10"
• Mounting: 12-1/4" x 4-7/8"
• 32,000 BTU's Per Hour
