Derale Stack Plate Oil Cooler 16 Row Series 10000 (-8AN)
Stack Plate Oil Cooler 16 Row Series 10000 (-8AN)
Description
Our most efficient heat exchanger, the all aluminum 16 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes aluminum -8AN male adapter fittings.
Specifications
- Cooler style: Stack Plate
- Construction: Aluminum
- Inlet size: -10AN - 7/8"-14 o-ring female x -8AN male

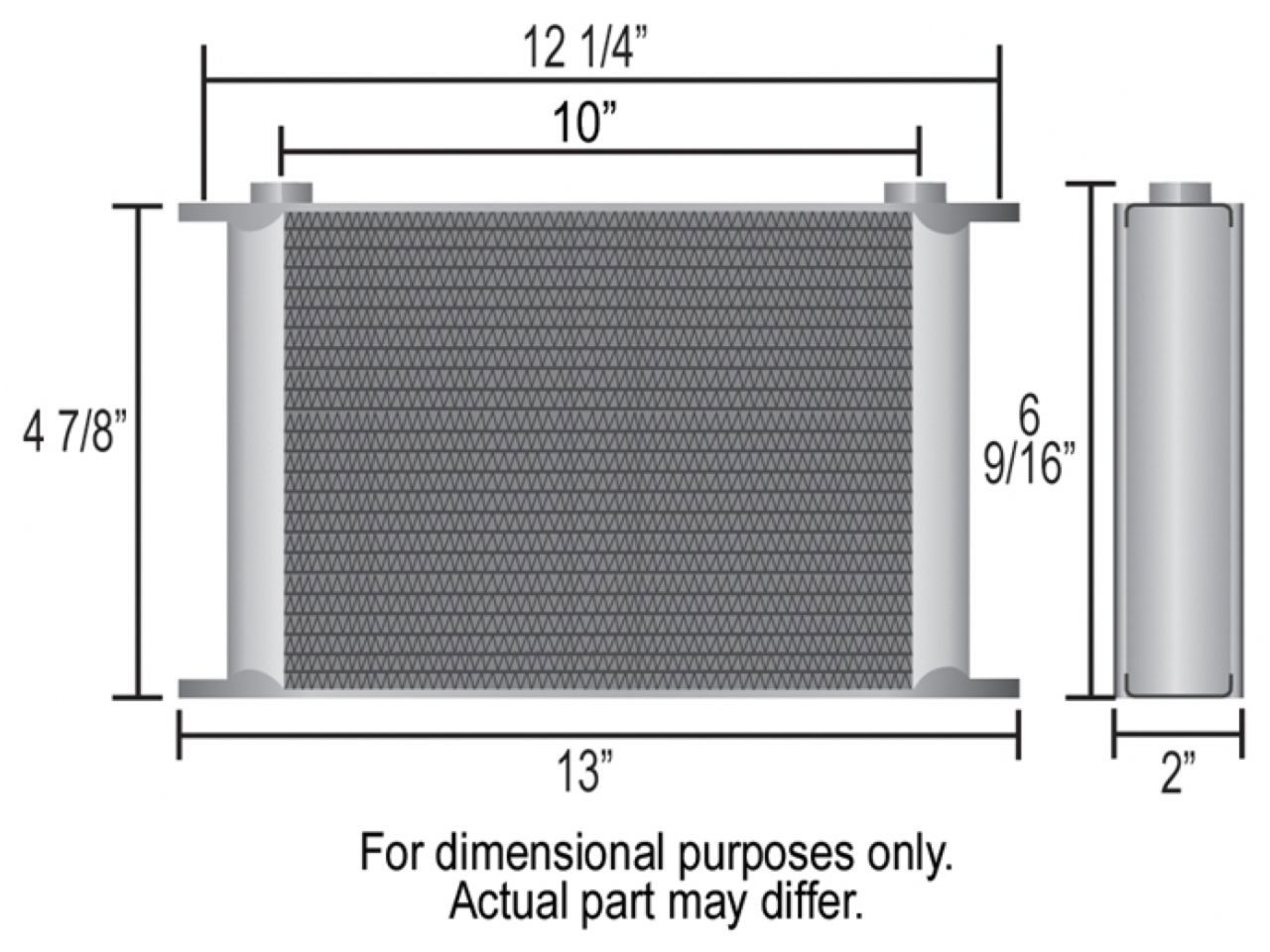

- Width: 13"
- Height: 6-9/16"
- Depth: 2"
- Inlet dim: 10"
- Mounting: 12-1/4" x 4-7/8"
- 32,000 BTU's Per Hour
Features
- Designed for engine and transmission cooling
- Most efficient heat exchangers available
- Furnace brazed aluminum construction with 4 integrated mounting brackets
- 16 row cooler design
- Cooler capacity is an additional 10oz
- Male -8AN aluminum O-ring inlet fittings
Derale Stack Plate Oil Cooler 16 Row Series 10000 (-8AN)
Sale price$142.14 USD
