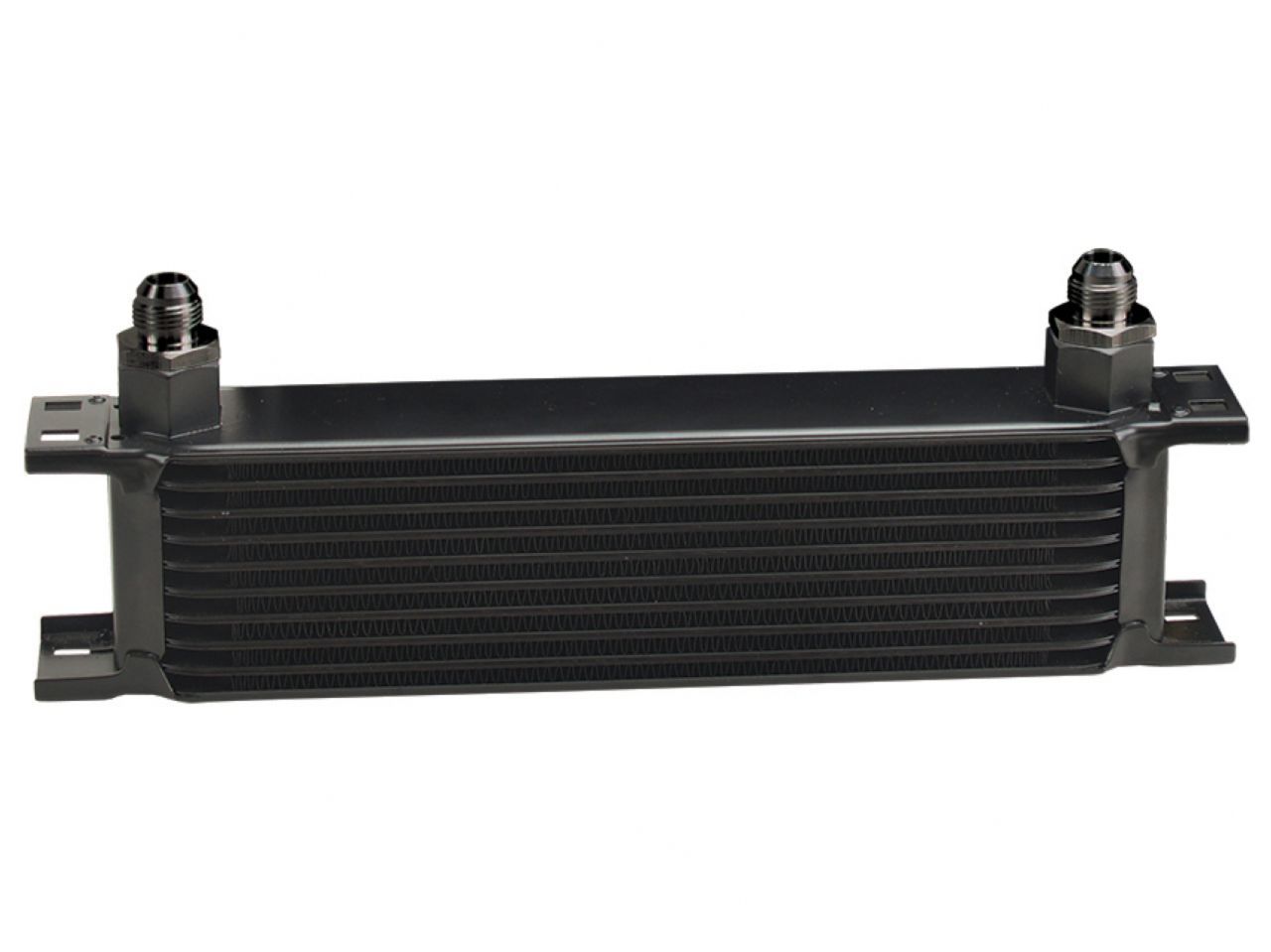

Derale Stack Plate Oil Cooler 10 Row (-8AN)
Our most efficient heat exchanger, the all aluminum 10 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes bright aluminum anodized finished -8AN male adapter fittings.
Specifications
- Cooler style: Stack Plate
- Construction: Aluminum
- Inlet size: -10AN o-ring female x -8AN male

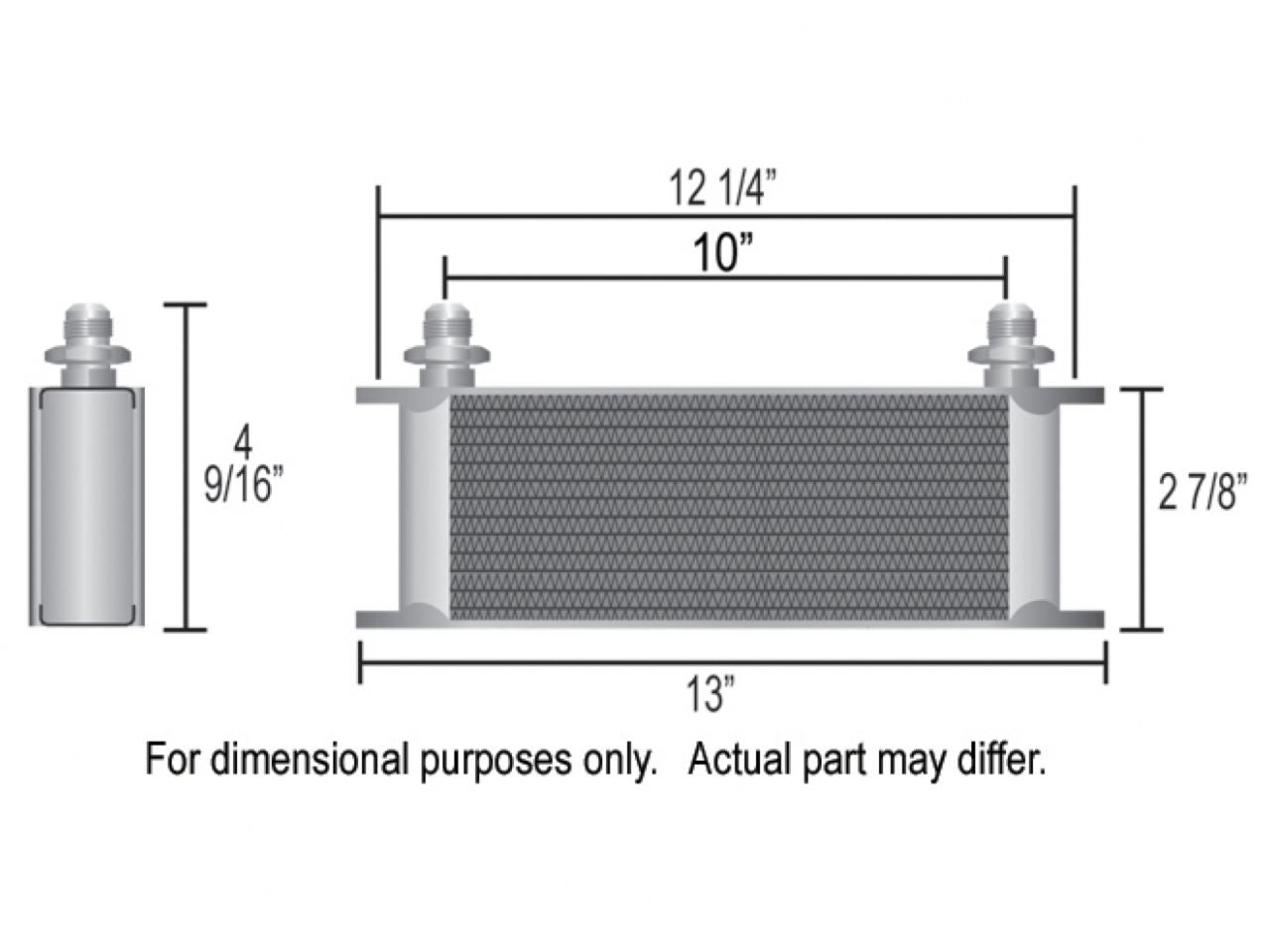

- Width: 13"
- Height: 4-9/16"
- Depth: 2"
- Inlet dim: 10"
- Mounting: 12-1/4" x 2-7/8"
Features
- Designed for engine and transmission cooling
- Most efficient heat exchangers available
- Furnace brazed aluminum construction with 4 integrated mounting brackets
- 10 row cooler design
- Male -8AN aluminum O-ring inlet fittings
- 20,000 BTU's Per Hour
- Cooler capacity is an additional 6oz
Derale Stack Plate Oil Cooler 10 Row (-8AN)
Sale price$112.74 USD
