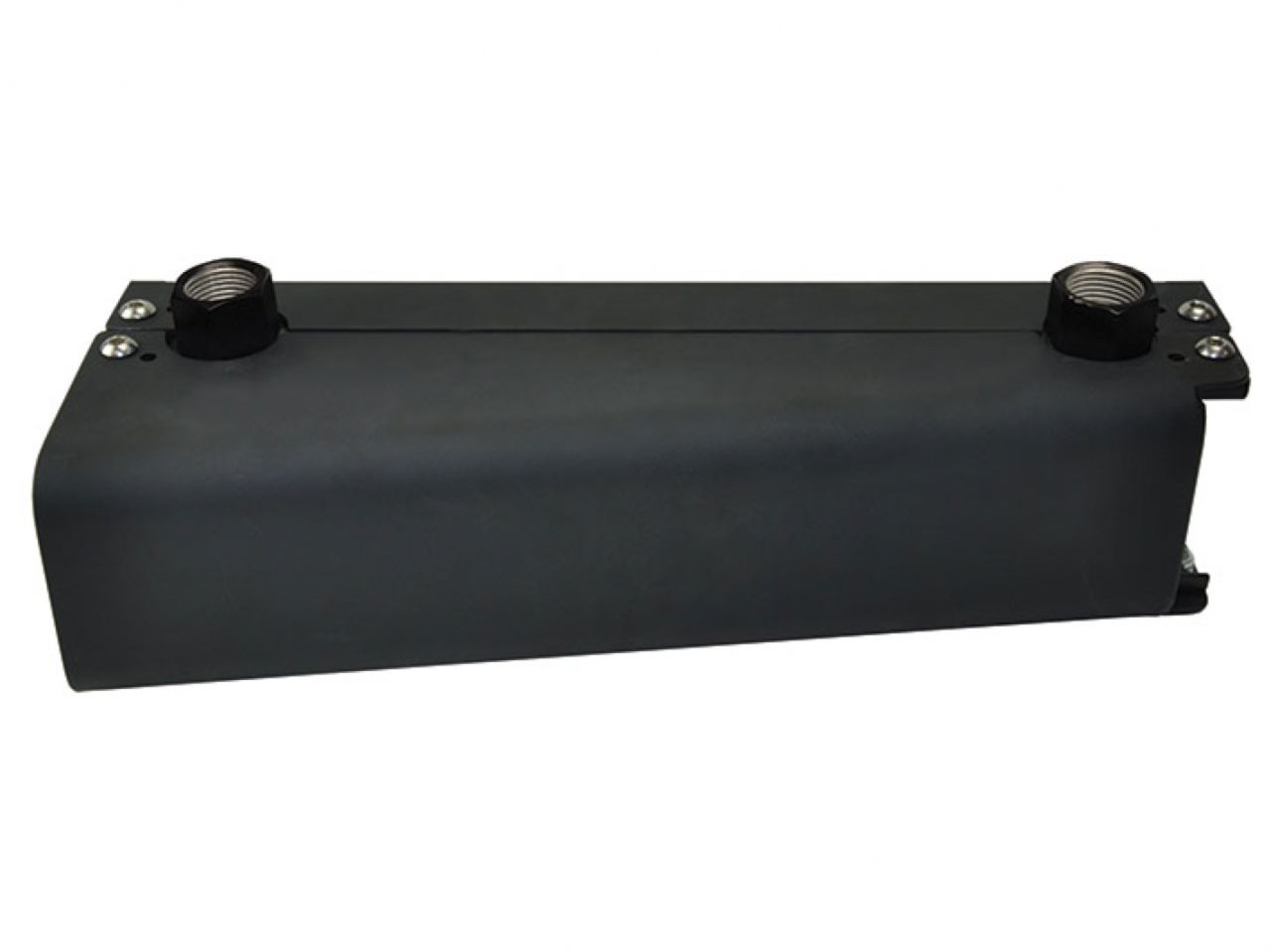

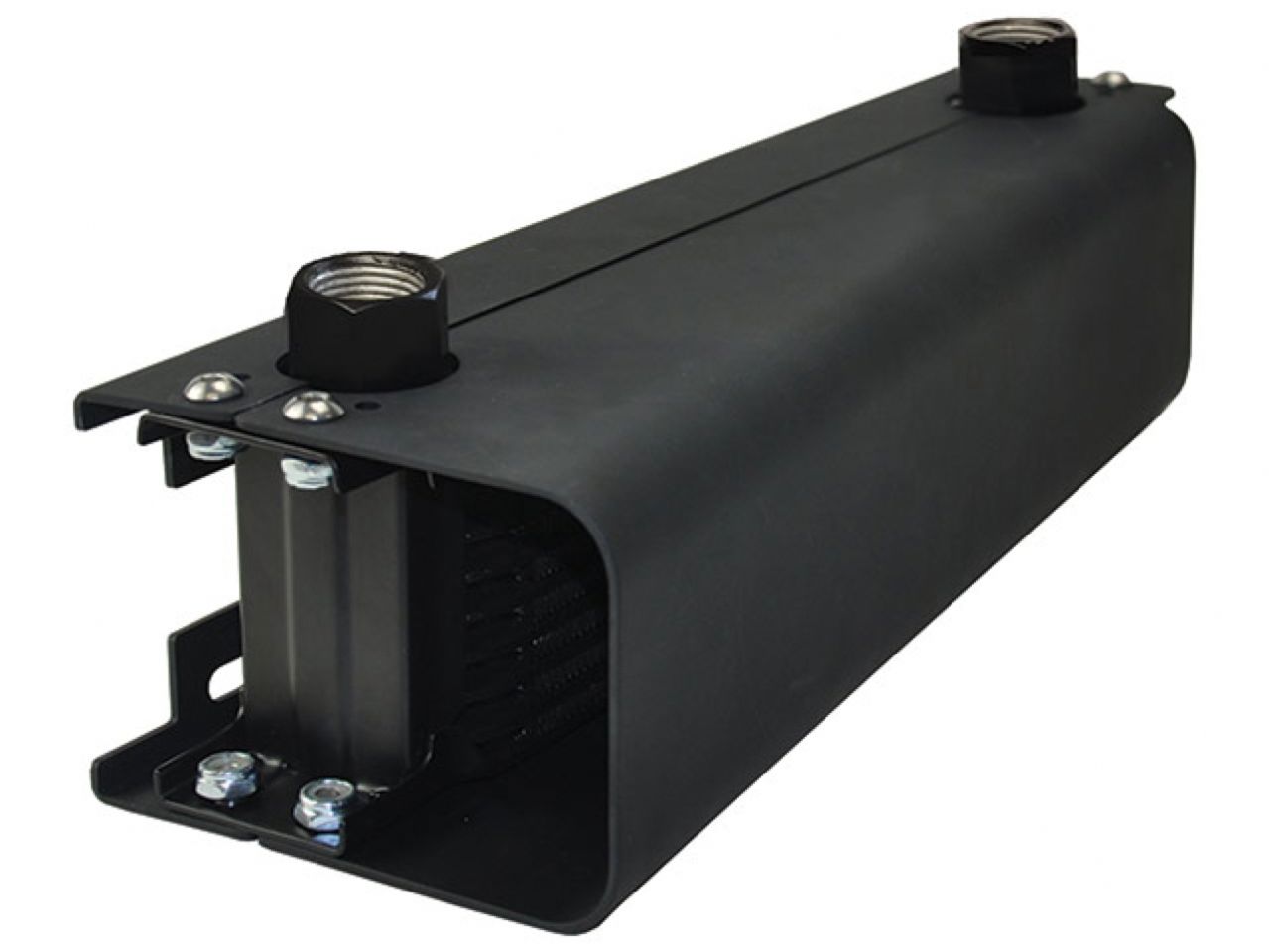

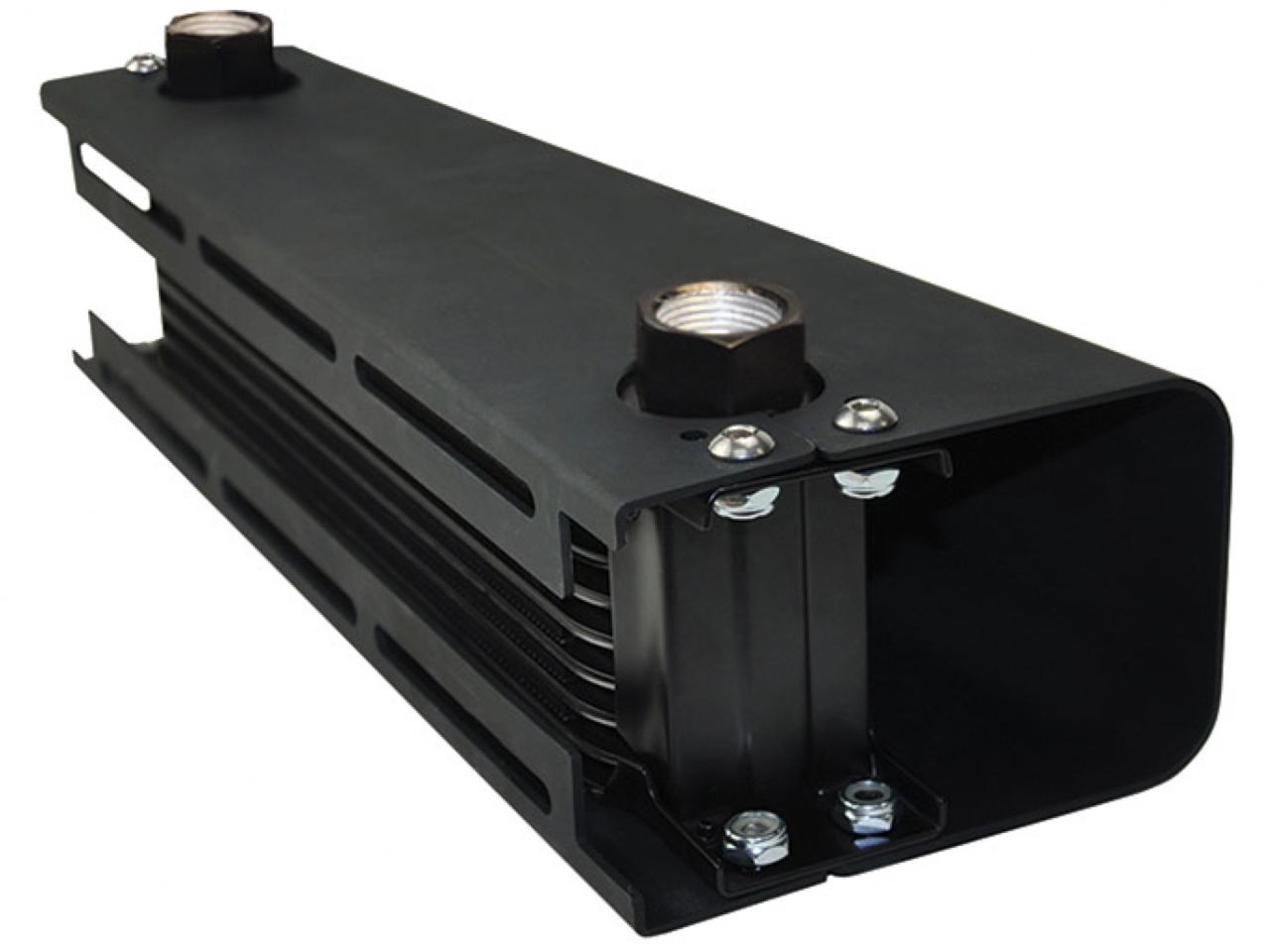

Derale Stack Plate Scoop Cooler (-10AN O-ring)
Derale Performance's Scoop Cooler is another industry exclusive, using Ram Air technology to force-feed air to their highly-efficient 10-Row Stack Plate Cooler. As expected from the Derale team, it can be used for a wide variety of cooling needs from engine and transmission to power-steering and fuel. Featuring a unique mounting bracket that sandwiches the cooler and the intake scoop, there are a wide variety of mounting options, all of which are designed to provide a clean, attractive and highly efficient cooler. Do not be fooled by its compact size; Derale's Scoop Cooler is a heavy-duty cooler in every sense of the word, with integrated turbulators running through each row. It's all-aluminum design is lightweight while the furnace-brazed construction is tested to withstand pressures up to 300 p.s.i., and GUARANTEED to 250 p.s.i. Cooler equipped with 7/8"-14 (-10AN) inlet/outlets. -6 AN, -8AN and -10AN fittings available, but sold separately.
- Cooler style: Stack Plate
- Construction: Aluminum
- Width: 13"
- Height: 4"
- Depth: 3 1/4" (Back) 5" (Front)
- Inlet dim: 10"
- Mounting: 10-1/4 Max x 2-3/16"
- 20,000 BTU's Per Hour
- Designed for engine, transmission, power-steering and fuel cooling
- Unique mounting bracket sandwiches the cooler and the intake scoop
- Several mounting options
- Most efficient heat exchangers available
- Furnace brazed aluminum construction
- 10 row cooler design
- 20,000 BTU's Per Hour
