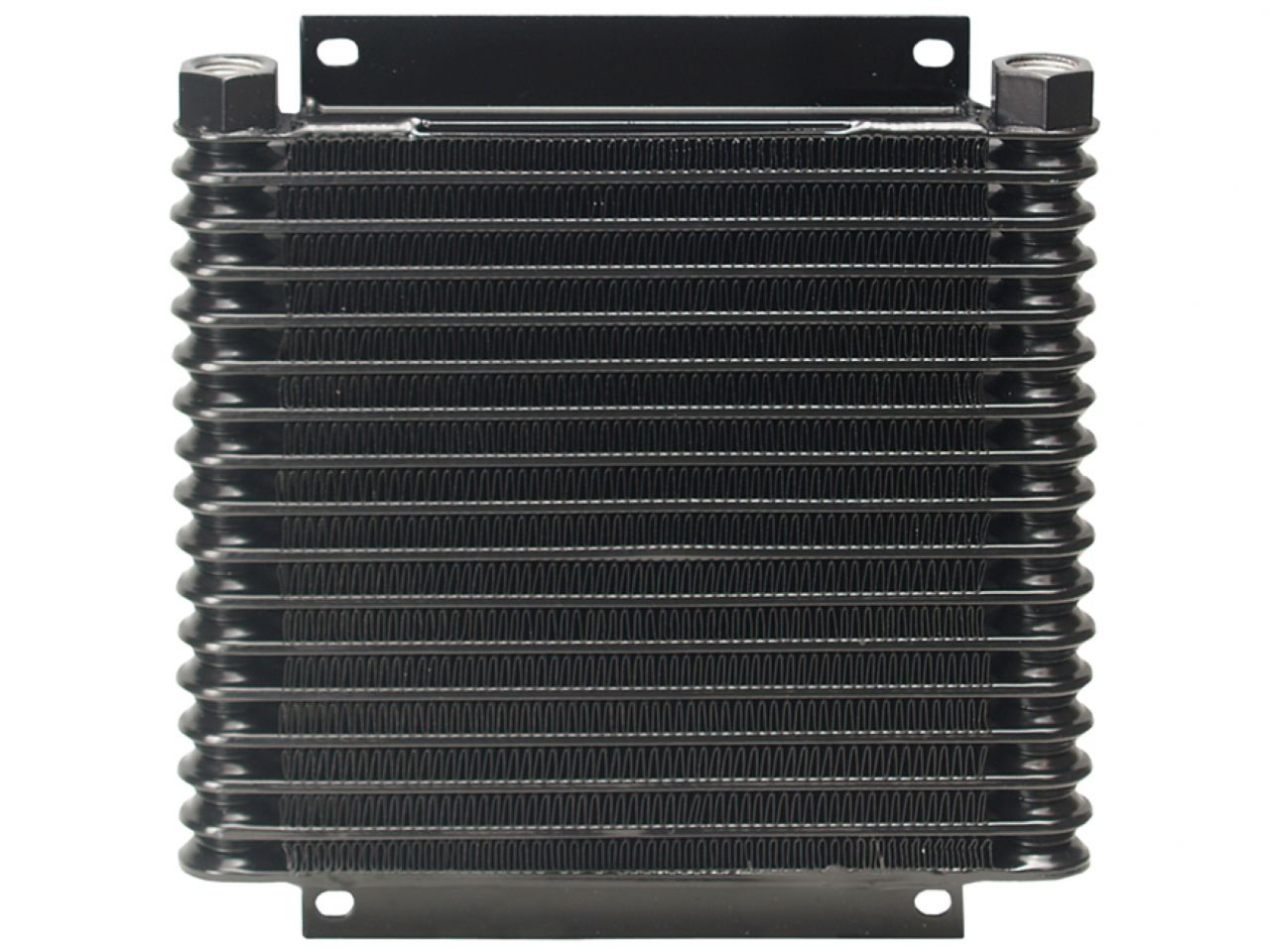

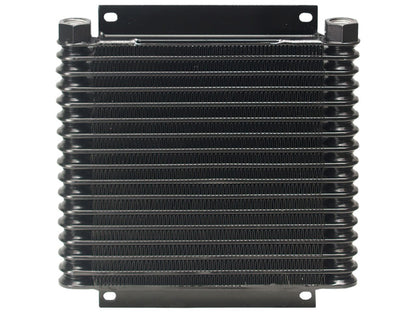

Derale 17 Row Series 9000 Plate & Fin Cooler

Very popular with original equipment manufacturers for use on their towing applications, our Plate and Fin coolers is no exception, featuring strong furnace-brazed construction, 1 1/4" wide plates and embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. Built with 1/2" NPT female cooler ports and includes 1/2" NPT x 3/8" hose barb adapters. This kit is a cooler only.

Features

Prevents heat related transmission failures

Extends life of transmission

Improves transmission performance

Sturdy furnace-brazed aluminum construction

17 row cooler design

1-1/4" turbulators maximize cooling & minimize pressure drop

1/2" NPT female cooler fittings

1/2" NPT x 3/8" hose barb adapters included

22500 GVW rated

Cooler Only

Fluid Capacity: 12 oz.

Specifications

• Cooler style: Plate & Fin
• Construction: Aluminum
• Inlet size: 1/2" NPT female
• Fitting size: 3/8" barb
• GVW: 24000
• Width: 10-1/8"
• Height: 11-7/8"
• Depth: 1-1/4"
• Inlet dim: 8-7/8"
• Mounting: 6-3/4" x 10-1/2"
