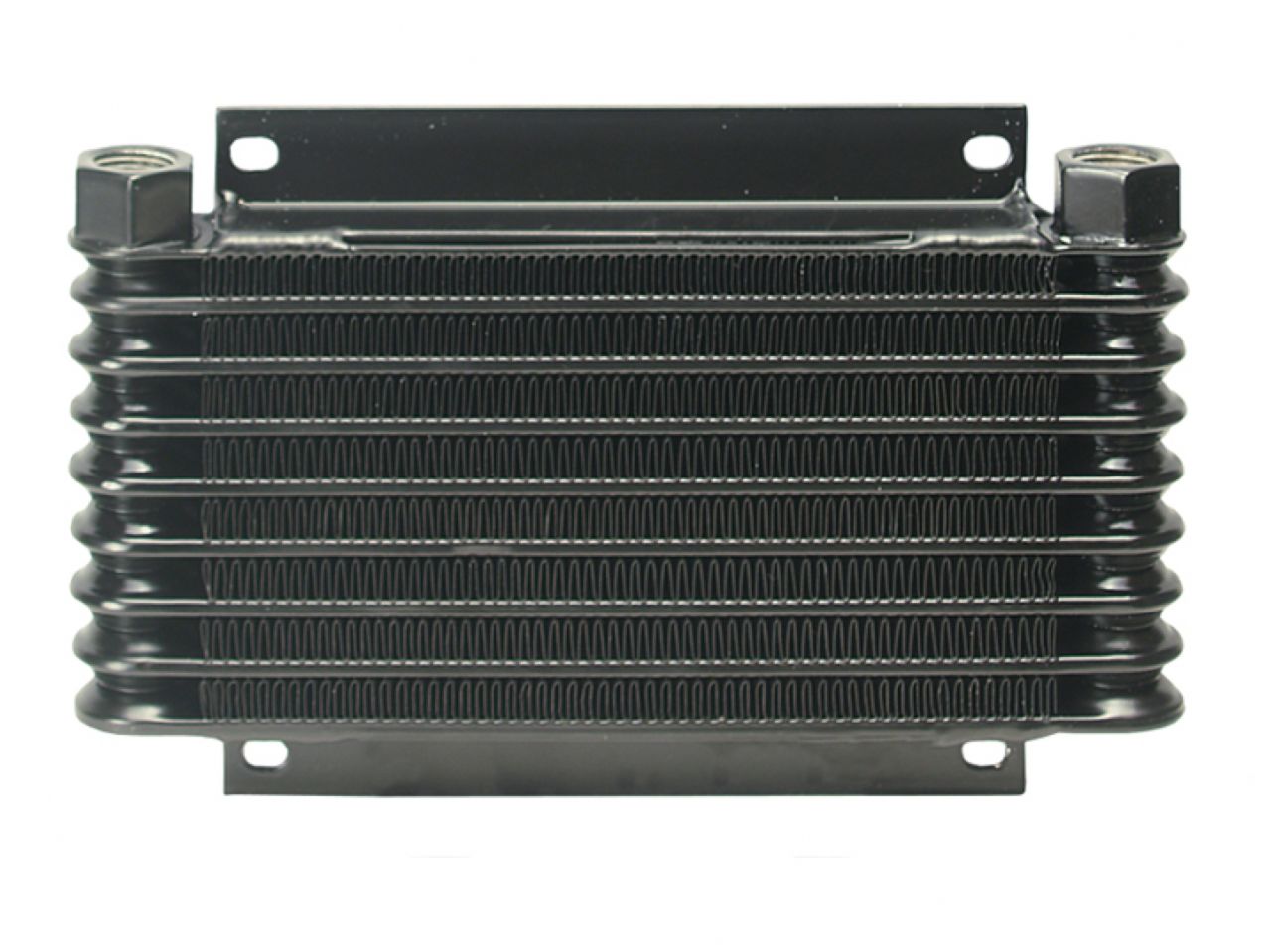

Derale 9 Row Plate & Fin Cooler (1/2 FPT) 144R1
Very popular with original equipment manufacturers for use on their towing applications, our Plate and Fin coolers is no exception, featuring strong furnace-brazed construction, 1 1/4" wide plates and embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. Built with 1/2" NPT female cooler ports and includes 1/2" NPT x 3/8" hose barb adapters. This is a cooler only.
Specifications
- Cooler style: Plate & Fin
- Construction: Aluminum
- Inlet size: 1/2" NPT female
- Fitting size: 3/8" barb
- GVW: 17500
- Width: 10-1/8"
- Height: 6-3/8"
- Depth: 1-1/4"
- Inlet dim: 8-7/8"
- Mounting: 6-3/4" x 5-1/2"
Features
- Prevents heat related transmission failures
- Extends life of transmission
- Improves transmission performance
- Sturdy furnace-brazed aluminum construction
- 9 row cooler design
- 1-1/4" turbulators maximize cooling & minimize pressure drop
- 1/2" NPT female cooler fittings
- 1/2" NPT x 3/8" hose barb adapters included
- 17500 GVW rated
- Cooler Only
- Fluid Capacity: 6 oz
Derale 9 Row Plate & Fin Cooler (1/2 FPT) 144R1
Sale price$74.33 USD
