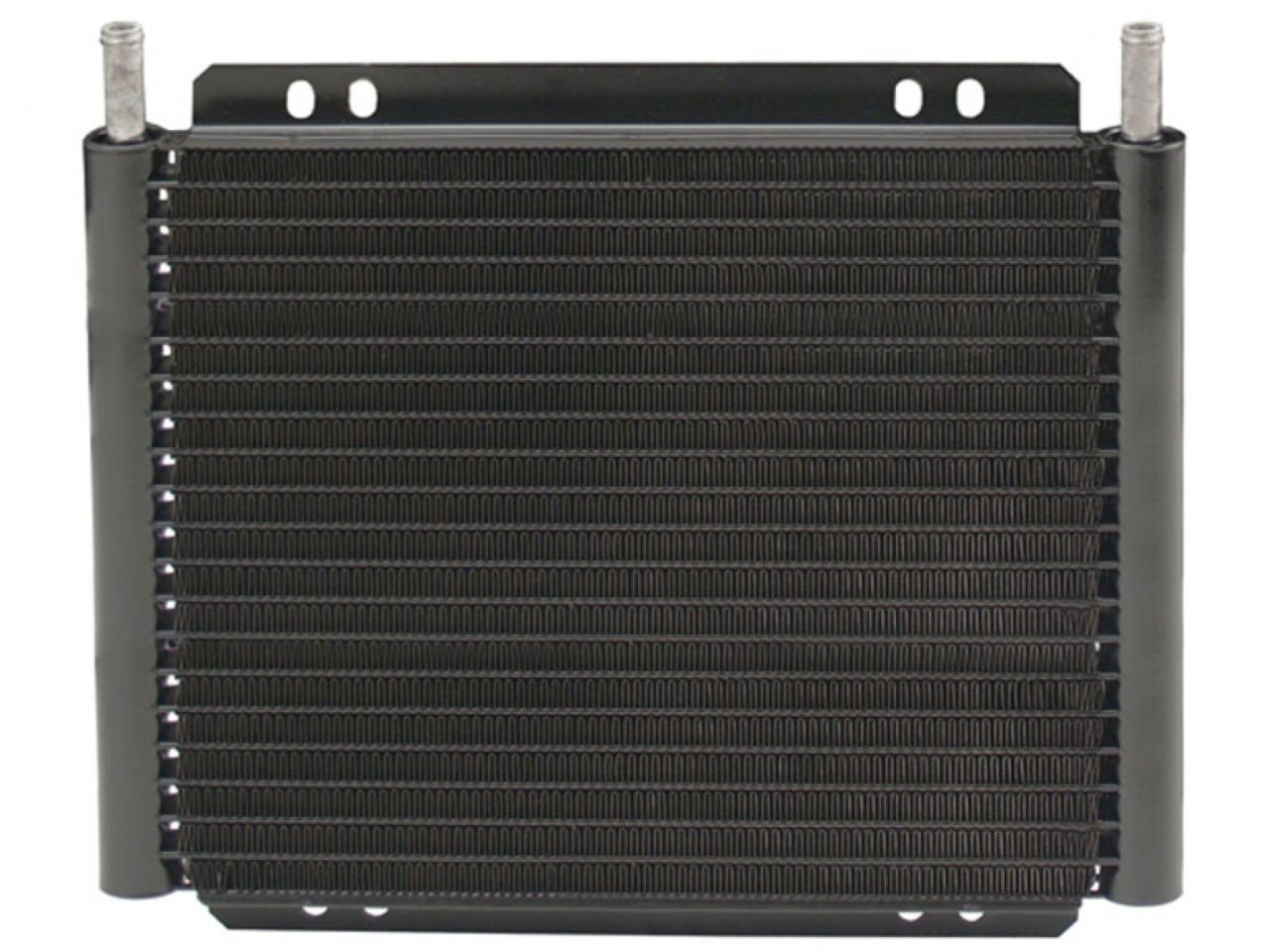

Derale 21 Row Plate & Fin Cooler (11/32)

A step up from Tube & Fin type coolers, this Plate and Fin cooler features strong furnace-brazed construction, 7/8" wide plates, 3/4" embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for medium to full-size cars and intermediate SUVs that see light to medium duty use and some towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. This is a cooler only.

Features

• Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
• Extruded plastic cooling fin guards
• Improves transmission performance
• Sturdy furnace-brazed aluminum construction
• 19 row cooler design
• 3/4" embossed turbulators maximize cooling & minimize pressure drop
• 11/32" hose barb inlets
• 22000 GVW rated
• Complete hardware kit included
• Fluid Capacity: 5.5 oz
• Cooler Only

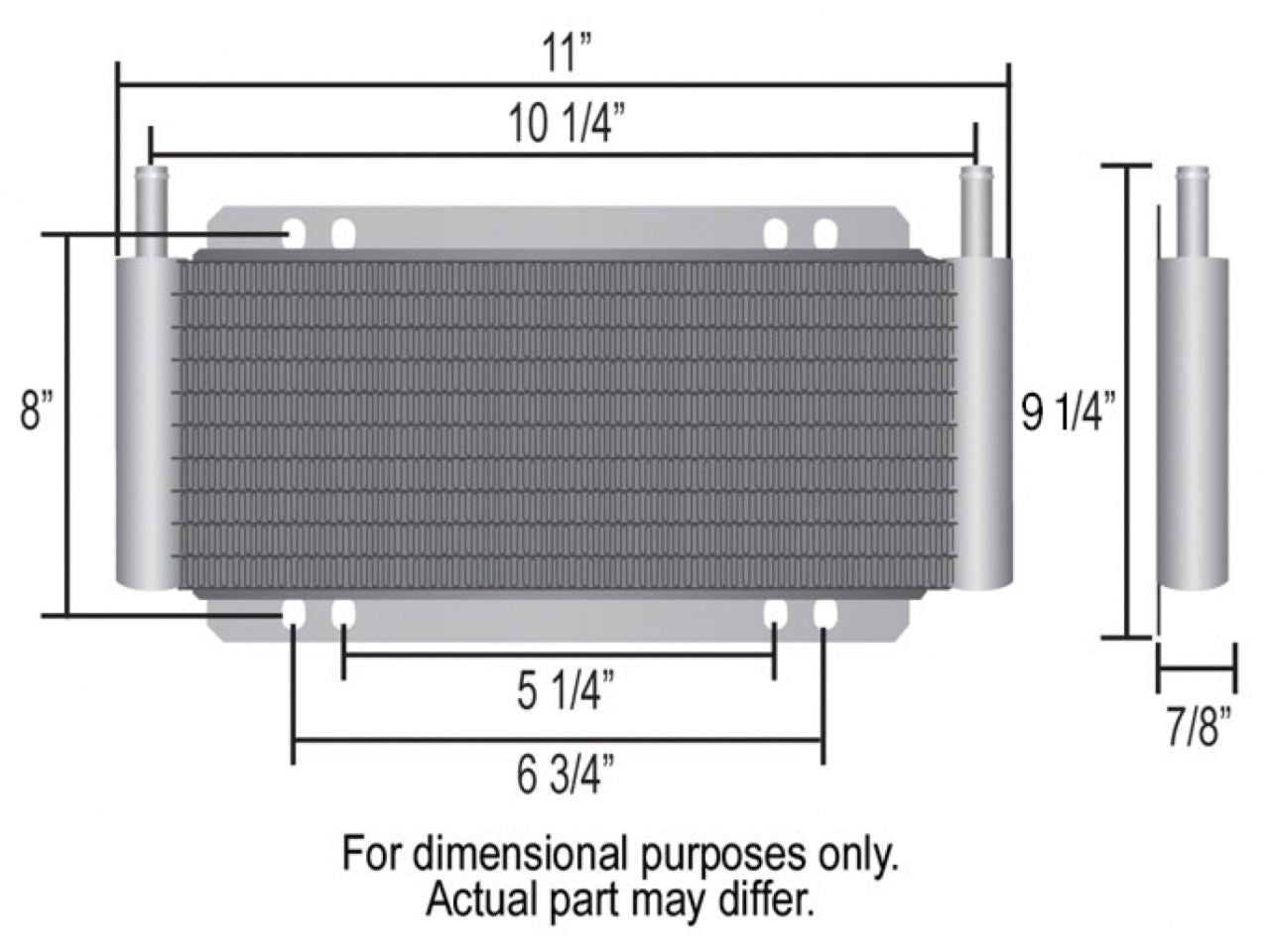

Specifications

• Cooler style: Plate & Fin
• Construction: Aluminum
• Inlet size: 11/32" barb
• GVW: 20500
• Width: 11"
• Height: 8-3/4"
• Depth: 7/8"
• Inlet dim: 10-1/4"
• Mounting: 6-3/4" x 8"
