Derale Fan Spacer, 2 1/4 6/8mm(Female 5/8-3/4 Pilot)

Derale Fan Spacer, 2 1/4 6/8mm(Female 5/8-3/4 Pilot)

sku: 144HU | mpn: 31547
$23.16
$28.95 $23.16
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

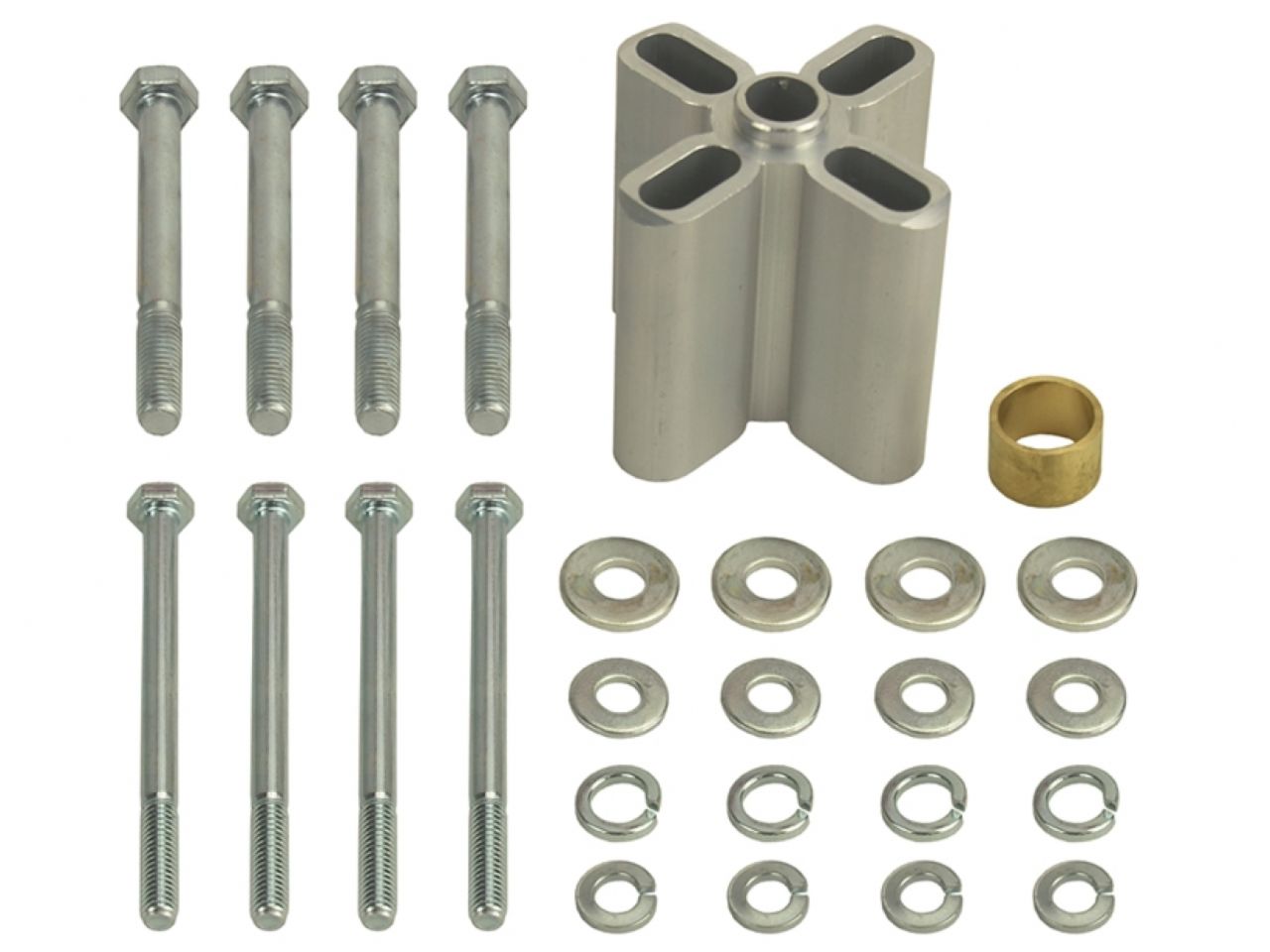

This 2 1/4" belt driven fan spacer comes with a clear anodized finish and is designed to fit metric applications with 5/8" or 3/4" pilot water pumps. (6mm bolts)

Specifications
  • Spacer construction: Aluminum
  • Anodize color: Clear

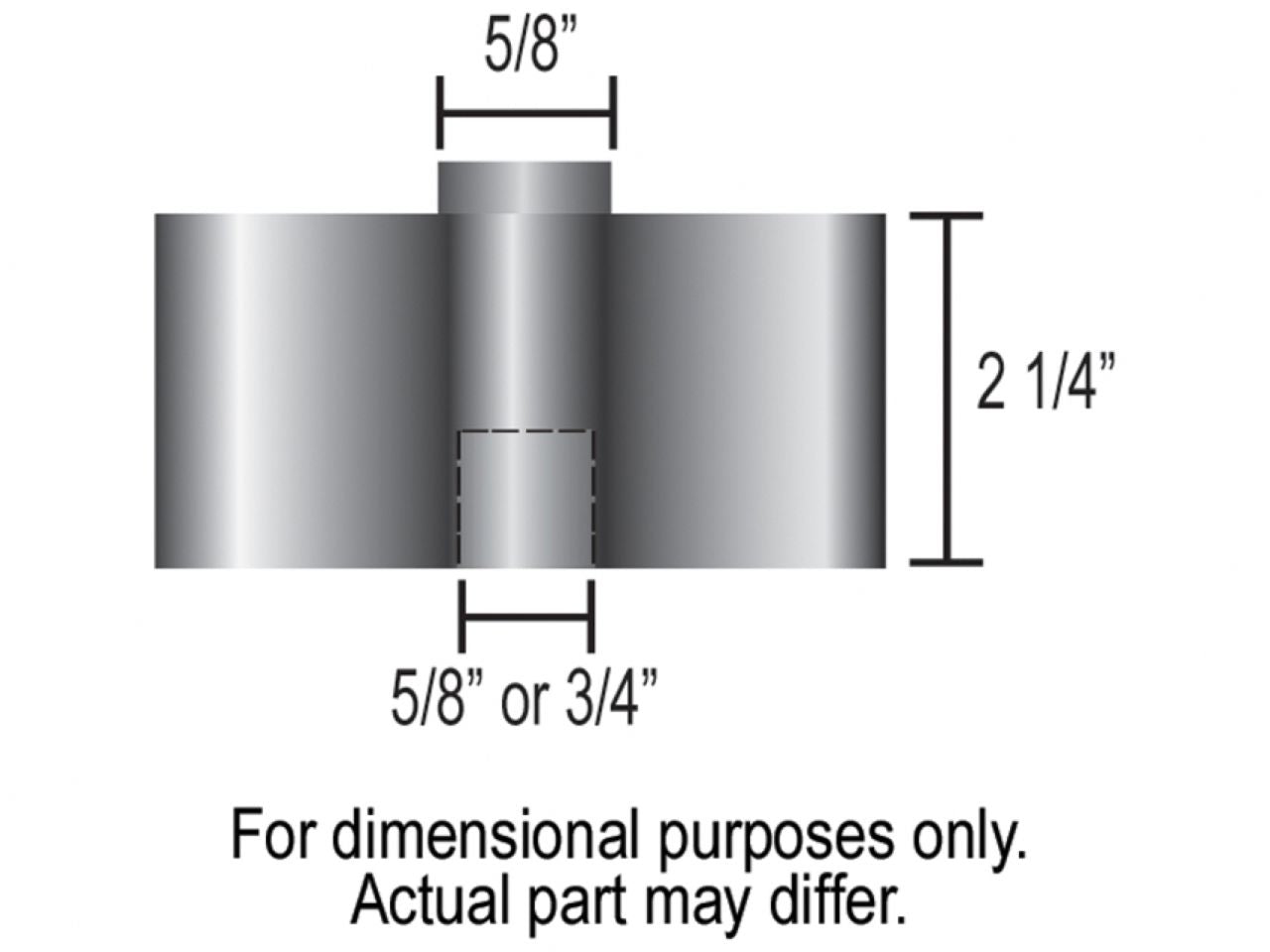

  • Length: 2-1/4"
  • Male pilot diameter: 5/8"
  • Female pilot diameter: 5/8" or 3/4"
  • Bolt size: (4) 6mm x 1.25 & (4) 8mm x 1.25
  • Flange bolt spacing: 1-3/4" - 2-1/4"
Features
  • Aluminum construction
  • Anodized clear finish
  • 2-1/4" length with 5/8" or 3/4" female pilot
  • 6mm x 1.00 & 8mm x 1.25 hardware included

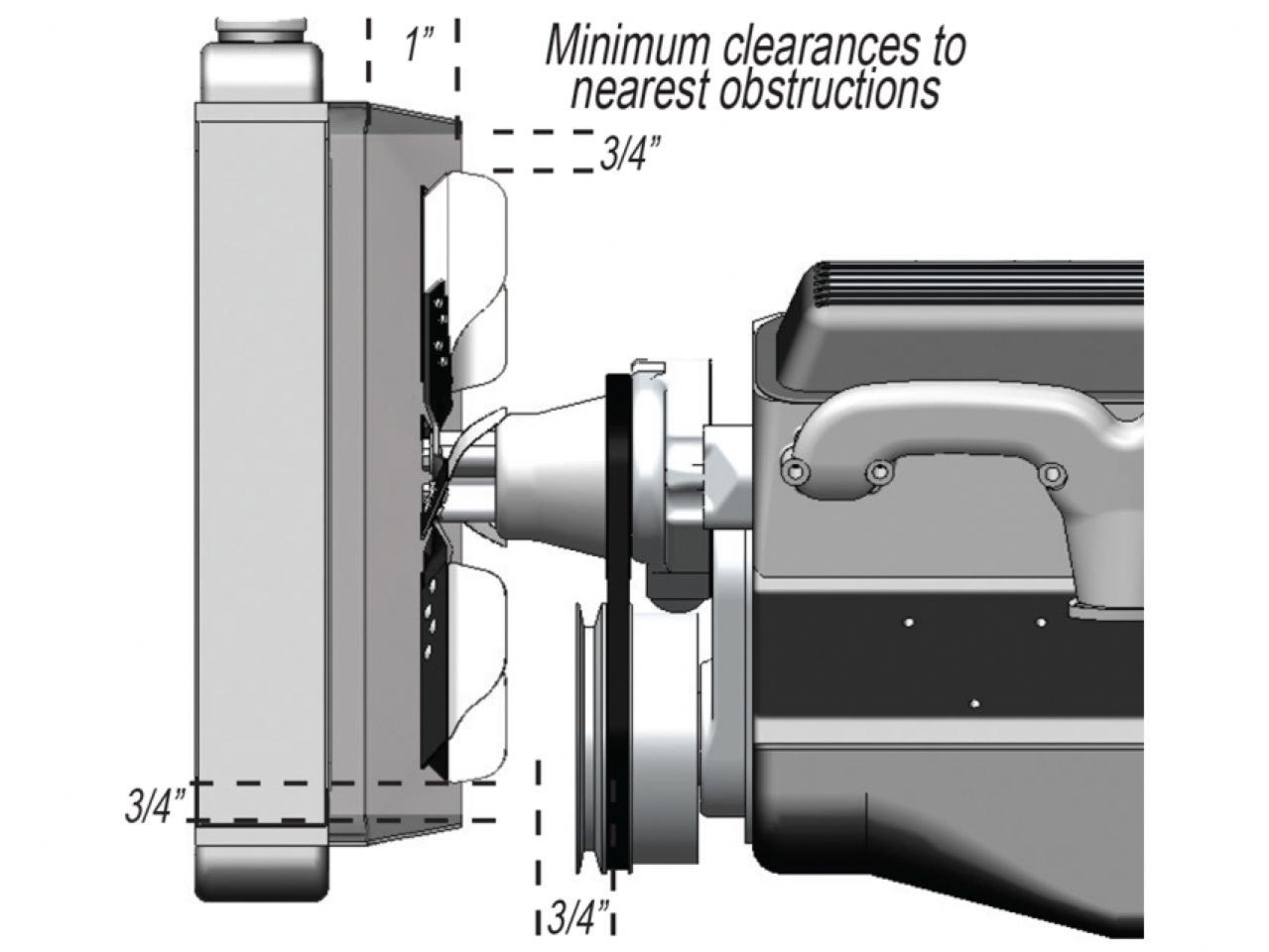

  • Warning: Fan should have a minimum clearance of 3/4" from the radiator, belts, hoses or pulleys
