Derale Fan Spacer, 1 3/4 (Female 5/8-3/4 Pilot)

SKU: 144HN | MPN:  31518
Only 6 units left
Sale price$18.53 USD Regular price$23.16 USD
Save $4.63

This 1 3/4" belt driven fan spacer comes with a clear anodized finish and is designed to fit most domestic 5/8" or 3/4" pilot water pumps.

Specifications

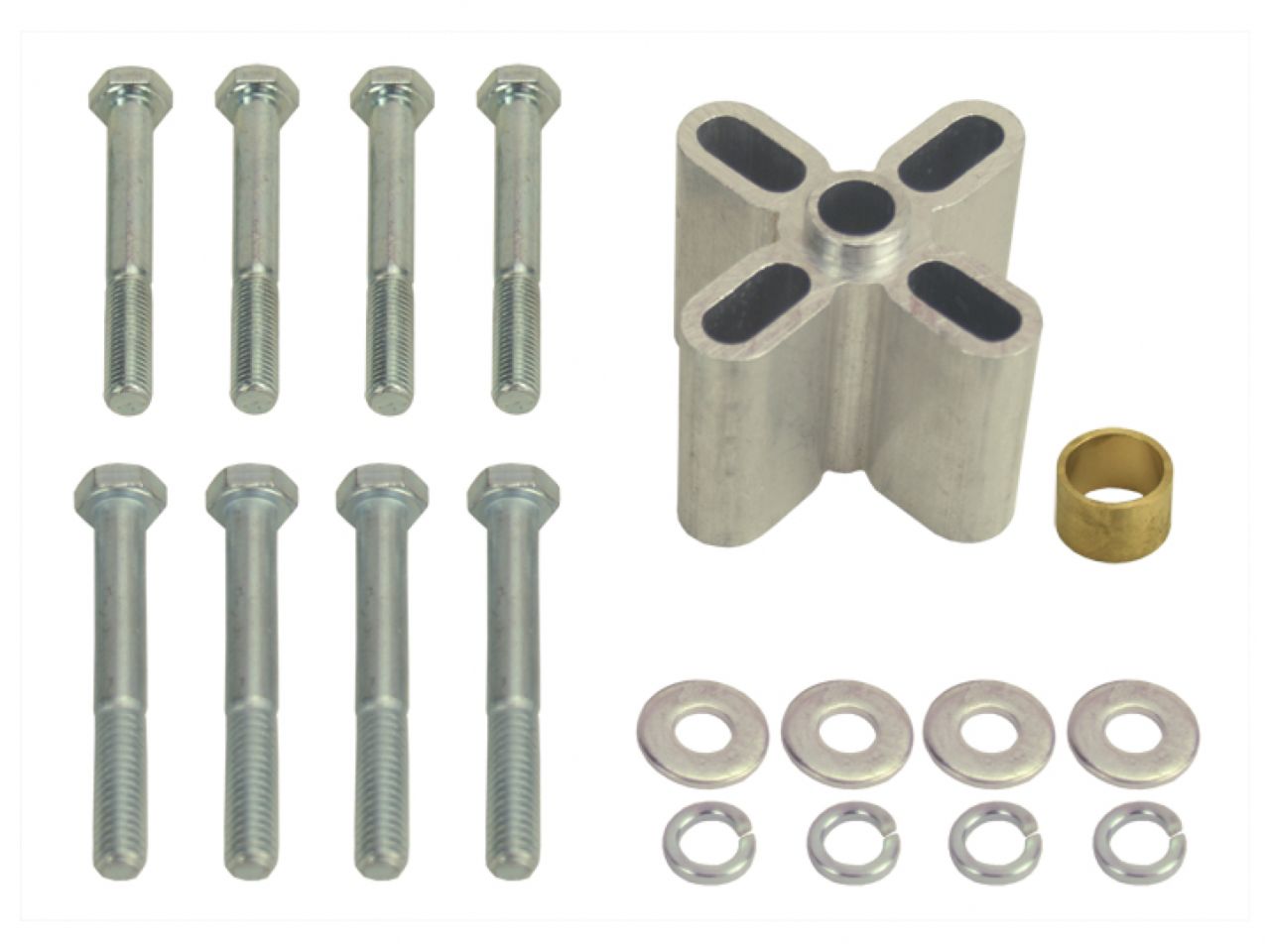

  • Spacer construction: Aluminum
  • Anodize color: Clear

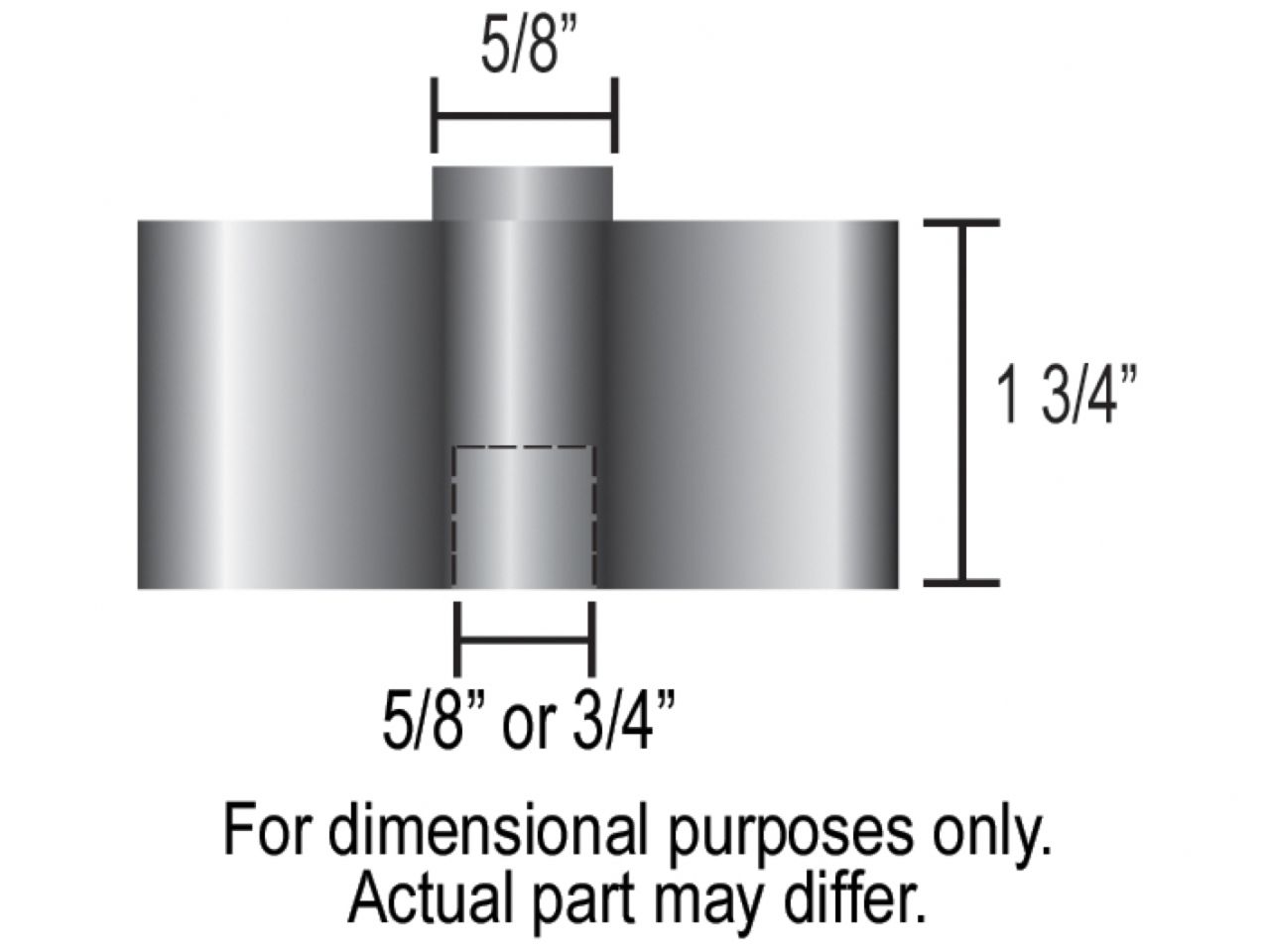

  • Length: 1-3/4"
  • Male pilot diameter: 5/8"
  • Female pilot diameter: 5/8"or 3/4"
  • Bolt size: (4) 5/16"-18 & (4) 5/16"-24
  • Flange bolt spacing: 1-3/4" - 2-1/4"
Features
  • Aluminum construction
  • Anodized clear finish
  • 1-3/4" length with 5/8" or 3/4" female pilot
  • Fine and course 5/16" thread hardware included

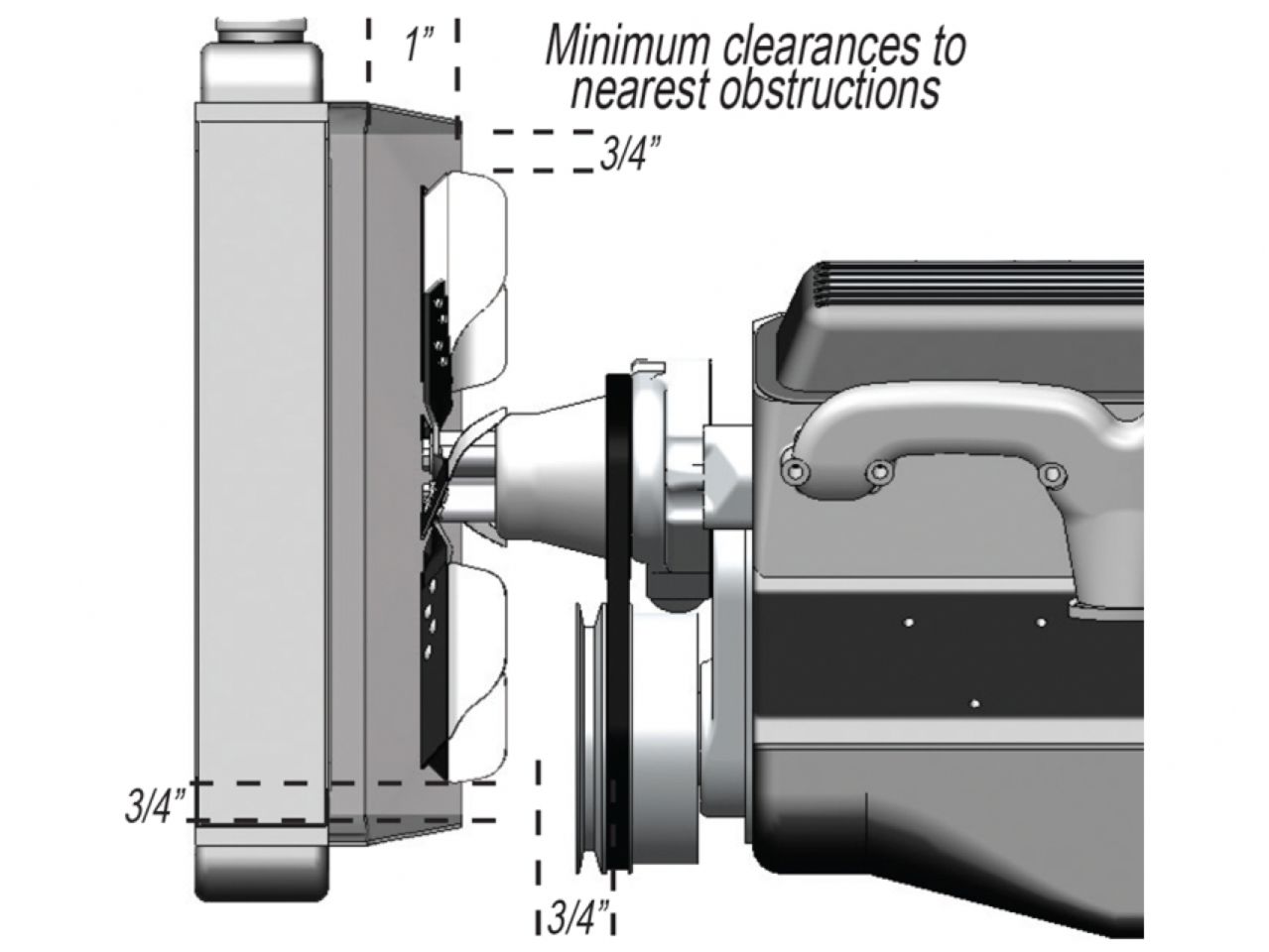

  • Warning: Fan should have a minimum clearance of 3/4" from the radiator, belts, hoses or pulleys
