Derale 1" Aluminum Belt Fan Spacer, Female 5/8-3/4 Pilot
1" Aluminum Belt Fan Spacer, Female 5/8-3/4 Pilot
This 1" belt driven fan spacer comes with a clear anodized finish and is designed to fit most domestic 5/8" or 3/4" pilot water pumps.

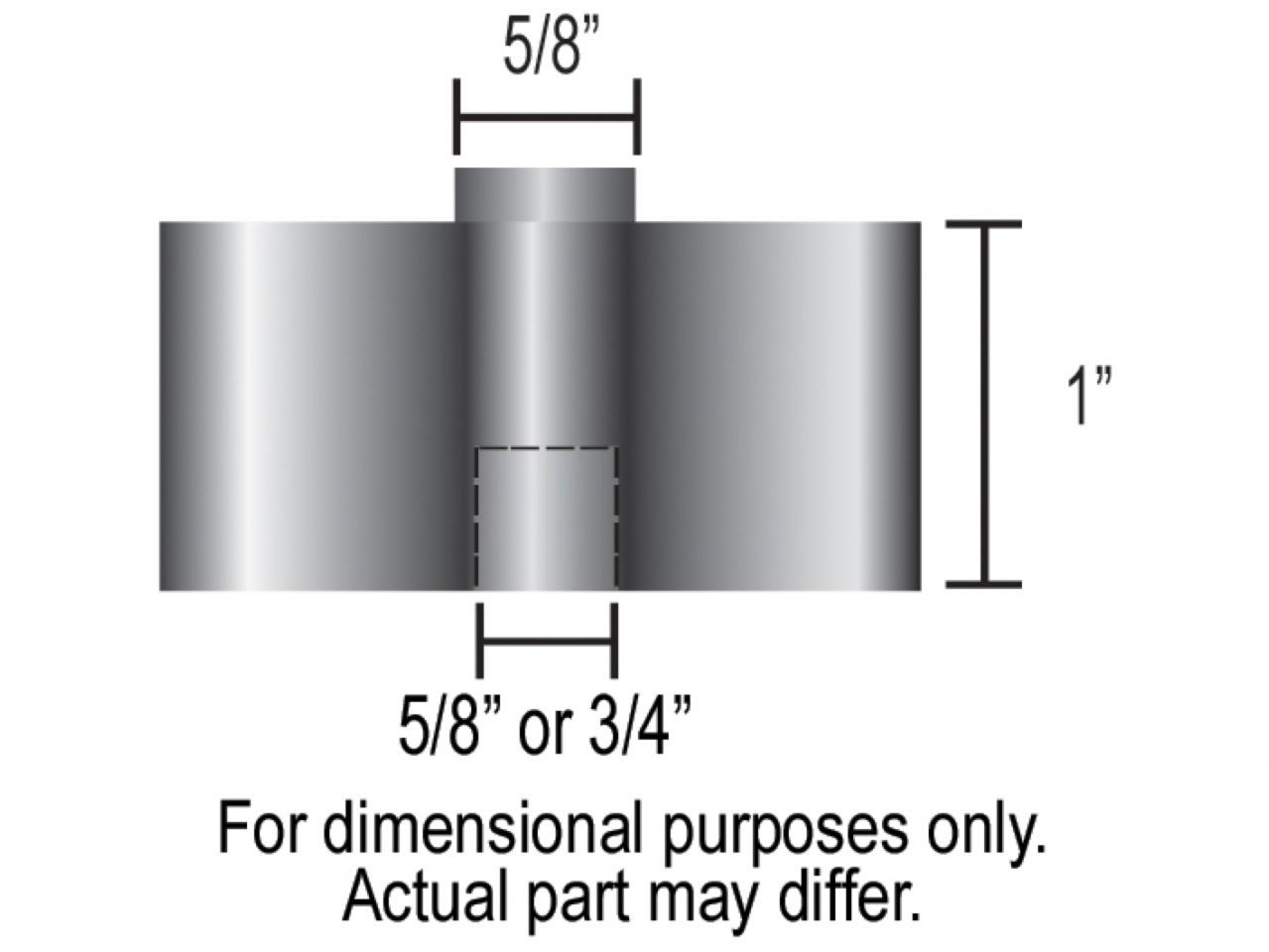

Specifications
- Spacer construction: Aluminum
- Anodize color: Clear
- Length: 1"
- Male pilot diameter: 5/8"
- Female pilot diameter: 5/8" or 3/4"
- Bolt size: (4) 5/16"-18 & (4) 5/16"-24
- Flange bolt spacing: 1-3/4" - 2-1/4"
Features
- Aluminum construction
- Anodized clear finish
- 1" length with 5/8" or 3/4" female pilot

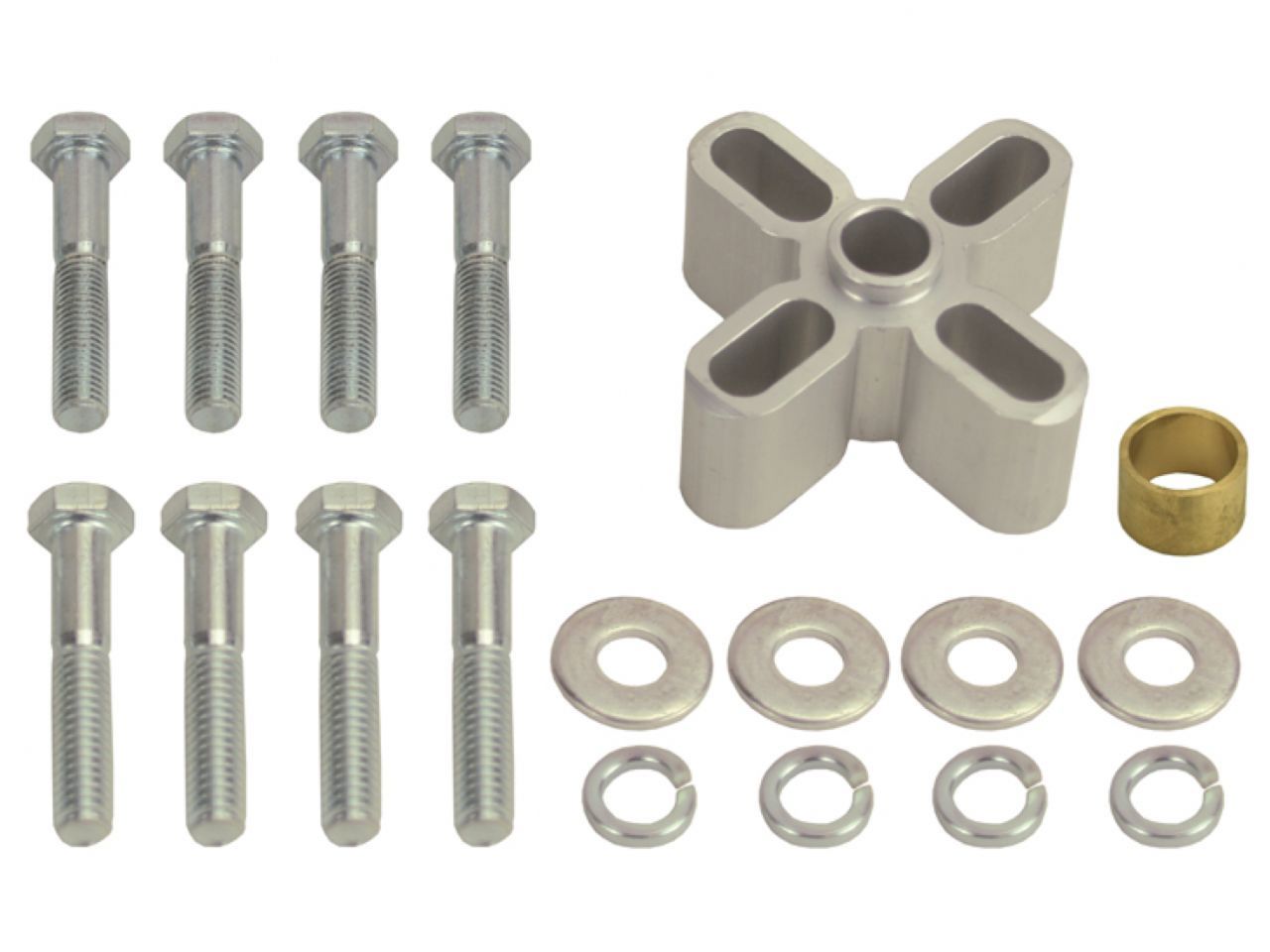

- Fine and course 5/16" thread hardware included

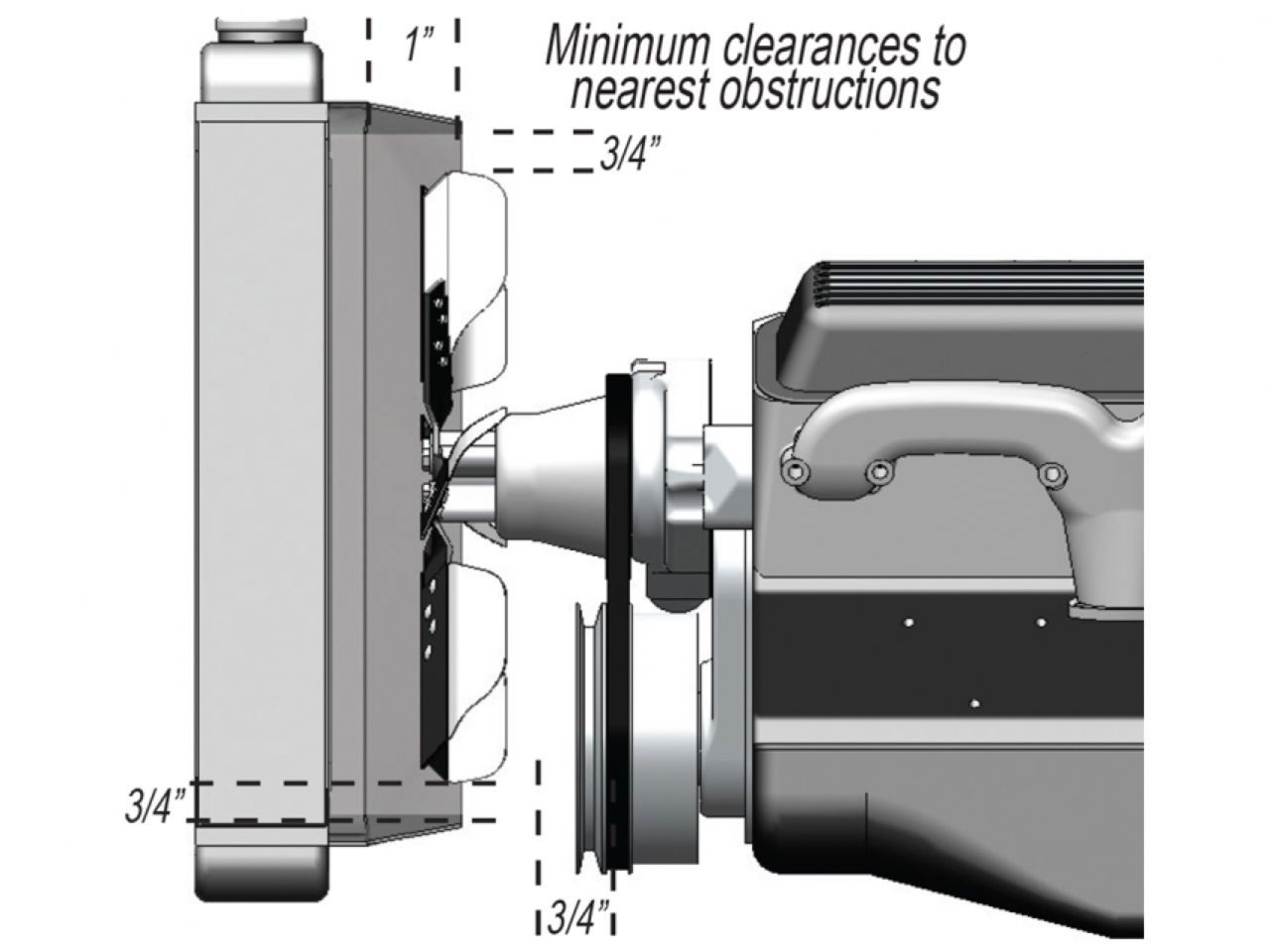

- Warning: Fan should have a minimum clearance of 3/4" from the radiator, belts, hoses or pulleys
Derale 1" Aluminum Belt Fan Spacer, Female 5/8-3/4 Pilot
Sale price$20.88 USD
