Derale 10 Dyno-Cool Curved Blade Electric Fan

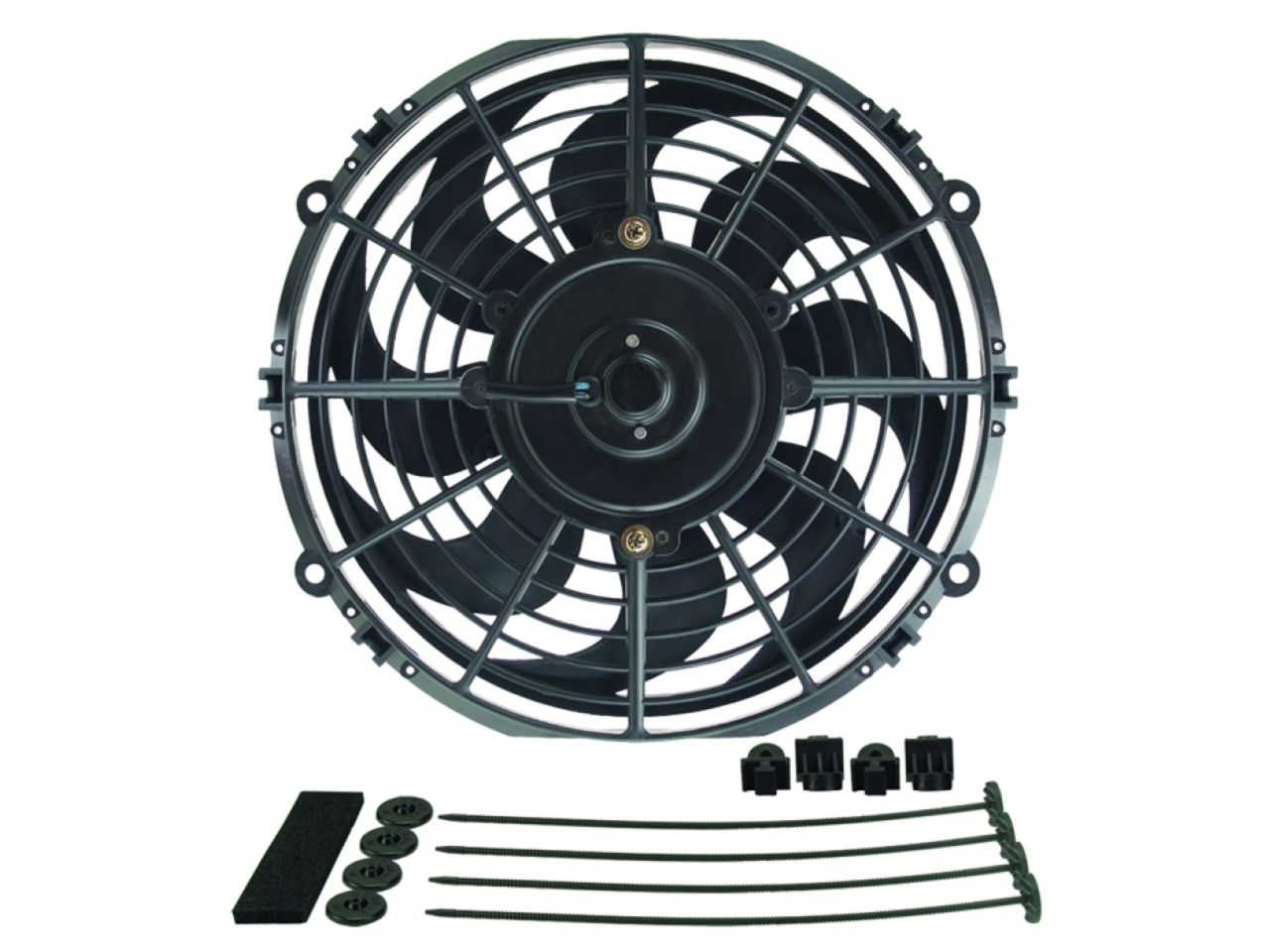

This 10" electric fan uses curved blades to provide more blade area and performance with less noise, plus has a lower profile. It moves 590 CFM at 0 static pressure, drawing only 5.3 amps. Included with each fan is a fan mounting kit with 4 plastic through radiator core rods and clips, 4 foam pads and 4 mounting feet.

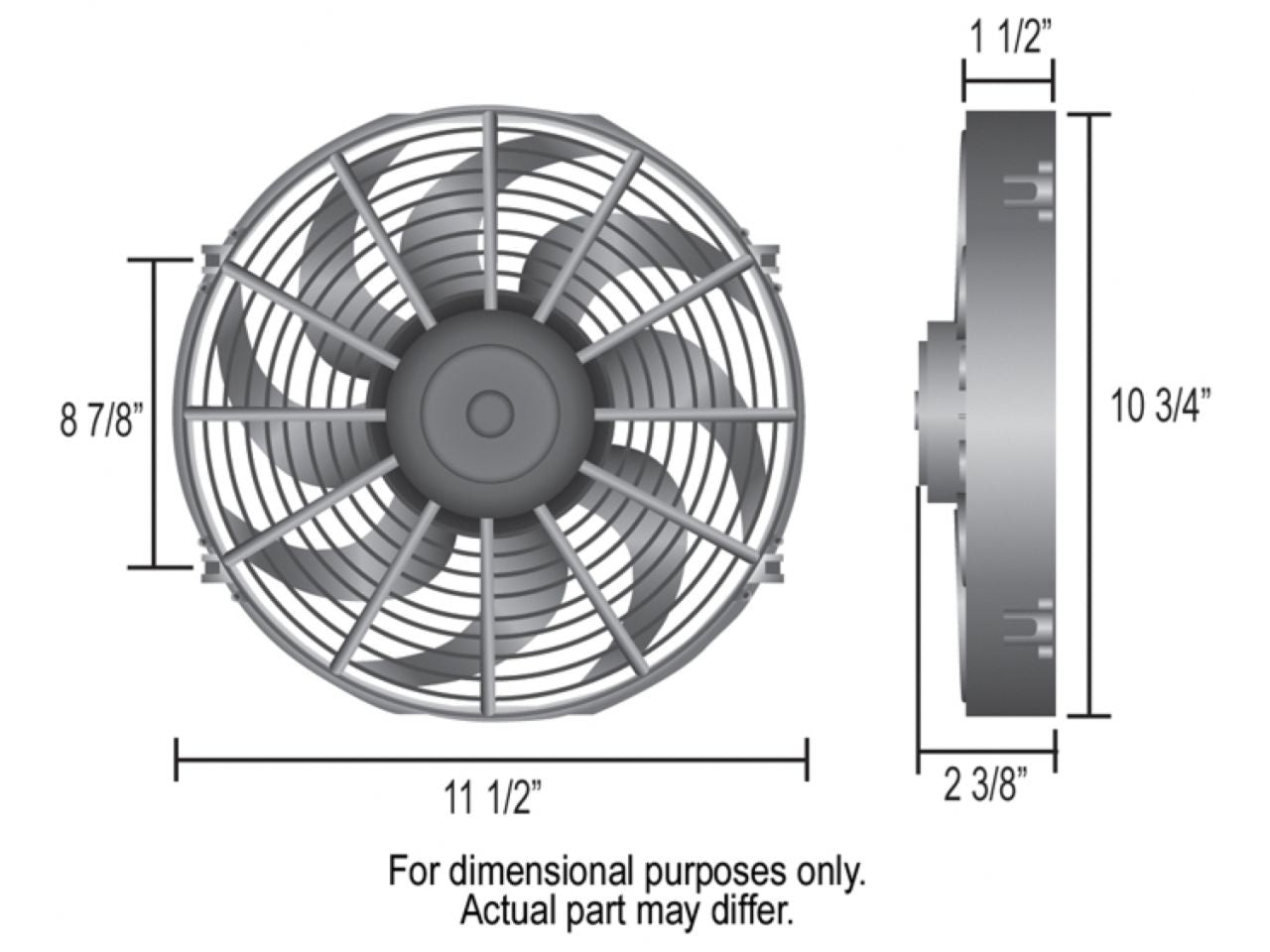

Specifications

• Fan size: 10"
• CFM: 590
• Amp draw: 5.3
• Width: 11-1/2"
• Height: 10-3/4"
• Depth: 1-1/2"
• Overall depth: 2-3/8"
• Mounting: 9-7/8 x 5-3/4"
• Airflow: Puller (reversible)

Features

• Efficient curved blade design
• Low profile
• 590 CFM
• Reversible design - can be used as a pusher or puller
• Complete with fan kit which includes all mounting hardware, lighted toggle switch, fuse, and wire connections
