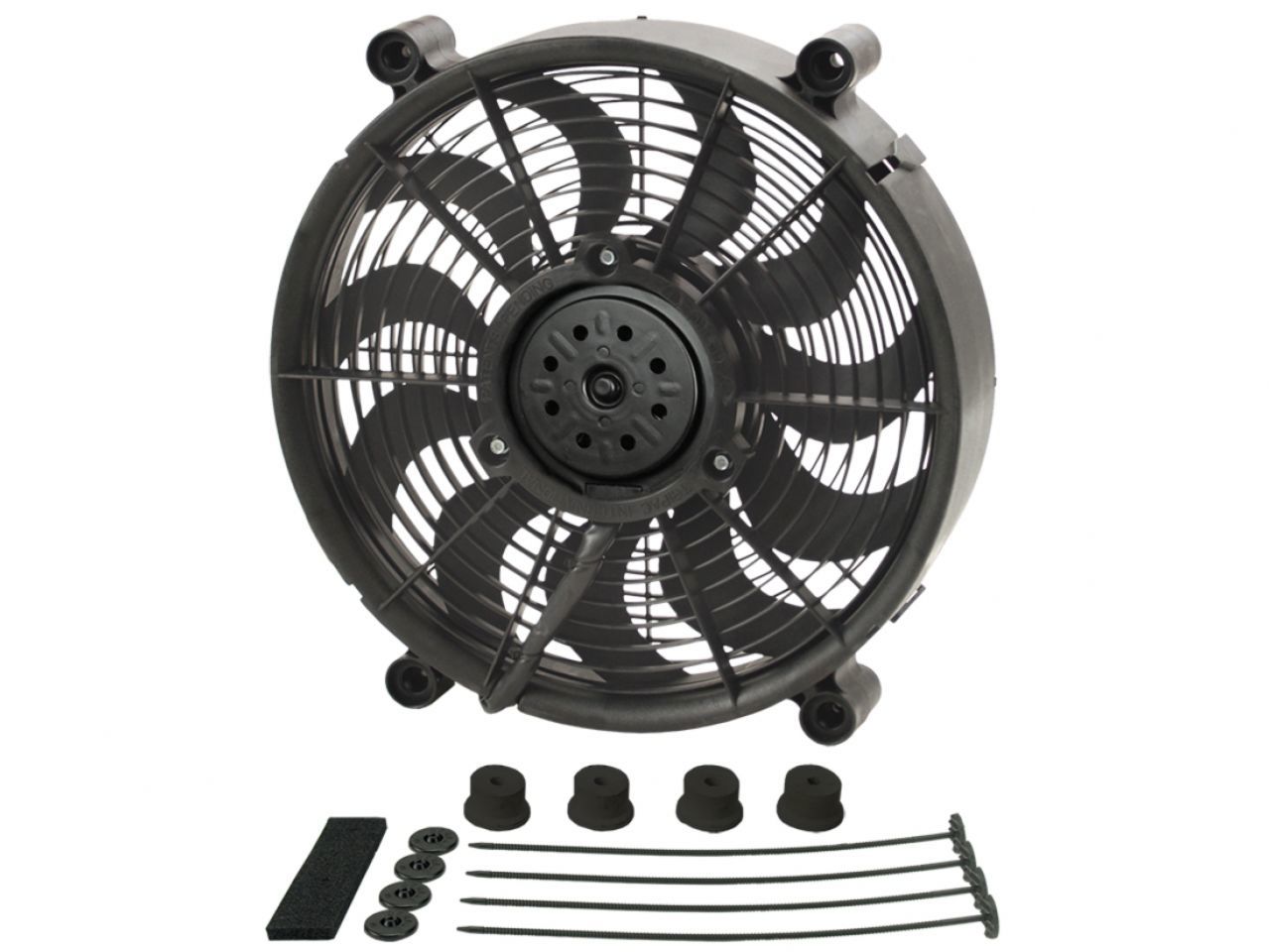

Derale 12 High Output Single RAD Pusher/Puller Fan with Standard Mount Kit
12 High Output Single RAD Pusher/Puller Fan with Standard Mount Kit
Our most compact version in our High Output Single RAD fan series, this 12" fan is a self-shrouded, symmetrical design with four molded mounting points. Motivated by a 2-speed 265 watt Bosch motor driving 11 patented skewed blades, it can be used as a pusher or puller fan by simply flipping brackets without changing direction of the unit. Moves up to 1450 CFM while drawing up to 21 amps.
Specifications
- CFM high/low: 1450/1000
- Amp draw high/low: 21/15
- Width: 12-3/4"
- Height: 12-3/4"
- Depth: 2-5/8"
- Mounting: 8-1/4" x 11-5/8"
Features
- Mounts as a Pusher or Puller without flipping blade or switching motor leads
- State-of-the-art symmetrical design
- High Output 265 watt 2 speed motor (two separate turn-on sources required for 2 speed operation)
- 1450 CFM on high speed / 1000 CFM on low speed
Derale 12 High Output Single RAD Pusher/Puller Fan with Standard Mount Kit
Sale price$146.78 USD
