Derale 13 HO Extreme RAD Fan
Derale 13 HO Extreme RAD Fan
sku: 144E7 | mpn: 16924
Regular price
$316.69
Regular price
$316.69
Sale price
$316.69
Shipping calculated at checkout.
Out of stock
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping

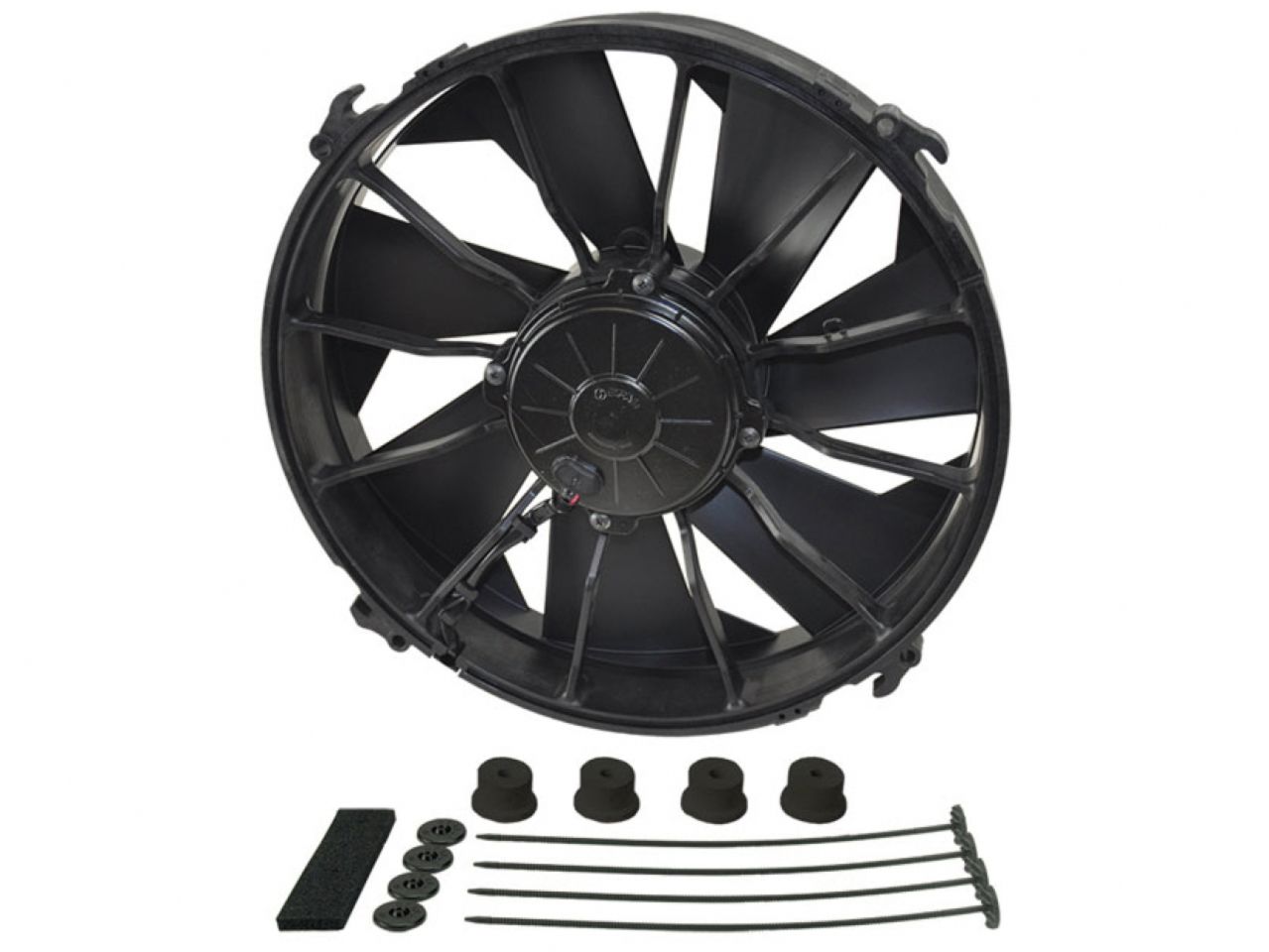

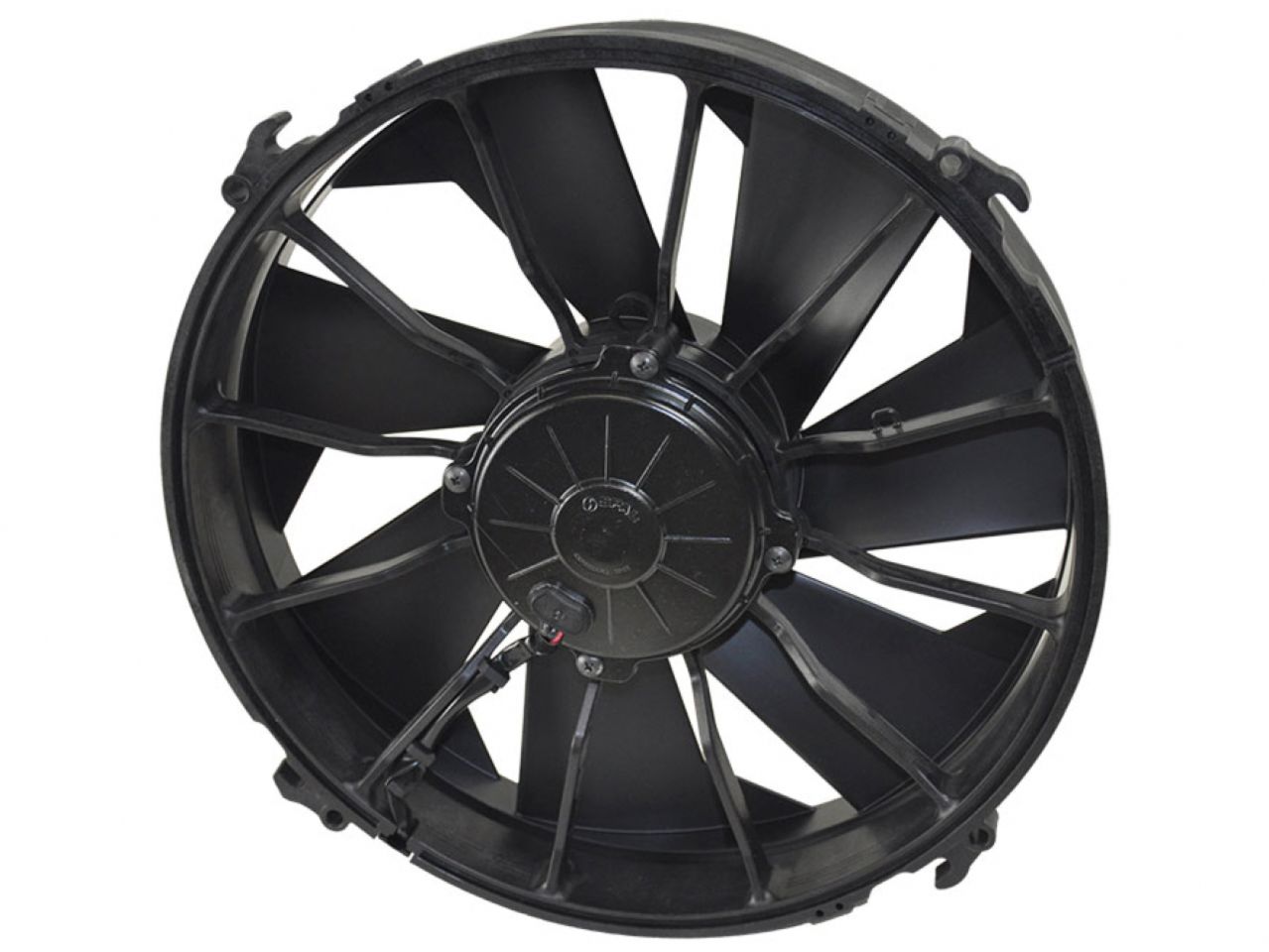

This 12" High Output Single RAD fan is a self-shrouded, symmetrical design with four molded mounting points. Motivated by a 300 watt motor driving 7 skewed blades, it can be used as a pusher with the supplied hardware kit. Fan can also be used as puller by combining with a custom built shroud. Moves 2000 CFM while drawing up to 24.8 amps. This is the replacement fan for part numbers 16814, 16825, 16826, 16836, 16837, 16838, 16842 & 16927.
Specifications
- CFM: 2000
- Amp draw: 24.8

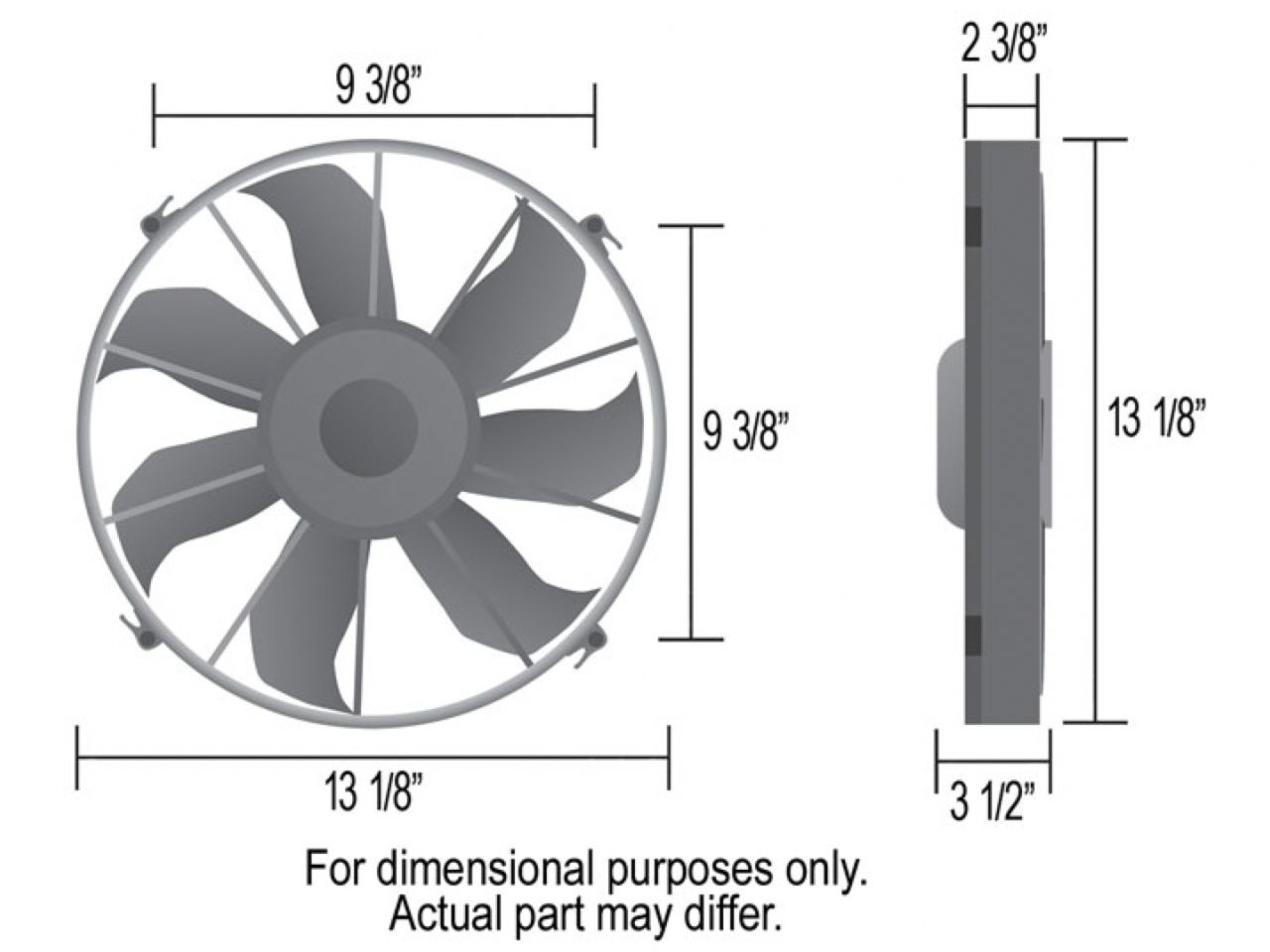

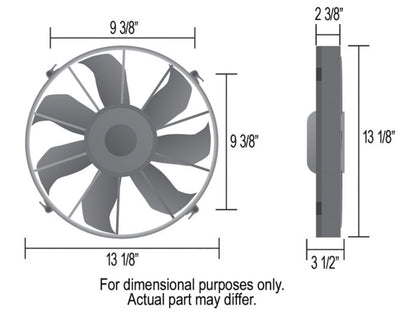

- Width: 13-1/8"
- Height: 13-1/8"
- Depth: 2-3/8"
- Overall depth: 3-1/2"
- Mounting: 9-3/8" x 9-3/8"
Features
- State-of-the-art symmetrical design
- High output 300 watt motor
- 2000 CFM

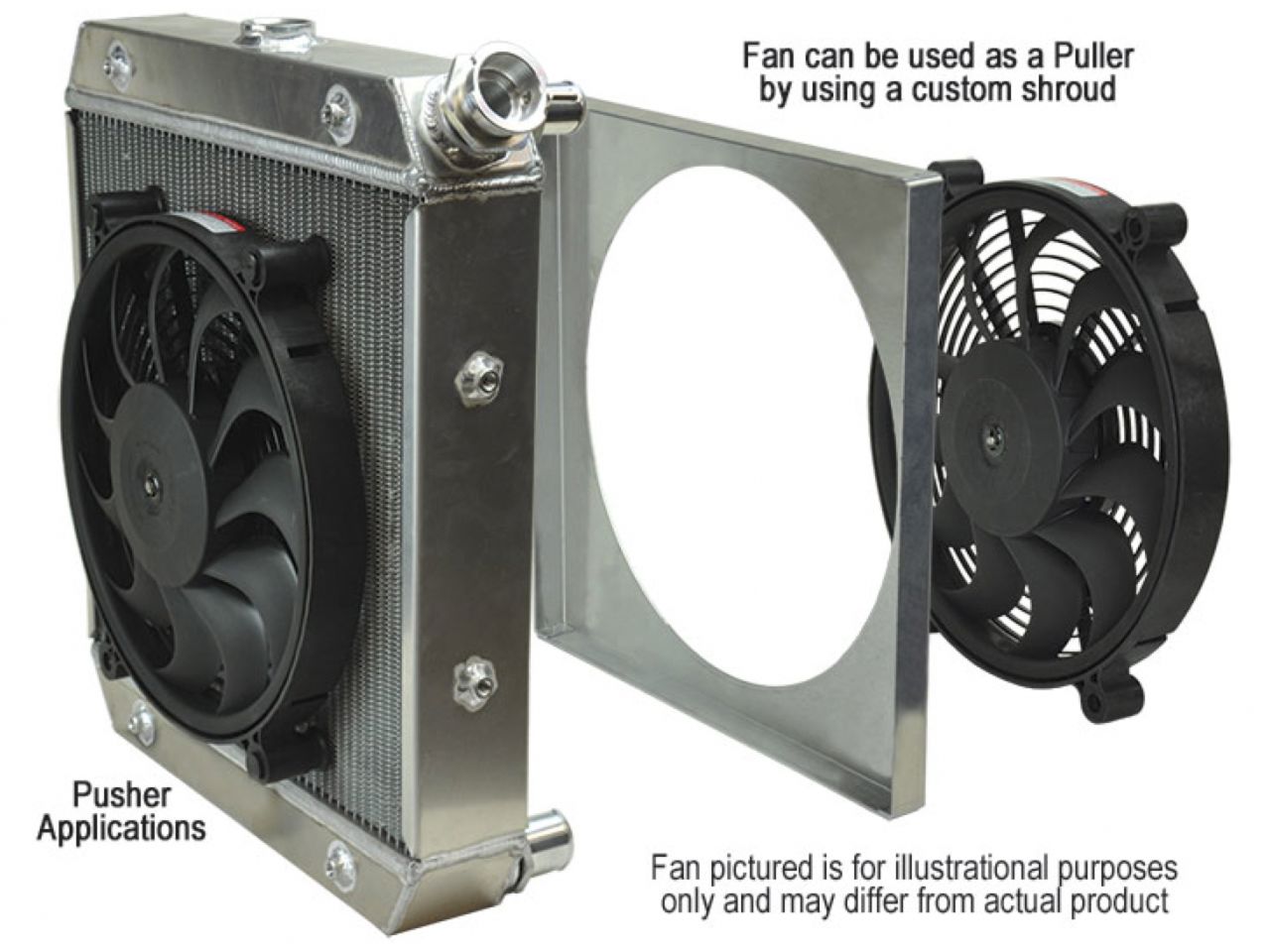

- Mounts as pusher (grill side). *Can be used in puller application when custom shroud is used
- Includes nylon mounting hardware and rubber isolators
