Derale 17 High Output Pusher/Drop-in Electric Fan

SKU: 144E6 | MPN:  16917
Only 3 units left
Sale price$168.74 USD

A very popular primary cooling fan, this 17" High Output Single RAD fan is a self-shrouded, symmetrical design with four molded mounting points. Motivated by a 2-speed 265 watt Bosch motor driving 11 patented skewed blades, it can be used as a pusher or puller fan without changing direction of the unit. Moves up to 2400 CFM while drawing up to 23.5 amps.

Specifications
  • CFM high/low: 2400/1800
  • Amp draw high/low: 23.5/17.4
  • Width: 16-7/8"
  • Height: 16-7/8"
  • Depth: 1-5/8"
  • Overall depth: 2-5/8"
  • Mounting: 8-7/8" x 15-5/8"
Features

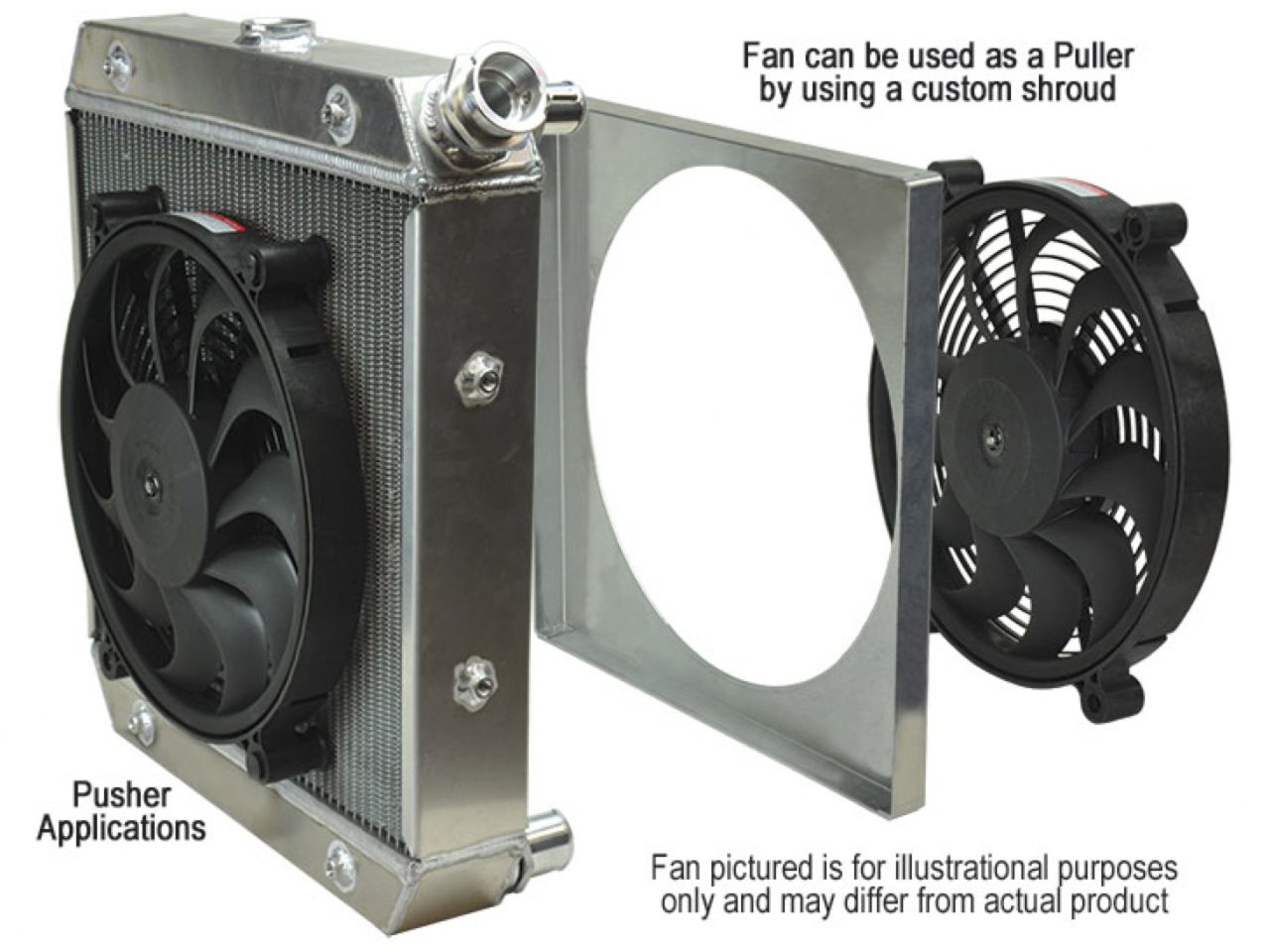

  • Mounts as Pusher (grill side)
  • Can be used in puller application when custom shroud is used (not included)
  • State-of-the-art symmetrical design
  • High Output 265 watt 2 speed motor (two separate turn-on sources required for 2 speed operation)
  • 2400 CFM on high speed / 1800 CFM on low speed
