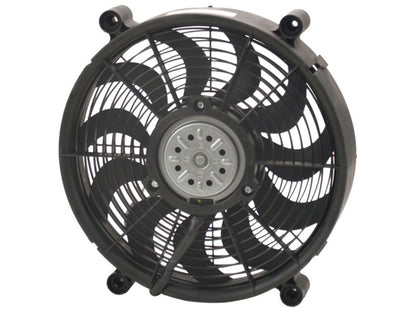

Derale 14 High Output Pusher/Drop-in Electric Fan

Derale 14 High Output Pusher/Drop-in Electric Fan

sku: 144E5 | mpn: 16913
$229.88
$229.88 $229.88
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

This 14" High Output Single RAD fan is a self-shrouded, symmetrical design with four molded mounting points. Motivated by a 2-speed 265 watt Bosch motor driving 11 patented skewed blades, it can be used as a pusher or puller fan without changing direction of the unit. Moves up to 2100 CFM while drawing up to 22 amps.

Specifications
  • CFM high/low: 2100/1500
  • Amp draw high/low: 22/16.2

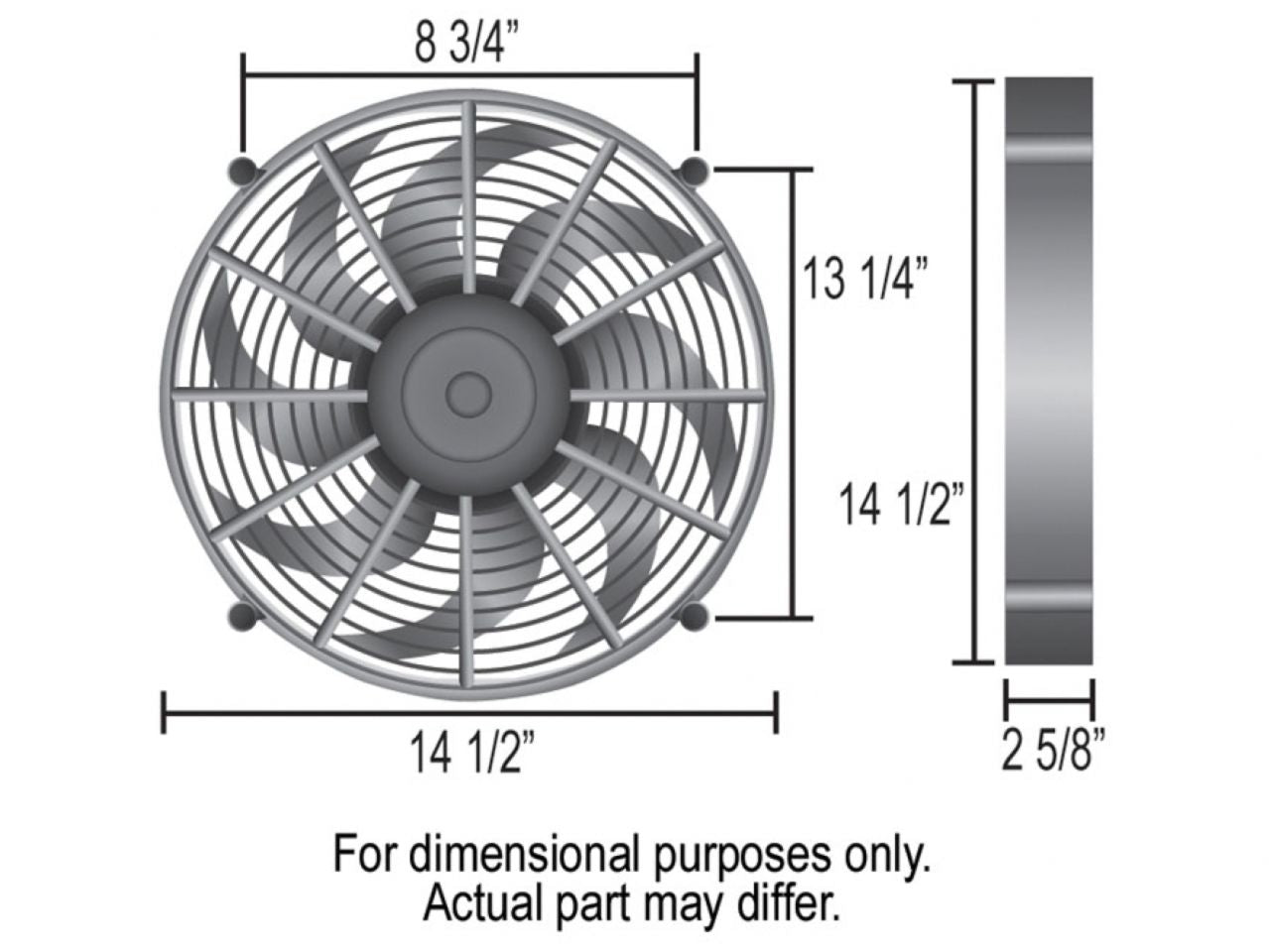

  • Width: 14-1/2"
  • Height: 14-1/2"
  • Depth: 1-5/8"
  • Overall depth: 2-5/8"
  • Mounting: 8-3/4" x 13-1/4"
Features

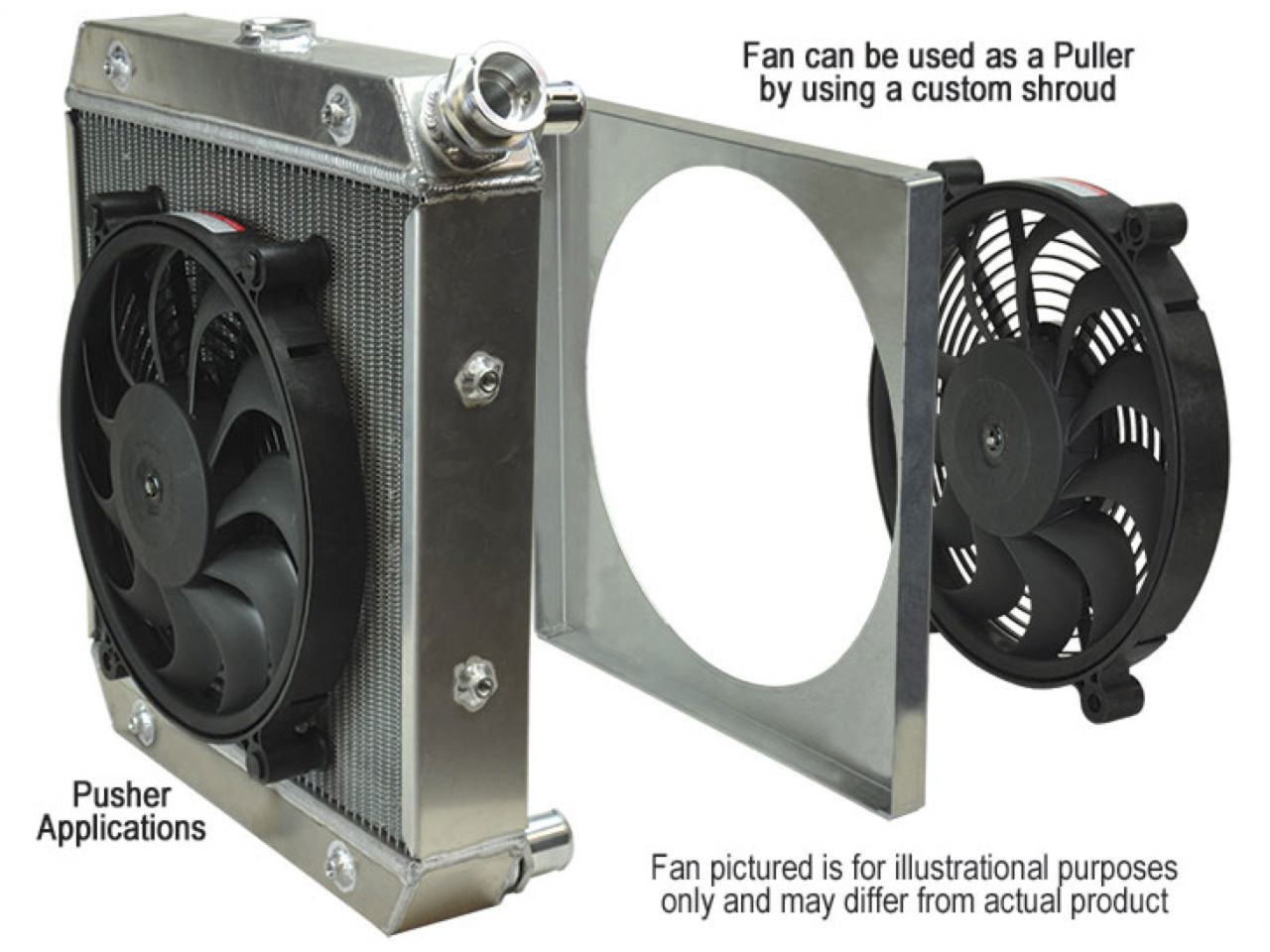

  • Mounts as Pusher (grill side)
  • Can be used in puller application when custom shroud is used (not included)
  • State-of-the-art symmetrical design
  • High Output 265 watt 2 speed motor (two separate turn-on sources required for 2 speed operation)
  • 2100 CFM on high speed / 1500 CFM on low speed
  • Ultra-quiet patented skewed blade design
