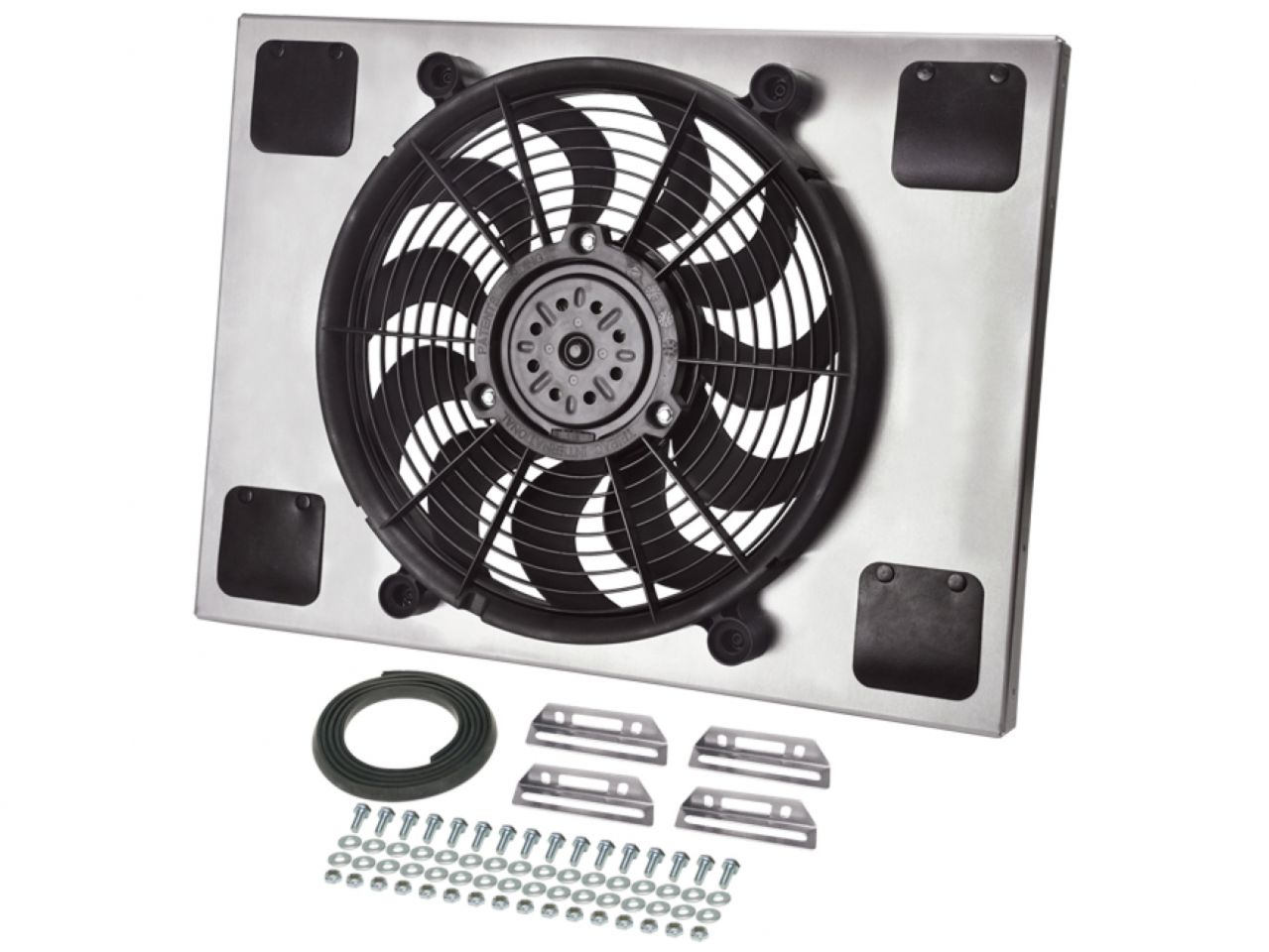

Derale RAD Fan/Aluminum Shroud Assembly
This High Output Single RAD Fan is part of the HO Aluminum Shrouded Fans Series designed with popular applications in mind. This assembly measures 23 7/16" wide by 15 7/16" top to bottom and only 2 3/4" thick to offer a yet precision fit. The raw aluminum shroud gives the user the freedom to polish, anodize, paint, or simply leave it natural to create a truly custom look for an affordable price. The 14" high output two speed fan is one of the best in our line-up offering 2100 CFM when on high to create the most airflow possible in a compact size.
Specifications
- CFM high/low: 2100/1500
- Amp draw high/low: 22/16.2

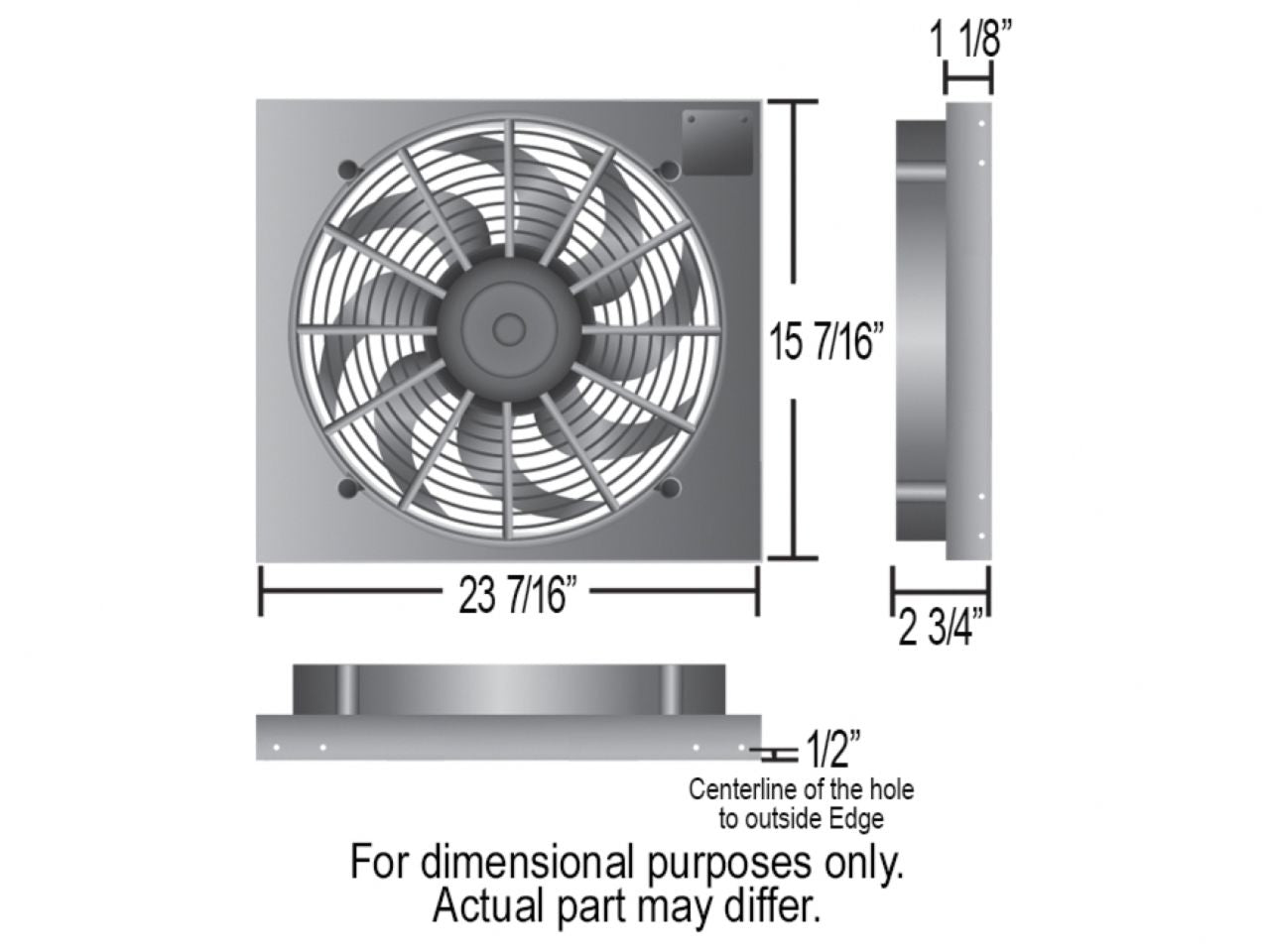

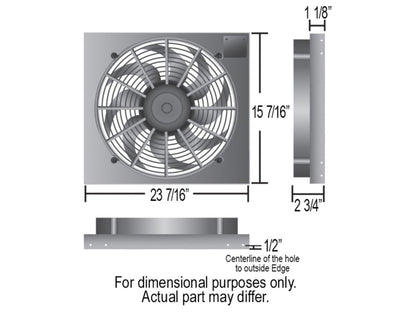

- Width:23 7/16"
- Height: 15-7/16"
- Shroud Depth: 1 1/8"
- Overall depth: 2 3/4"
- Mounting Hole(s) center to outside edge: 1/2"
Features
- Designed for primary cooling
- Raw aluminum shroud construction can be polished, painted or anodized
- High Output 265 watt 2-speed motor
- 2100 CFM
- Ultra-quiet patented skewed blade design
- Puller (engine side) applications only
- Kit includes mounting brackets and complete mounting hardware
Derale RAD Fan/Aluminum Shroud Assembly
Sale price$272.99 USD
