Derale 10 Dyno-Cool Straight Blade Elec. Fan w/T-Stat

SKU: 144CL | MPN:  16310
Sale price$89.80 USD Regular price$112.25 USD
Sold out

Our 10" straight blade electric fan moves 500 CFM at 0 static pressure, drawing only 6.4 amps. Kit includes fan, mounting kit and mechanical fan controller with adjustable turn on temp between 32°F-240°F with turn off set at 10°F below turn on. Uses a capillary tube radiator hose probe design.

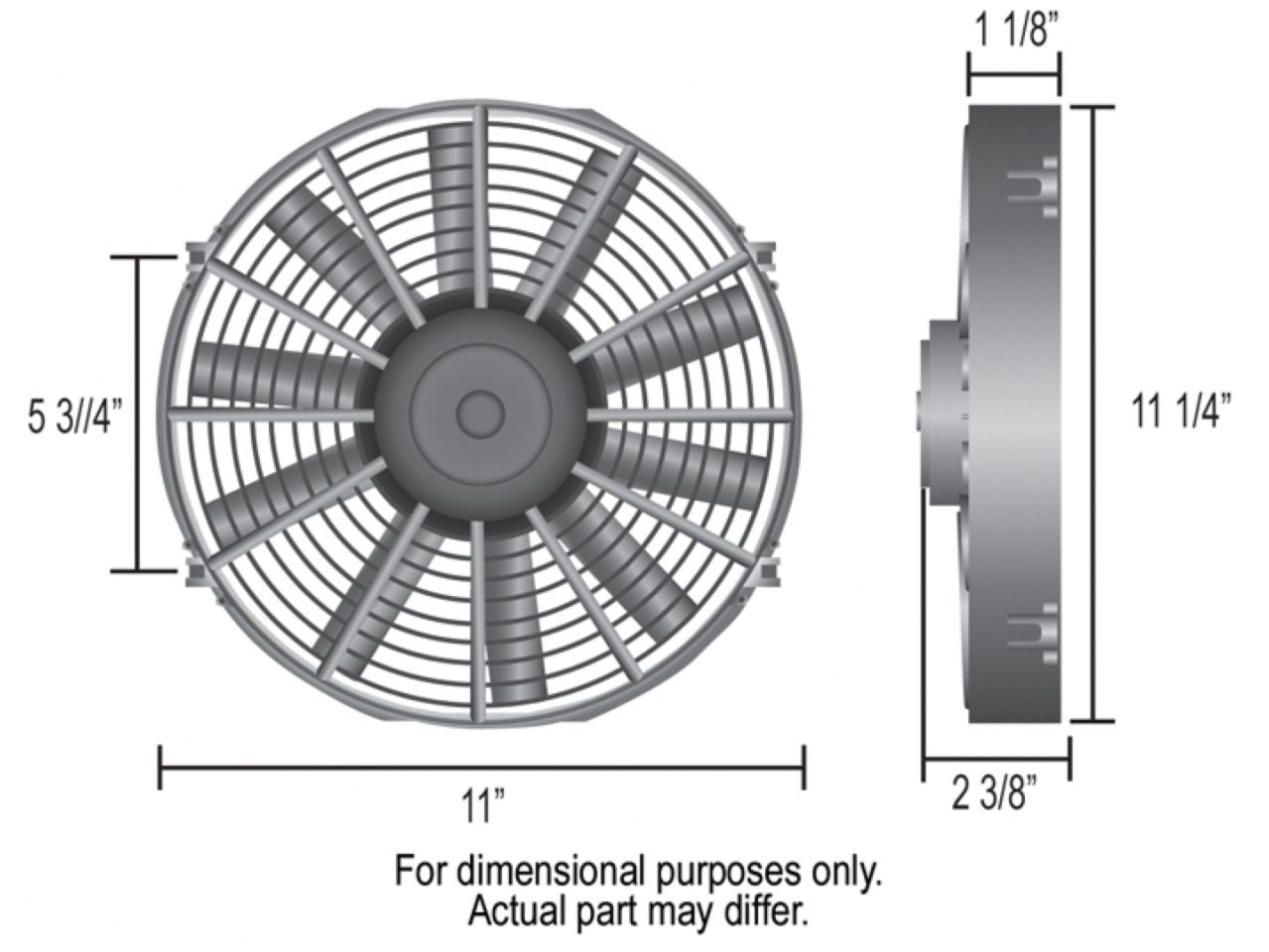

Specifications
  • Fan size: 10"
  • CFM: 500
  • Amp draw: 6.4
  • Width: 11"
  • Height: 11-1/4"
  • Depth: 1-1/8"
  • Overall depth: 2-3/8"
  • Mounting: 5-3/4"
  • Airflow: Puller (reversible)
Features
  • Ultra low profile design
  • Straight fan blades
  • 500 CFM
  • Reversible design - can be used as a pusher or puller

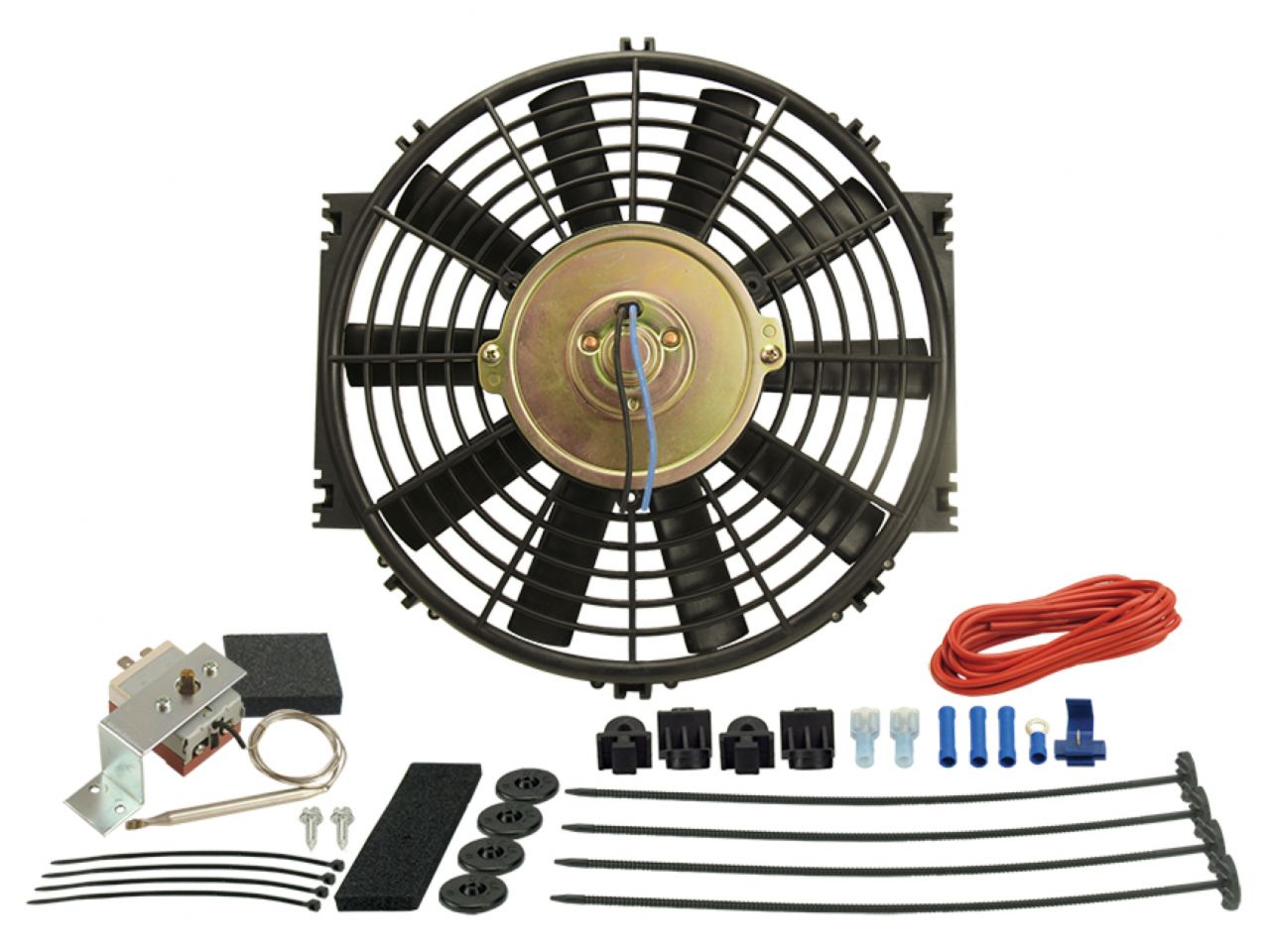

  • Complete fan control kit includes 180° thermostat with both thread-in water jacket probe and push-in radiator probe, relay wire harness, all mounting hardware and wire connections
