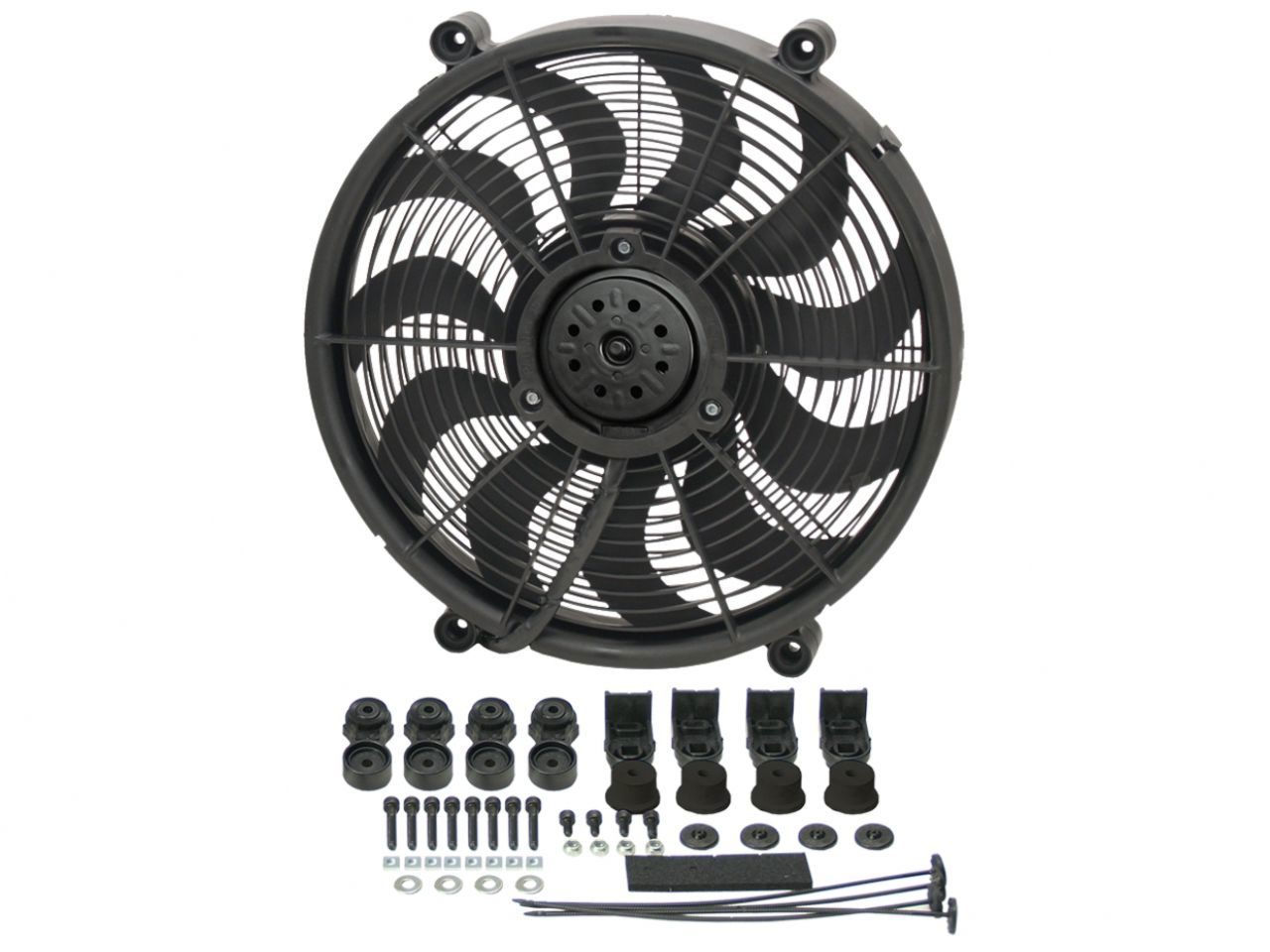

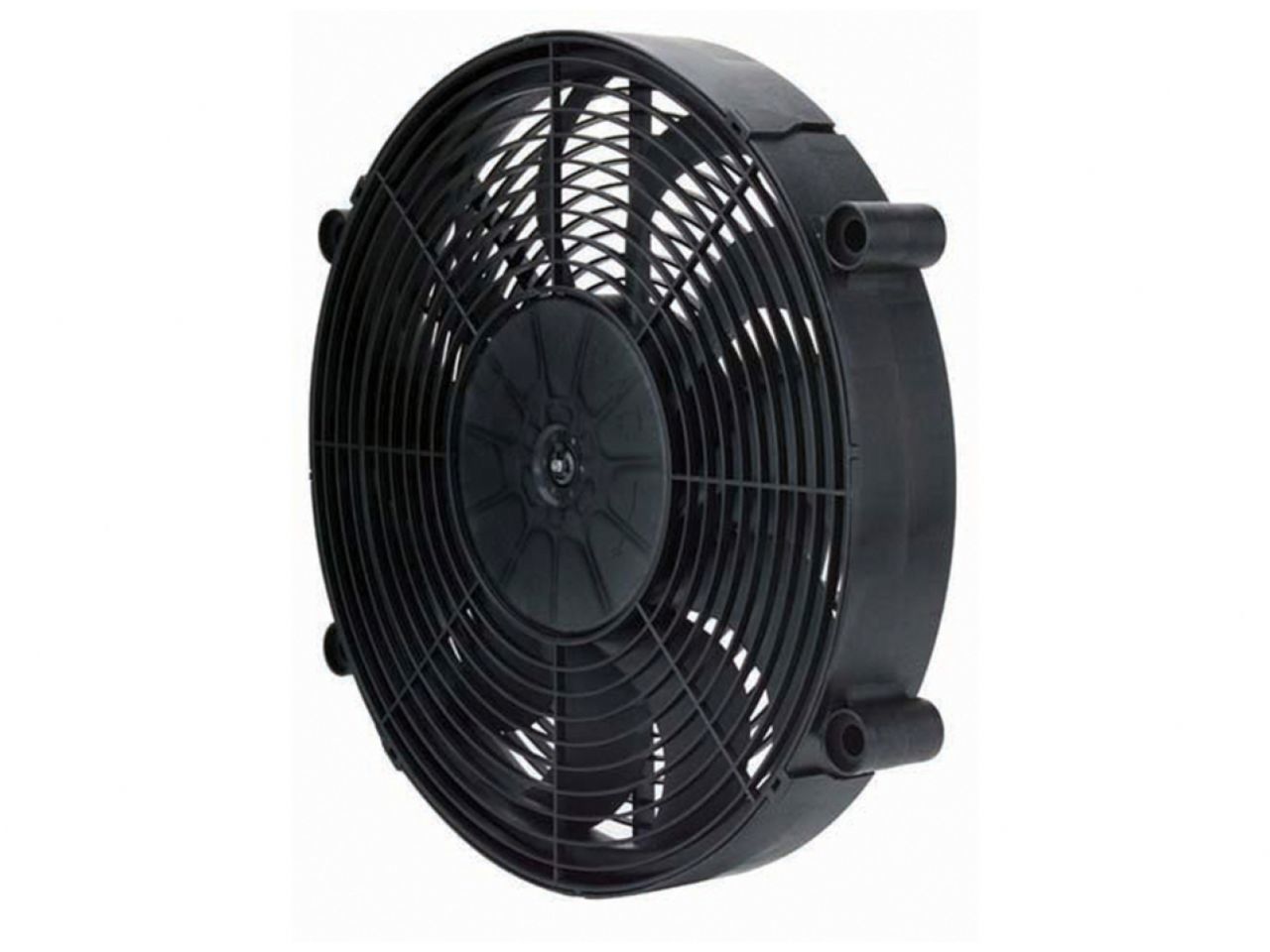

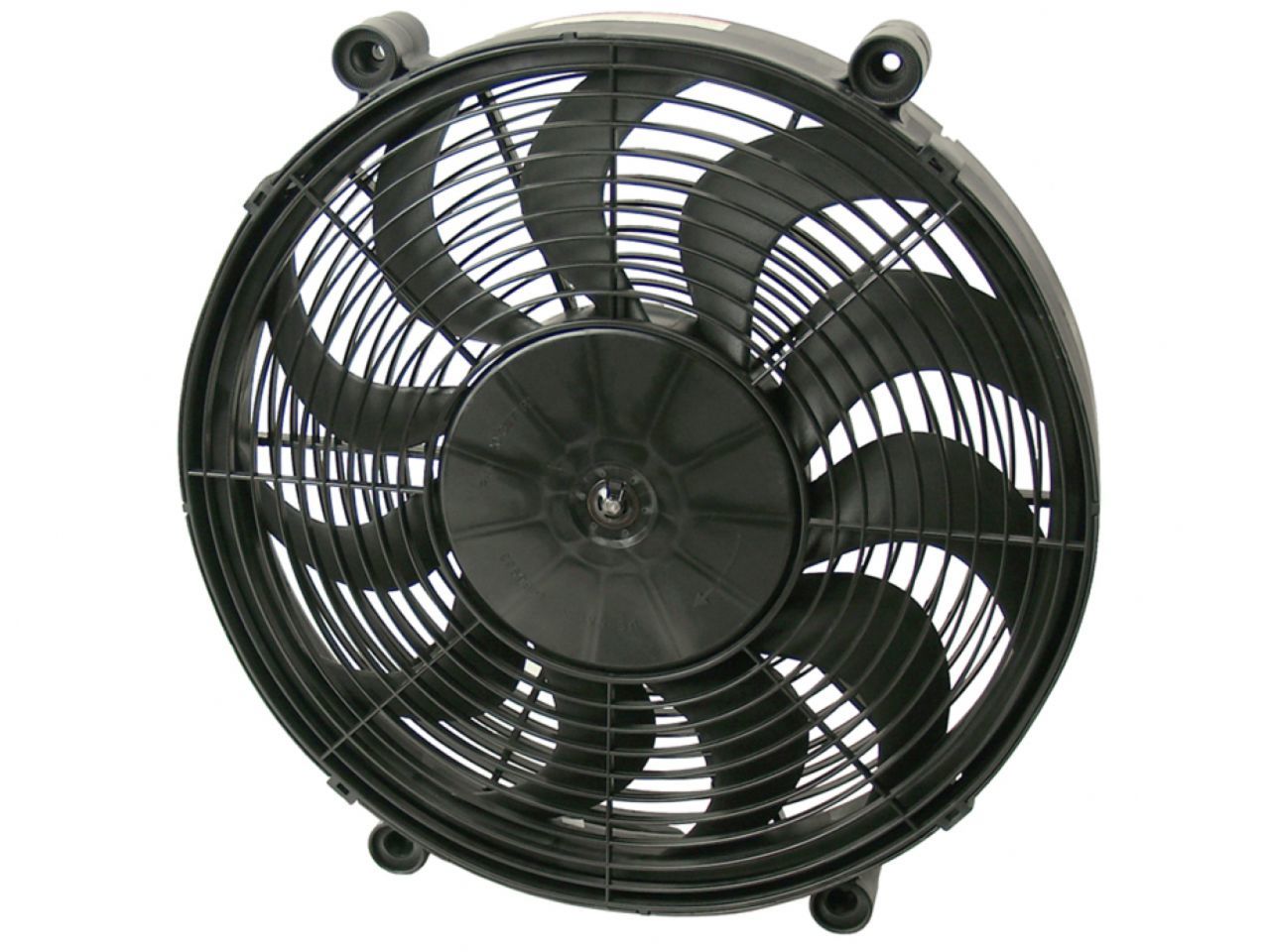

17 High Output RAD Fan with Premium Mount Kit
The most popular, this 17" High Output Single RAD fan is a self-shrouded, symmetrical design with four molded mounting points. Motivated by a 2-speed 265 watt Bosch motor driving 11 patented skewed blades, each includes a patented ratchet mounting system for a professional installation. Can be used as a pusher or puller fan by simply flipping brackets without changing direction of the unit. Moves up to 2400 CFM while drawing up to 23.5 amps.
Specifications
- CFM high/low: 2400/1800
- Amp draw high/low: 23.5/17.4

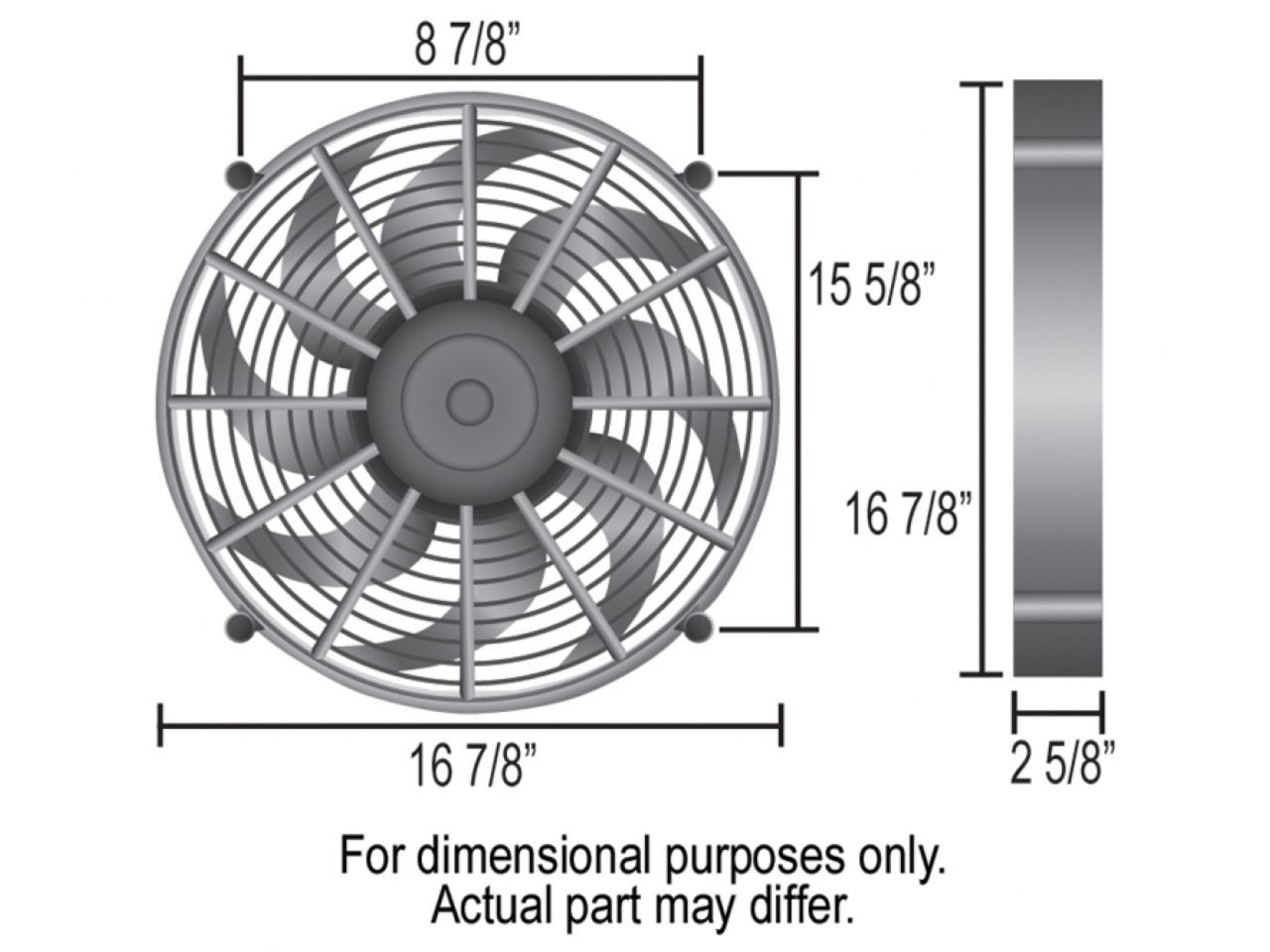

- Width: 16-7/8"
- Height: 16-7/8"
- Depth: 2-5/8"
- Mounting: 8-7/8" x 15-5/8"
Features
- Mounts as a Pusher or Puller without flipping blade or switching motor leads
- State-of-the-art symmetrical design
- High Output 265 watt 2 speed motor (two separate turn-on sources required for 2 speed operation)
- 2400 CFM on high speed / 1800 CFM on low speed
- Ultra-quiet patented skewed blade design
- Patented ratchet mounting system
