Derale 25 Row Hyper-Cool Transmission Cooler Kit, -8AN
25 Row Hyper-Cool Transmission Cooler Kit, -8AN
Description

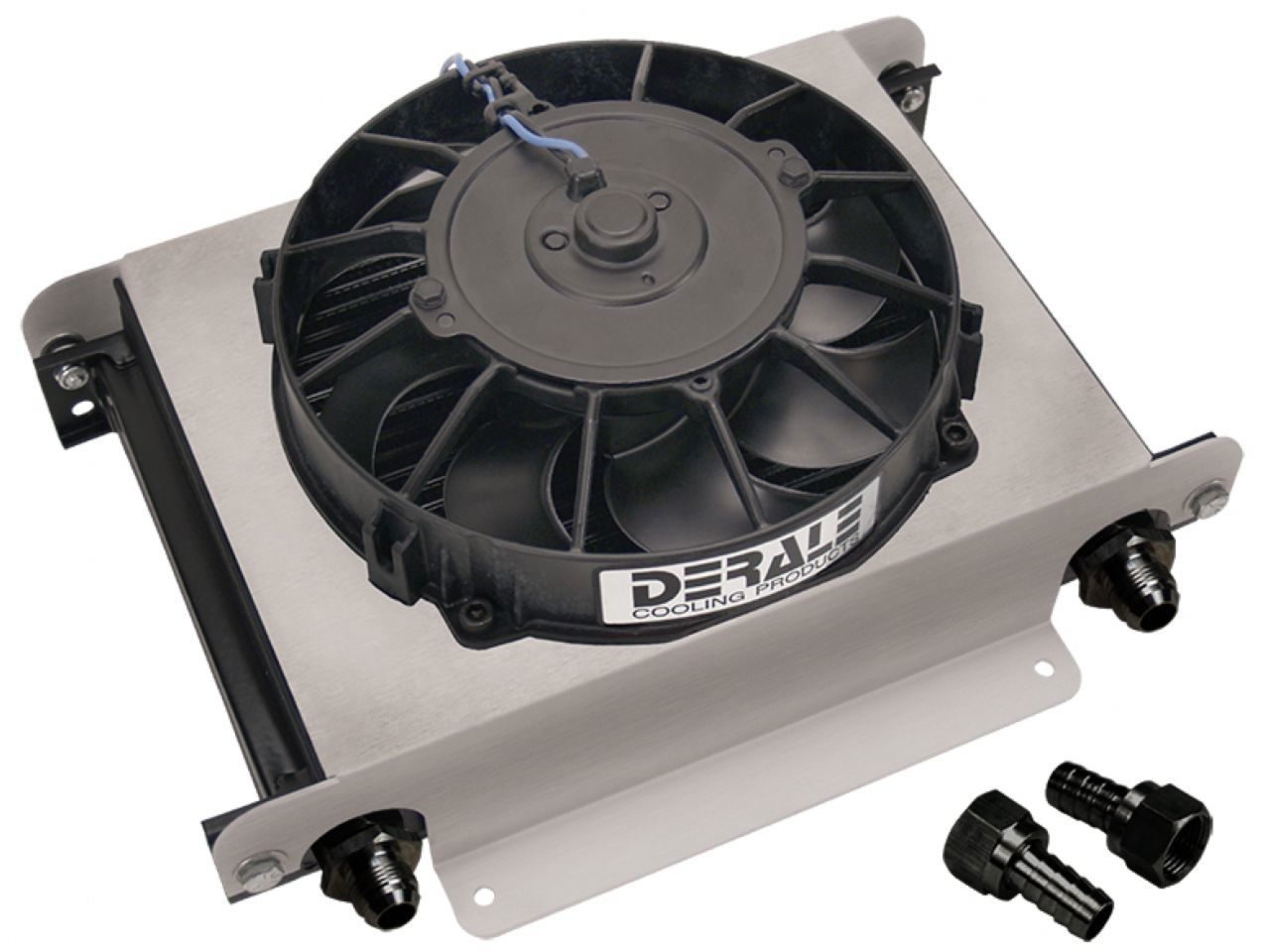

Equipped with our top-of-the-line 25 row stack plate cooler, the Hyper-Cool remote transmission cooler can literally be mounted almost anywhere. Making it a popular addition for performance cars, hot rods, muscle cars and trucks. With an all-aluminum oven-brazed Stack Plate cooler coupled with a Tornado fan and aluminum shroud, this kit comes with a complete installation kit to install easily on all vehicles with 1/2" transmission cooler lines. Also included is an 180°F in-line thermostat for activating the electric fan. The Hyper-Cool is perfect for extreme duty towing and hauling and can add years to the life of your transmission.
Specifications
- Cooler style: Stacked Plate
- Inlet size: -10AN / 7/8"-14 o-ring female x -8AN male
- Fan size: 8"
- CFM: 500
- Amp draw: 4.8

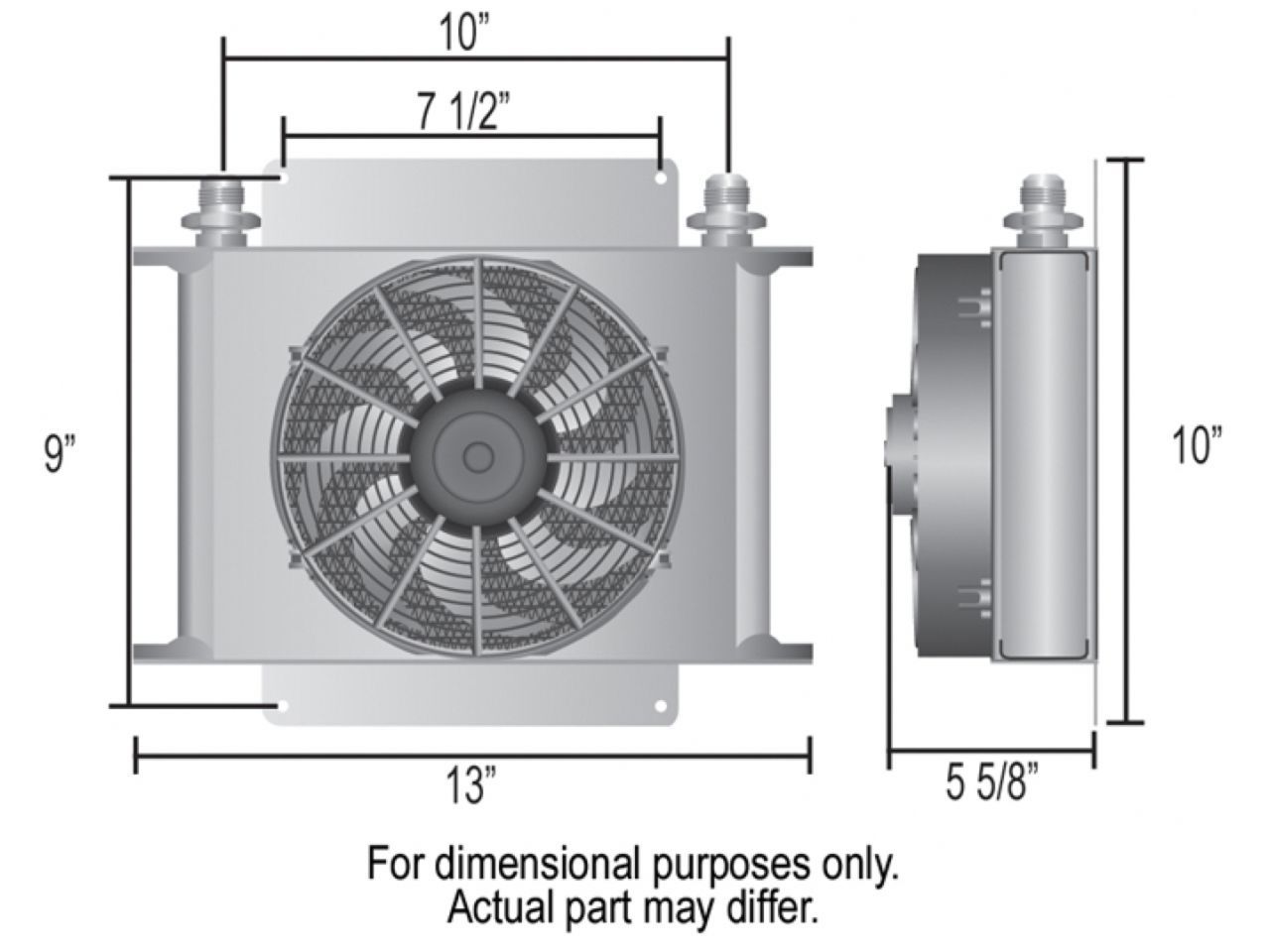

- Width: 13"
- Height: 10"
- Depth: 5-5/8"
- Inlet dim: 10"
- Mounting: 7-1/2" x 9"
- Hose size: 1/2"
- Hose length: 10'
- 46,000 BTU's Per Hour
Features
- Mounts anywhere space permits
- Electric fan supplies optimum airflow
- Dramatically extends engine and transmission life
- High efficiency Stacked Plate 10000 Series cooler
- Clear anodized aluminum shroud
- 500 CFM Tornado electric fan
- -8AN inlet size
- All Derale coolers are rated at 250psi working pressure and 300psi burst strength

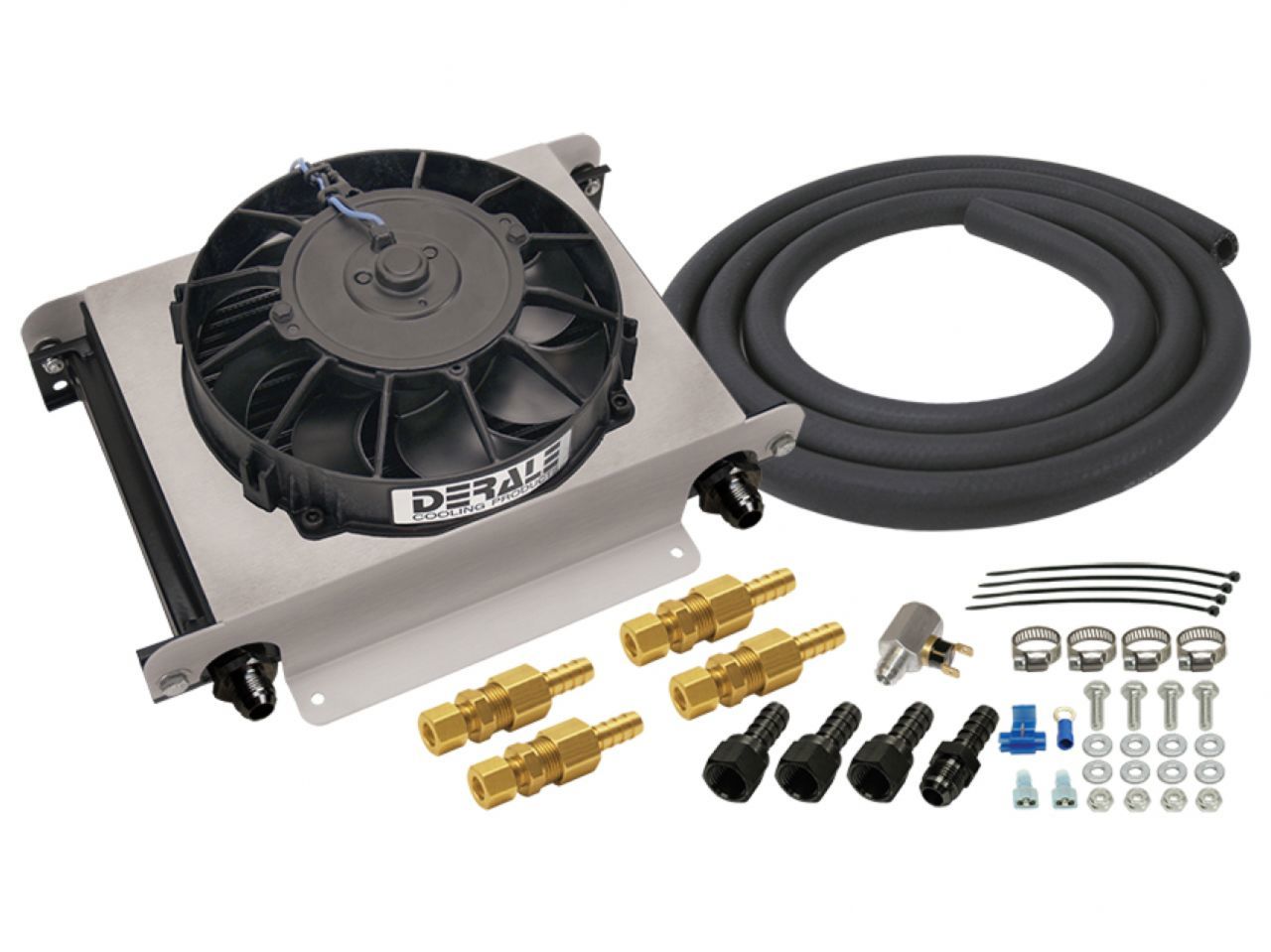

- Transmission cooler kit includes fan mounted cooler, 2 aluminum -8AN fittings and 4 aluminum -8AN x 1/2" hose barb fittings, 180°F In-line thermostat, 10 ft. of OEM spec hose, 1/2" compression fittings, and mounting hardware
Derale 25 Row Hyper-Cool Transmission Cooler Kit, -8AN
Sale price$371.65 USD
