Derale Hyper-Cool Cooler (-8AN)

SKU: 144K1 | MPN:  15860
Only 6 units left
Sale price$314.99 USD

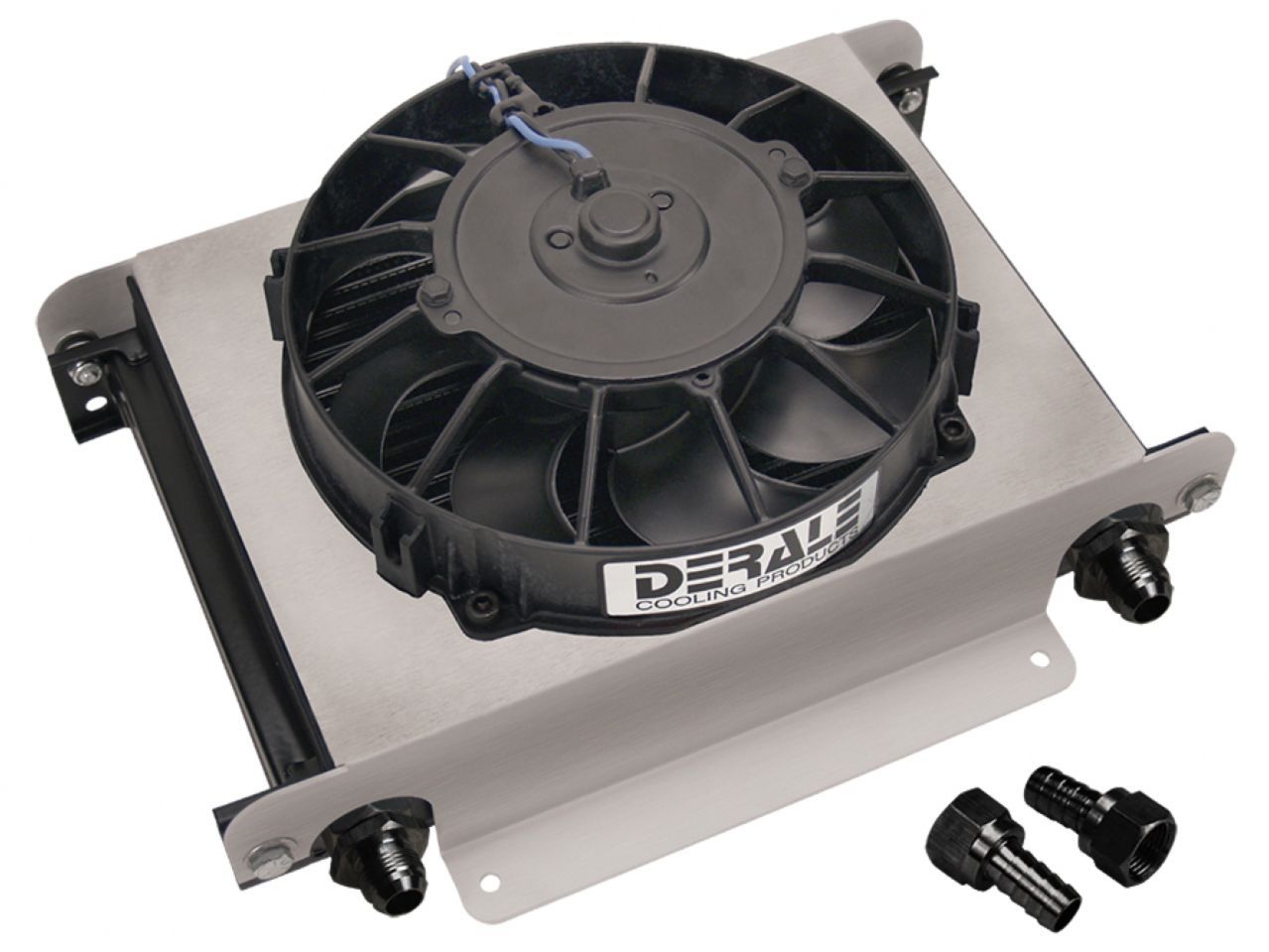

Equipped with our top-of-the-line 25-row stack plate cooler, the Hyper-Cool remote fluid cooler can literally be mounted almost anywhere, making it a popular addition for serious performance cars, hot rods, muscle cars and trucks. With an all-aluminum, oven-brazed Stack Plate cooler coupled with a Tornado fan and aluminum shroud, it comes with aluminum -8AN male fittings and brass -8AN x 1/2" barb adapters to provide serious cooling in a small package. This cooler was designed primarily for engine oil applications, but also can be used for heavy-duty transmission or fuel cooling. The Hyper-Cool is perfect for extreme duty applications.

Specifications
  • Cooler style: Stacked Plate
  • Inlet size: -10AN / 7/8"-14 o-ring female x -8AN male
  • Fan size: 8"
  • CFM: 500
  • Amp draw: 4.8

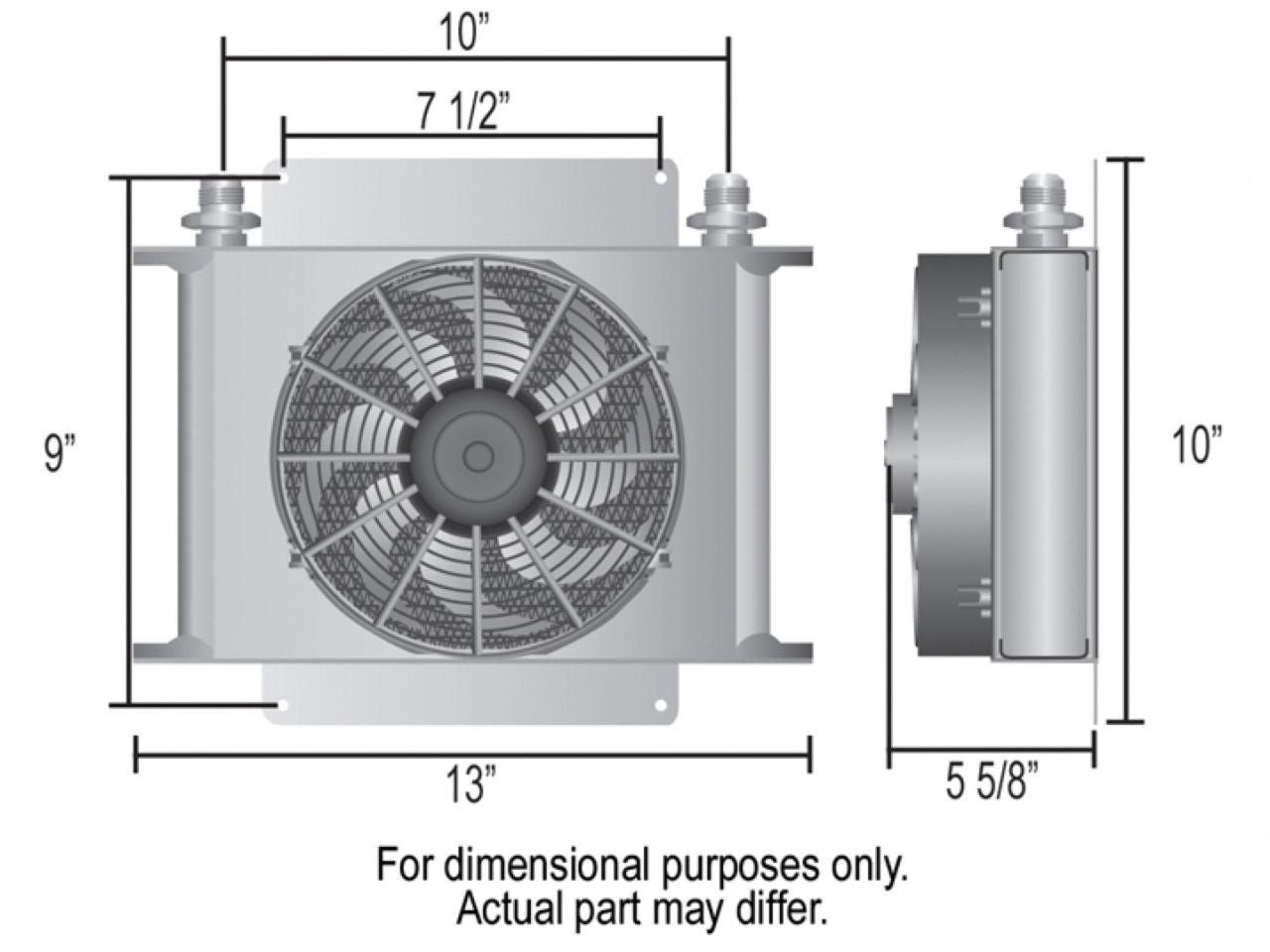

  • Width: 13"
  • Height: 10"
  • Depth: 5-5/8"
  • Inlet dim: 10"
  • Mounting: 7-1/2" x 9"
  • Barb size: 1/2"
  • 46,000 BTU's Per Hour
Features
  • Mounts anywhere space permits
  • Electric fan supplies optimum airflow
  • Dramatically extends engine and transmission life
  • High efficiency Stacked Plate cooler
  • Clear anodized aluminum shroud
  • 500 CFM reversible Tornado electric fan
  • -8AN inlet size
  • 46,000 BTU's Per Hour
  • Cooler assembly includes fan mounted cooler, two aluminum -8AN fittings and two -8AN x 1/2" hose barb fittings
